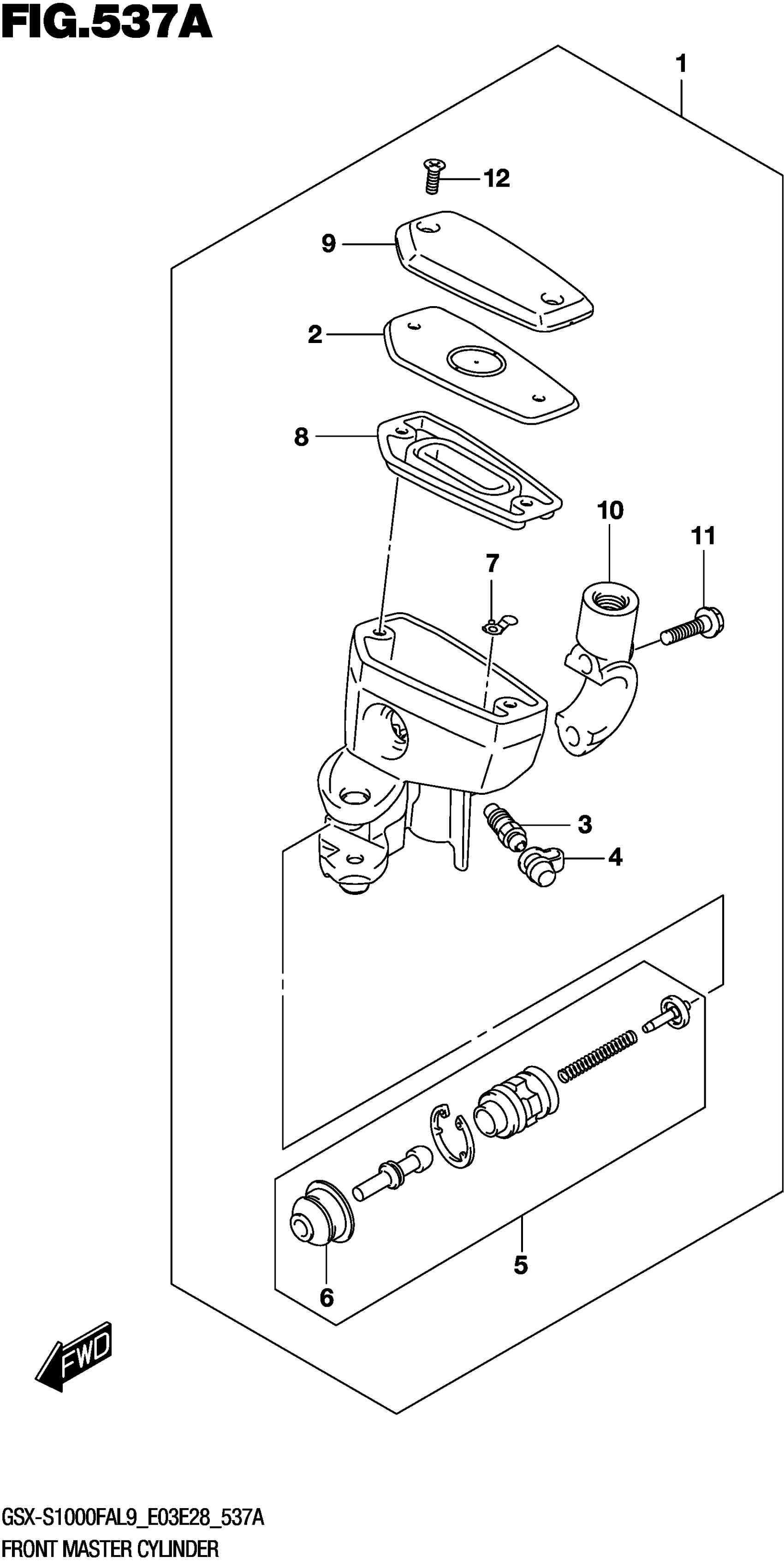

Suzuki GSX-S1000FAL9 (2019) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER

59600-23H20

$245.22

2

.PLATE

57437-23H00

$9.58

3

.BLEEDER

59121-01A00

$8.73

4

.CAP,BLEEDER

59122-46H00

$4.43

5

.PISTON/CUP SET

59600-29821

$71.72

6

..BOOT

59666-29G00

$12.35

7

.PROTECTOR

59664-32F00

$11.68

8

.DIAPHRAGM,R This part replaces 59667-23H00.

59667-23H10

$10.82

9

.CAP, RESERVOIR

59669-23H20

$32.70

10

.HOLDER

59671-32F00

$19.52

11

.BOLT (6X22)

59675-02FA0

$3.82

12

.SCREW

69689-49300

$1.91

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FAL9 E03

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FAL9 E28

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FAL9 E33

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FYAL9 E03

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FYAL9 E28

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FYAL9 E33

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FZAL9 E03

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FZAL9 E28

SPECIAL NOTE

Unavailable

13

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | GSX-S1000FZAL9 E33

SPECIAL NOTE

Unavailable
