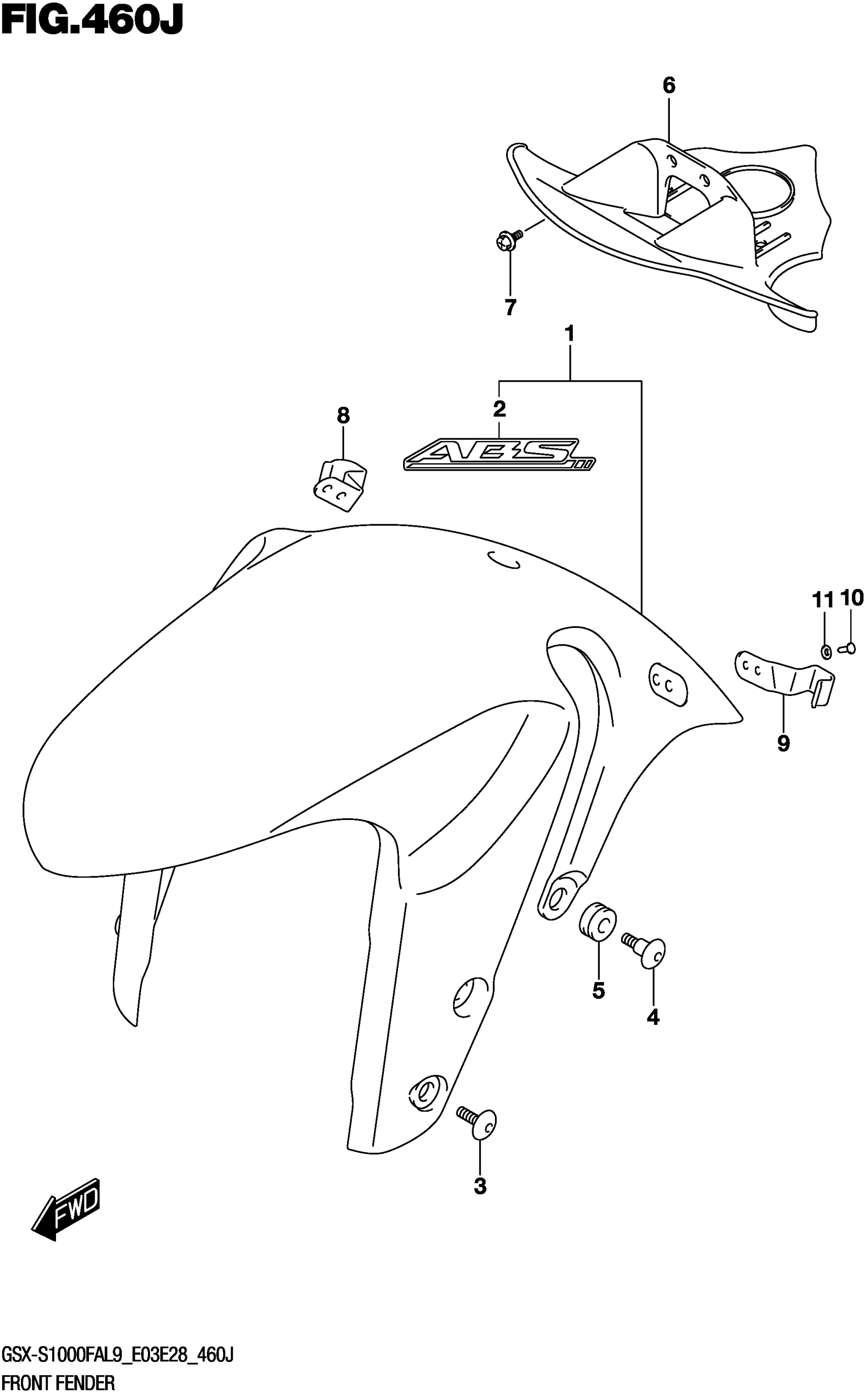

Suzuki GSX-S1000FAL9 (2019) FRONT FENDER (GSX-S1000FZAL9 E33) Diagram

#

Description

Price

1

FENDER ASSY,FRONT (BLACK) This part replaces 53100-04K50-YKV.

53100-04K51-YKV

$189.78

2

.EMBLEM,ABS (GRAY,BLACK) This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$12.32

3

SCREW (6X16) | FRONT

09139-06169

$3.10

4

SCREW (6X20) | REAR

09139-06190

$4.17

5

CUSHION (9X18X9.5) | REAR

09320-09016

$1.97

6

COVER,LWR BRACKET

94458-04K00

$18.08

7

BOLT (6X12)

09111-06107

$2.60

8

CLAMP, BRAKE HOSE RH

53117-04K00

$5.02

9

CLAMP, BRAKE HOSE LH

53118-04K00

$5.02

10

RIVET

09229-04038

$1.49

11

WASHER

08322-0104B

$1.49
