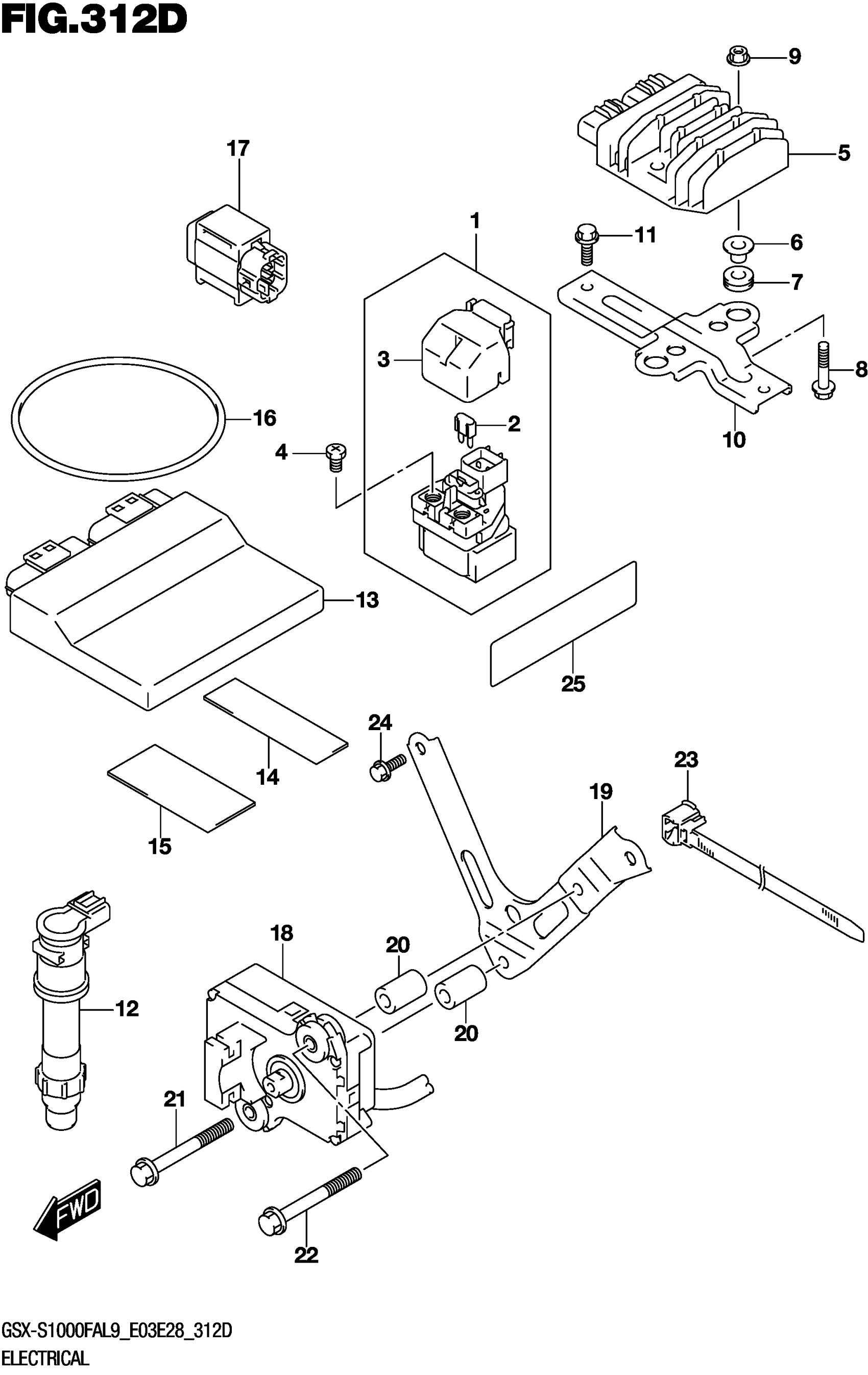

Suzuki GSX-S1000FAL9 (2019) ELECTRICAL GSX-S1000FYAL9 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

2

.FUSE (30A)

09481-30501

$2.32

3

.COVER

31861-38G00

$4.88

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-26J02

$262.27

6

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

7

CUSHION (8X18X10)

09320-08501

$3.23

8

BOLT

01550-0635A

$2.32

9

NUT (6X12)

08316-1006A

$2.19

10

BRACKET,ELECTRIC PARTS

47431-04K01

$14.88

11

BOLT

01550-0612A

$1.97

12

COIL ASSY, IGNITION

33410-47H00

$150.98

13

CONTROL UNIT,FI This part replaces 32920-38K50.

32920-38K51

$1,413.80

14

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

15

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.64

16

O-RING (D:3.5,ID:85)

09280-85001

$3.58

17

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

18

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G00.

33970-48G02

$409.57

19

BRACKET, ACTUATOR

47420-04K00

Unavailable

20

SPACER (6.2X14.5X26)

09180-06345

$10.28

21

BOLT

01550-0650A

$2.85

22

BOLT

01550-0655A

Unavailable

23

CLAMP

09407-14413

Unavailable

24

BOLT

01547-0612A

$2.03

25

TAPE,SEAT LOWER COVER

45414-38G00

Unavailable
