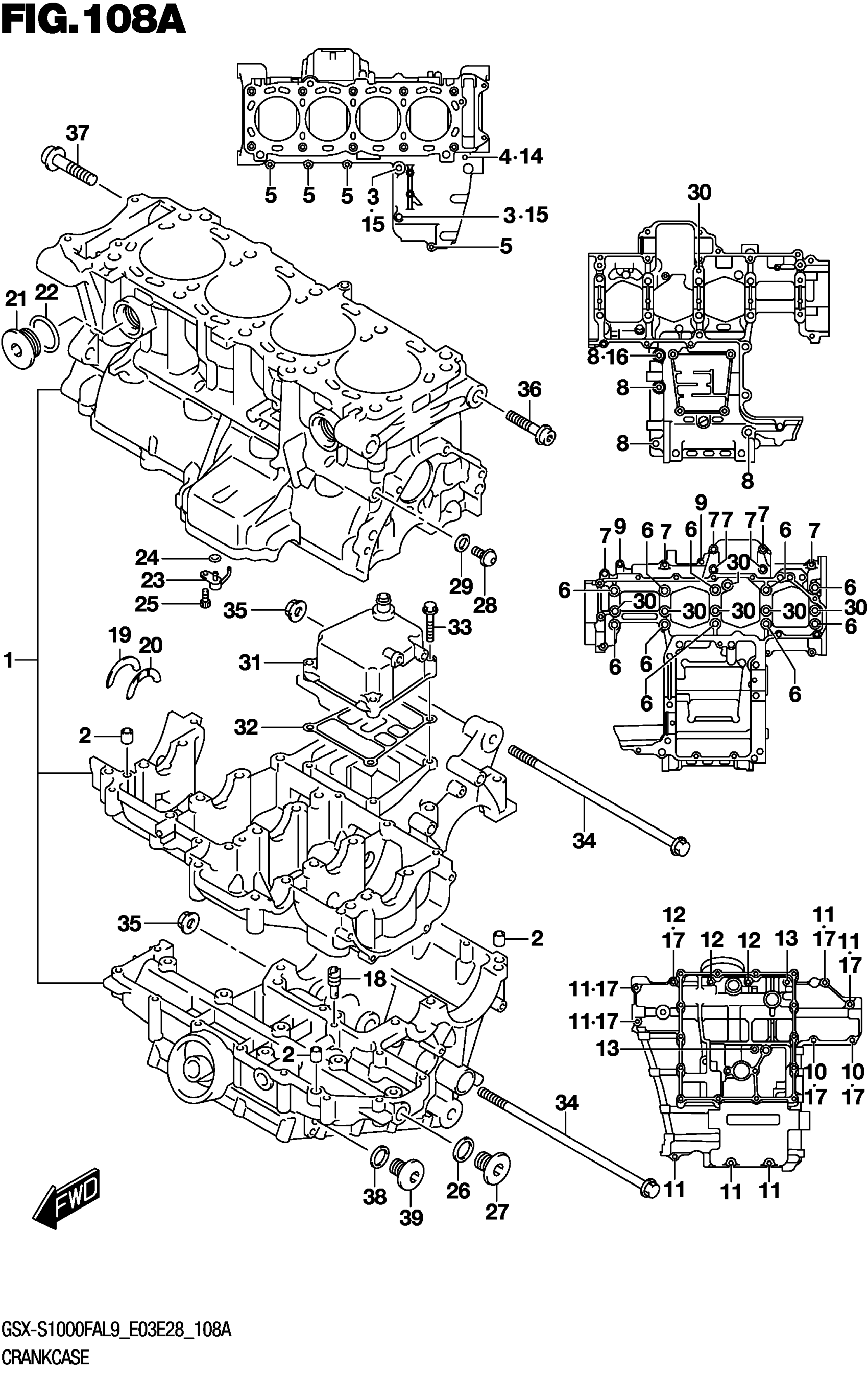

Suzuki GSX-S1000FAL9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-04840

$4,574.62

2

PIN,CRANKCASE

11319-33E50

$5.23

3

.BOLT (8X120)

09106-08198

Unavailable

4

.BOLT

01547-0680A

$3.58

5

BOLT

01547-0640A

$2.38

6

.BOLT (9X95)

09103-09012

$8.18

7

.BOLT (8X55)

09103-08339

$3.29

8

.BOLT

07120-0865A

$5.17

9

BOLT

01547-0640A

$2.38

10

BOLT

01547-0630A

$2.38

11

BOLT

01547-0640A

$2.38

12

BOLT

01547-0660A

$2.80

13

.BOLT

01547-0670A

$2.80

14

GASKET (5.8X13X1.2)

09168-06023

$2.09

15

GASKET (8.2X14X1)

09168-08016

$1.70

16

GASKET (8.2X14X1)

09168-08016

$1.70

17

GASKET (5.8X13X1.2)

09168-06023

$2.09

18

JET (#140)

09493-28012

$18.33

19

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.20

20-1

.BEARING,CRANK THRUST

12228-48B00-0B0

$13.05

20-2

.BEARING,CRANK THRUST

12228-48B00-0C0

$12.82

20-3

.BEARING,CRANK THRUST

12228-48B00-0D0

$13.30

20-4

.BEARING,CRANK THRUST

12228-48B00-0E0

$9.20

20-5

.BEARING,CRANK THRUST

12228-48B00-0F0

$13.30

20-6

.BEARING,CRANK THRUST

12228-48B00-0G0

$13.30

20-7

.BEARING,CRANK THRUST

12228-48B00-0H0

$9.50

21

.PLUG,WATER JACKET

11318-35F00

$18.93

22

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.98

23

JET, PISTON COOLING

11390-21H01

$48.75

24

O-RING (D:1.2,ID:4)

09280-04004

$1.76

25

BOLT (6X12)

09106-06075

$2.58

26

GASKET (16X22X2)

09168-16002

$1.97

27

PLUG (16X12)

09248-16013

$4.56

28

PLUG (10X10)

09248-10010

$3.96

29

GASKET (10X14X3.6)

09168-10002

$1.96

30

O-RING (D:1.9,ID:7.8)

09280-08012

$3.42

31

COVER, BREATHER

11370-04K00

Unavailable

32

.GASKET, BREATHER COVER

11484-35F00

$4.73

33

BOLT

01547-0630A

$2.38

34

BOLT (10X225)

09103-10205

$21.22

35

NUT (M10)

09159-10115

$3.31

36

BOLT (10X45)

09106-10069

$3.93

37

BOLT (10X55)

09106-10070

$3.93

38

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

39

PLUG (14X12)

09248-14011

$2.81
