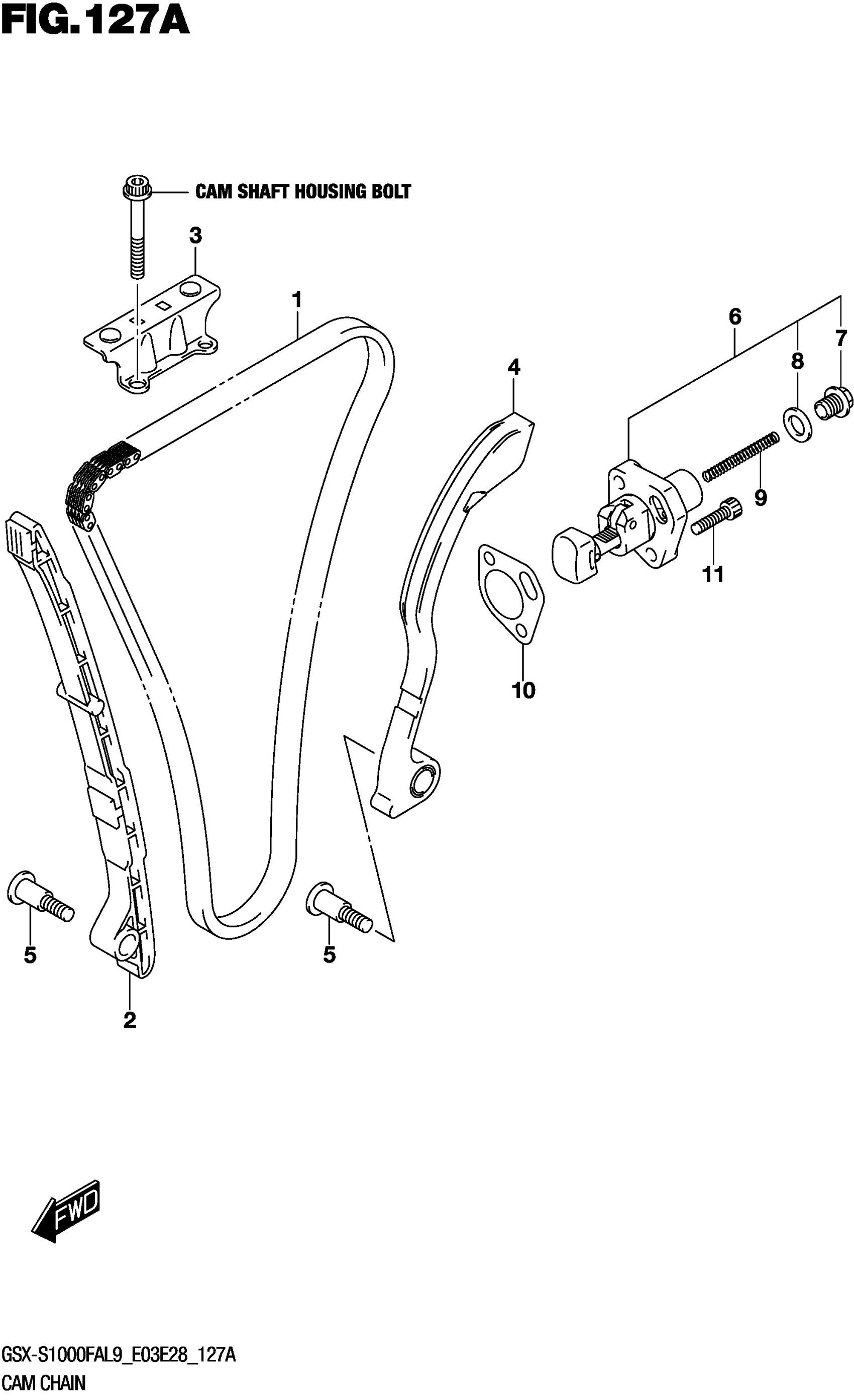

Suzuki GSX-S1000FAL9 (2019) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAMSHAFT DRIVE

12760-04K00

$150.22

2

GUIDE, CAM CHAIN NO.1 This part replaces 12771-21H00.

12771-21H01

$34.53

3

GUIDE,CAM CHAIN NO.2

12782-35F11

$22.44

4

TENSIONER,CAM CHAIN This part replaces 12811-21H00.

12811-21H01

$71.20

5

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.39

6

ADJUSTER ASSY,TENSIONER

12830-41G11

$141.12

7

.PLUG

12833-05A00

$21.62

8

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.57

9

SPRING

12831-41G00

$5.53

10

.GASKET,TENSIONER ADJUSTER

12837-18G00

$4.57

11

BOLT (6X25)

07130-0625A

$2.74
