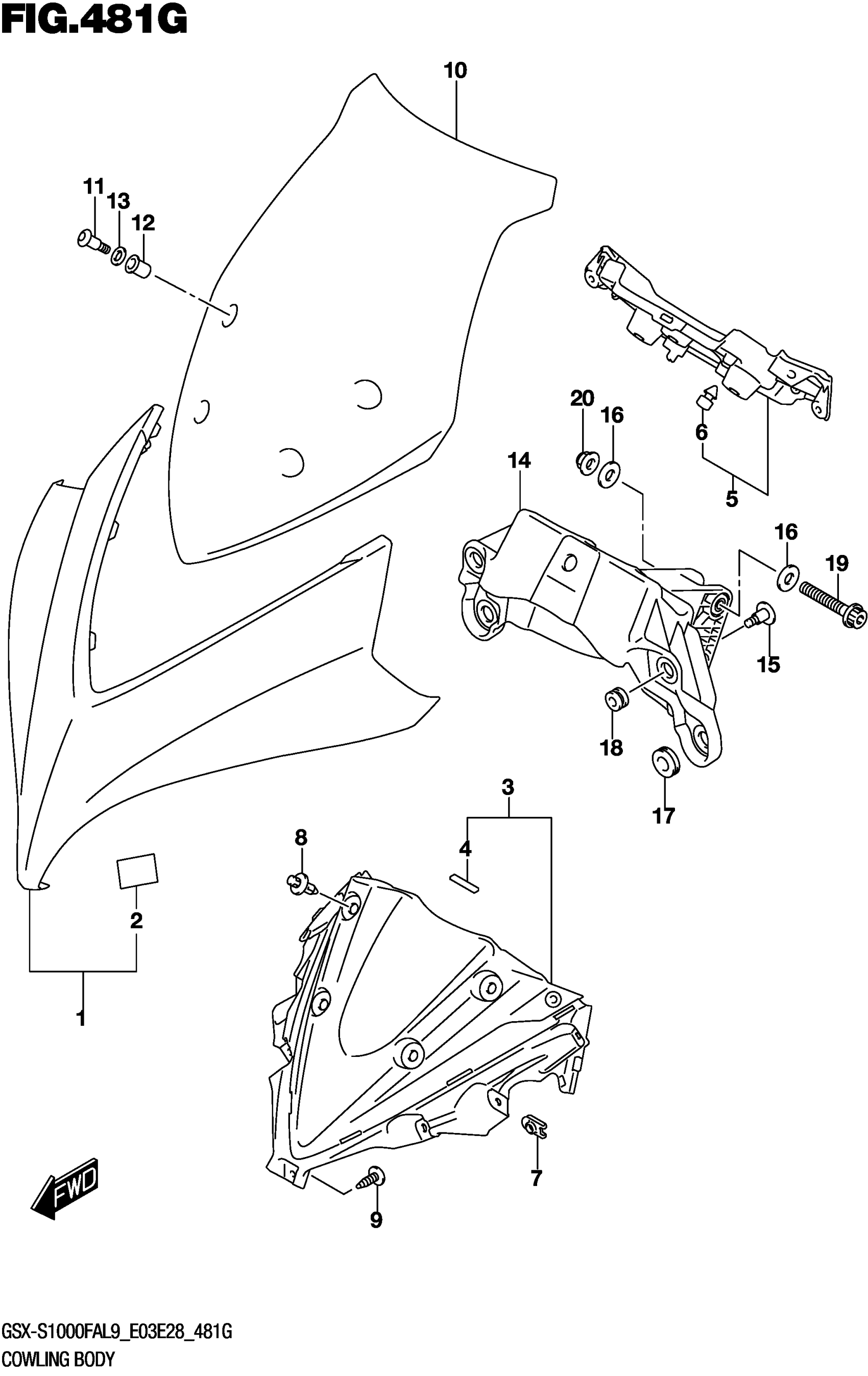

Suzuki GSX-S1000FAL9 (2019) COWLING BODY (GSX-S1000FZAL9 E03) Diagram

#

Description
Price

1

COWLING, BODY (BLACK)

94410-04K00-YKV

$241.97

2

FASTENER (25X33X2.6)

44572-02F01

$10.13

3

PANEL,METER FRONT

94640-04K00

$26.10

4

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

5

PANEL,METER REAR This part replaces 94650-04K00.

94650-04K10

$34.18

6

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

7

NUT

09148-06020

$4.01

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

9

SCREW

03541-0516A

$1.37

10

WINDSCREEN

94611-04K10

$152.35

11

SCREW

09139-05032

$2.00

12

NUT (M5)

09159-05019

$6.44

13

WASHER

09160-05048

$1.76

14

BRACE,COWLING

94510-04K00

$158.77

15

SCREW (6X20)

09139-06190

$3.77

16

WASHER (8.5X20X1.6) This part replaces 09160-08124.

09160-08054

$1.43

17

CUSHION (8X26X7)

09320-08028

$2.80

18

CUSHION (9X18X10)

09320-09501

$2.06

19

.BOLT

07120-0855A

$4.70

20

NUT

08313-2008A

$2.50
