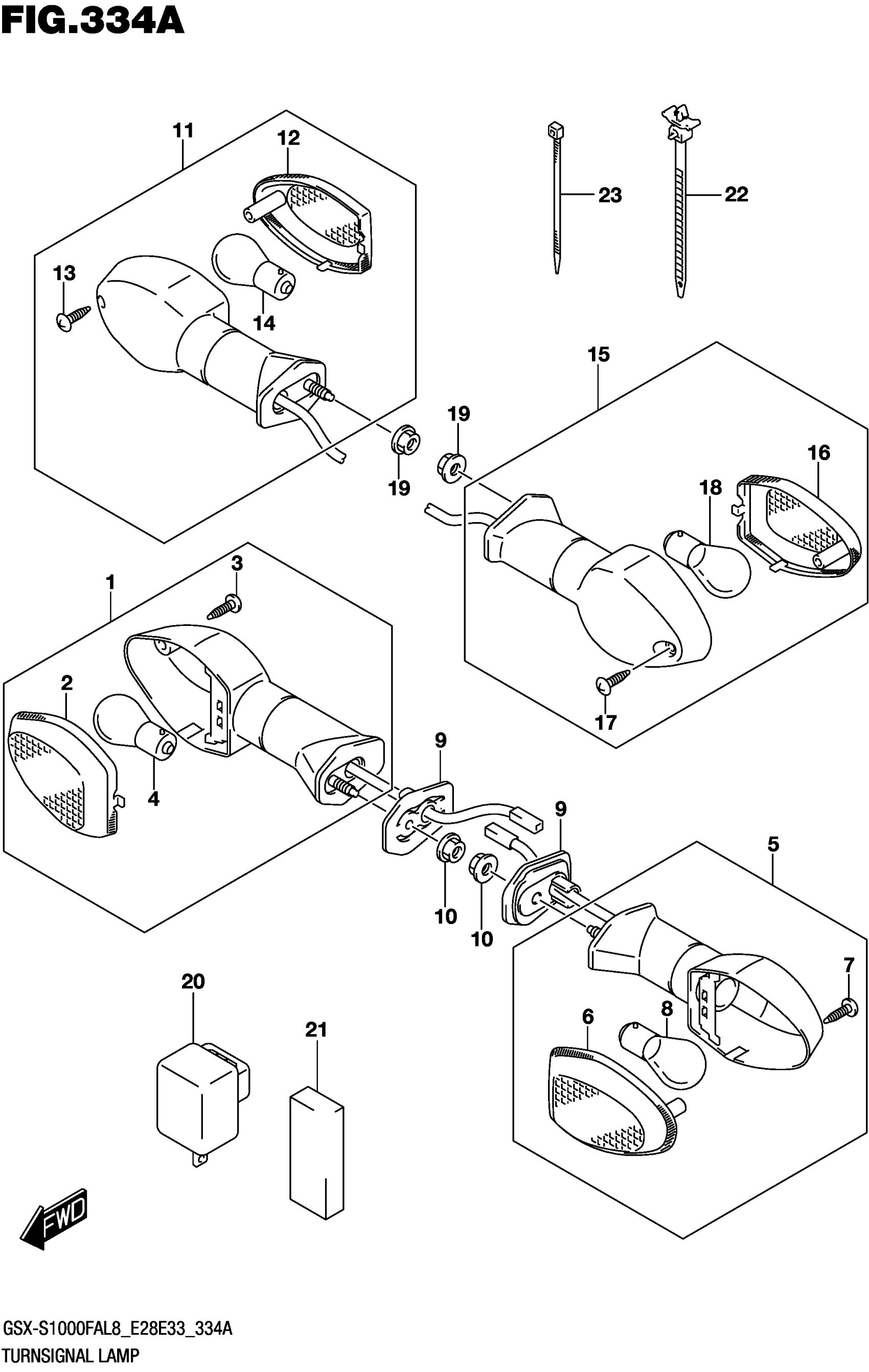

Suzuki GSX-S1000FAL8 (2018) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-08J01

$95.40

2

.LENS, RH

35612-08J01

$12.23

3

.SCREW

03211-0414B

$1.77

4

.BULB (12V,21W)

09471-12045

$3.27

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-08J01

$93.60

6

.LENS, LH

35632-08J01

$12.10

7

.SCREW

03211-0414B

$1.77

8

.BULB (12V,21W)

09471-12045

$3.27

9

PLATE, FR TURNSIGNAL

35629-18G00

$2.42

10

NUT

08316-1005A

$2.19

11

LAMP ASSY, REAR TURNSIGNAL RH

35603-08J20

$94.32

12

.LENS, RH

35632-08J01

$12.10

13

.SCREW

03211-0414B

$1.77

14

.BULB (12V,21W)

09471-12045

$3.27

15

LAMP ASSY, REAR TURNSIGNAL LH

35604-08J20

$92.57

16

.LENS, LH

35612-08J01

$12.23

17

.SCREW

03211-0414B

$1.77

18

.BULB (12V,21W)

09471-12045

$3.27

19

NUT

08316-1005A

$2.19

20

RELAY ASSY, TURNSIGNAL LAMP

38610-06F10

Unavailable

21

CUSHION (20X50X10)

36652-04K00

$2.60

22

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

23

CLAMP (L:145)

09407-14407

$3.57
