2018 Suzuki GSX-S1000FAL8 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2018 Suzuki GSX-S1000FAL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

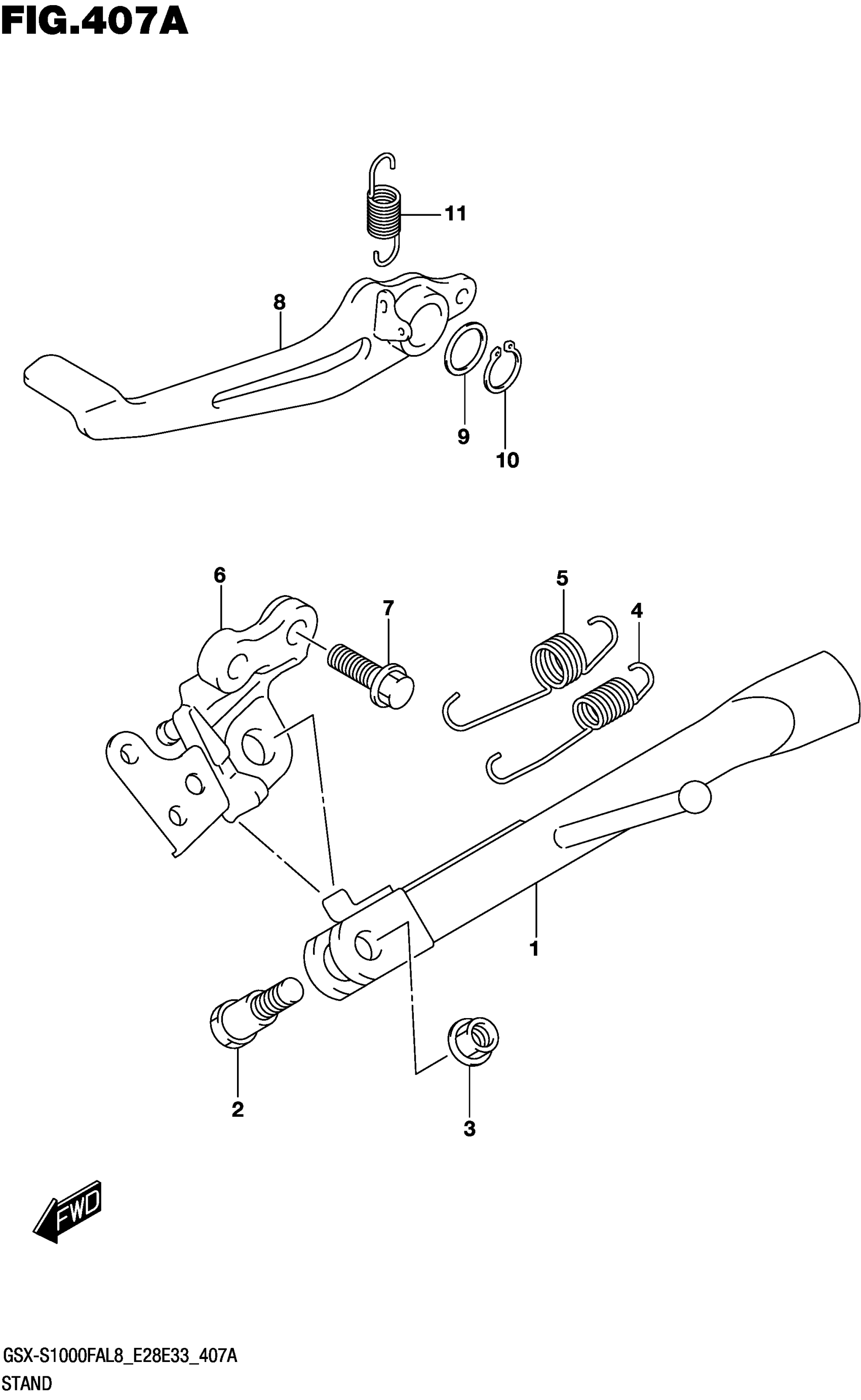

2018 Suzuki GSX-S1000FAL8 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, PROP

42310-04K10

1
Out of stock

2

BOLT (10X21)

09111-10059

1
Out of stock

3

NUT

08319-3110A

1
Out of stock

4

SPRING | INNER

09443-14058

1
Out of stock

5

SPRING | OUTER

09443-19011

1
Out of stock

6

BRACKET, PROP STAND

42330-04K00

1
Out of stock

7

BOLT (10X30)

09103-10366

2
Out of stock

8

PEDAL, BRAKE

43110-04K10

1
Out of stock

9

WASHER (18X24X1)

09160-18022

1
Out of stock

10

CIRCLIP

08331-3118A

1
Out of stock

11

SPRING

09443-13032

1
Out of stock
