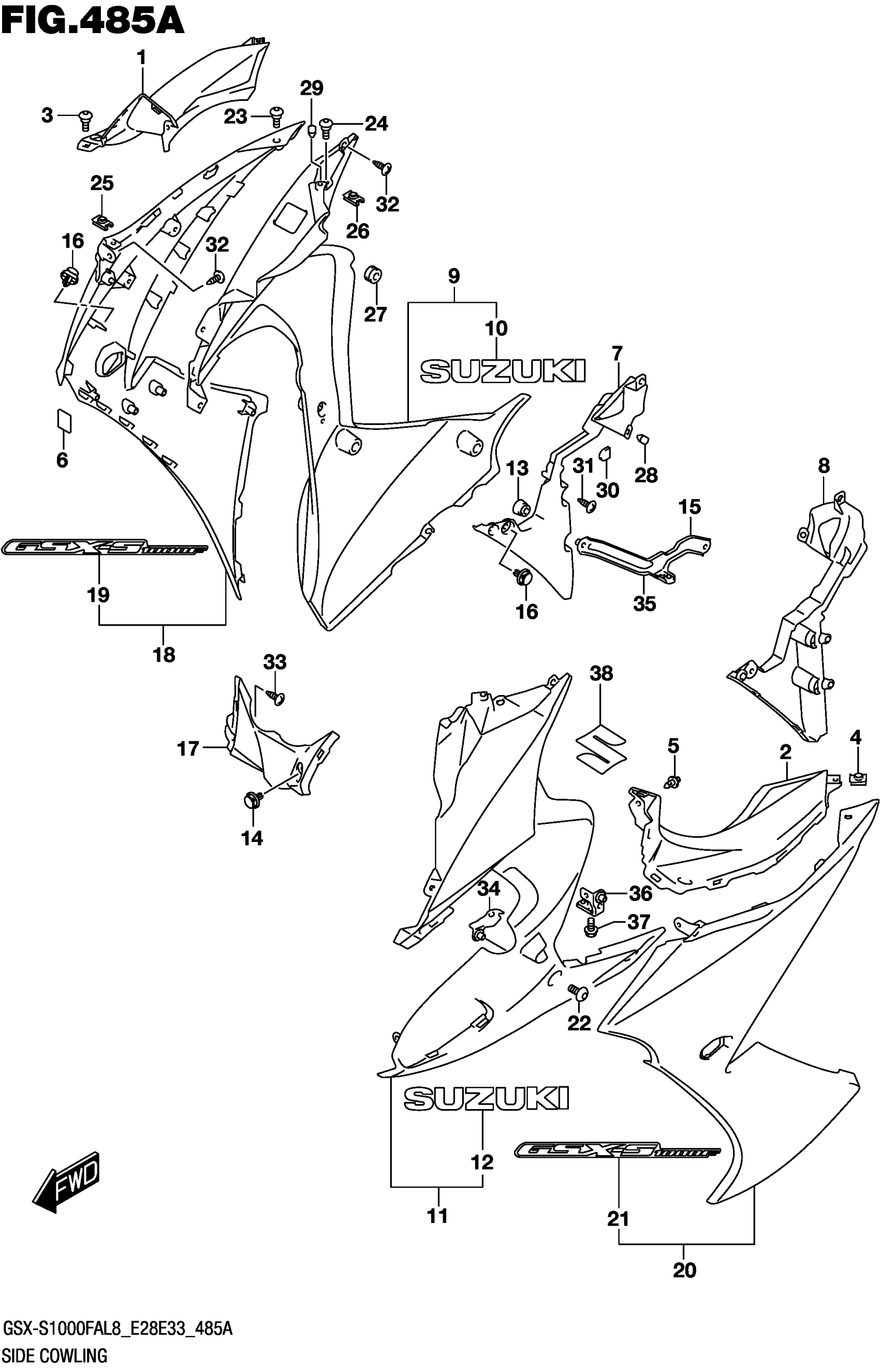

Suzuki GSX-S1000FAL8 (2018) SIDE COWLING Diagram

#

Description
Price

1

PANEL,METER RH

94631-04K00

$19.52

2

PANEL,METER LH

94632-04K00

$19.87

3

BOLT (5X13)

09139-05074

$2.66

4

NUT

09148-05052

$3.13

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

FASTENER, COWLING

44572-37H00

$9.41

7

COWLING,UNDER INNER RH

94461-04K00

$22.71

8

COWLING,UNDER INNER LH

94462-04K00

$30.65

9-1

COWLING,UNDER RH (BLACK) | FOR YWW

94470-04KA0-YKV

$326.87

9-2

COWLING,UNDER RH (BLUE) | FOR KEL

94470-04KA0-YSF

$323.17

9-3

COWLING, UNDER RH (RED) | FOR AV4

94470-04KA0-YYG

$333.03

10

.EMBLEM,"SUZUKI" (SILVER)

68181-04KA0-YES

$18.32

11-1

COWLING,UNDER LH (BLACK) | FOR YWW

94480-04KA0-YKV

$326.87

11-2

COWLING,UNDER LH (BLUE) | FOR KEL

94480-04KA0-YSF

$323.17

11-3

COWLING, UNDER LH (RED) | FOR AV4

94480-04KA0-YYG

$339.33

12

.EMBLEM,"SUZUKI" (SILVER)

68181-04KA0-YES

$18.32

13

CUSHION, UNDER LOWER

94479-15H00

$4.41

14

CLIP, UNDER CENTER

94479-35F00

$5.38

15

CLIP, UNDER INNER

94479-35F00

$5.38

16

CLIP, SIDE FRONT

94479-35F00

$5.38

17

COWLING,UNDER CTR

94491-04K00

$9.52

18-1

COVER,SIDE RH (BLACK) | FOR AV4,KEL

94670-04K00-YVB

$297.67

18-2

COVER, SIDE RH (WHITE) | FOR YWW

94670-04K00-YWW

$294.30

19-1

.EMBLEM,SIDE COWLING (SILVER/ | FOR YVB

68681-04K00-A77

$38.05

19-2

.EMBLEM, SIDE COWLING | FOR YWW

68681-04K00-BEQ

Unavailable

20-1

COVER,SIDE LH (BLACK) | FOR AV4,KEL

94680-04K00-YVB

$297.67

20-2

COVER, SIDE LH (WHITE) | FOR YWW

94680-04K00-YWW

$294.30

21-1

.EMBLEM,SIDE COWLING (SILVER/ | FOR YVB

68681-04K00-A77

$38.05

21-2

.EMBLEM, SIDE COWLING | FOR YWW

68681-04K00-BEQ

Unavailable

22

BOLT (6X12)

09106-06117

$4.84

23

SCREW (5X13)

09139-05064

$2.64

24

BOLT (5X13)

09139-05074

$2.66

25

NUT

09148-05052

$3.13

26

NUT

09148-05052

$3.13

27

CUSHION

09320-06504

$4.61

28

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

29

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

30

CUSHION

09329-18001

$1.97

31

SCREW

03541-0516B

$1.82

32

SCREW

03541-0516B

$1.82

33

SCREW

03541-0516B

$1.82

34

BRACKET,UNDER COWL FR LH

94520-04K00

$24.17

35

BRACKET, UNDER COWL RR RH

94530-04K00

$56.73

36

BRACKET,UNDER COWL RR LH

94540-04K00

$13.60

37

BOLT

01550-0612A

$2.01

38

EMBLEM, S

68111-47HA0

$38.68

39

COLOR:AV4=YVB(BLACK)/YYG(RED)

SPECIAL NOTE

Unavailable

39

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable
