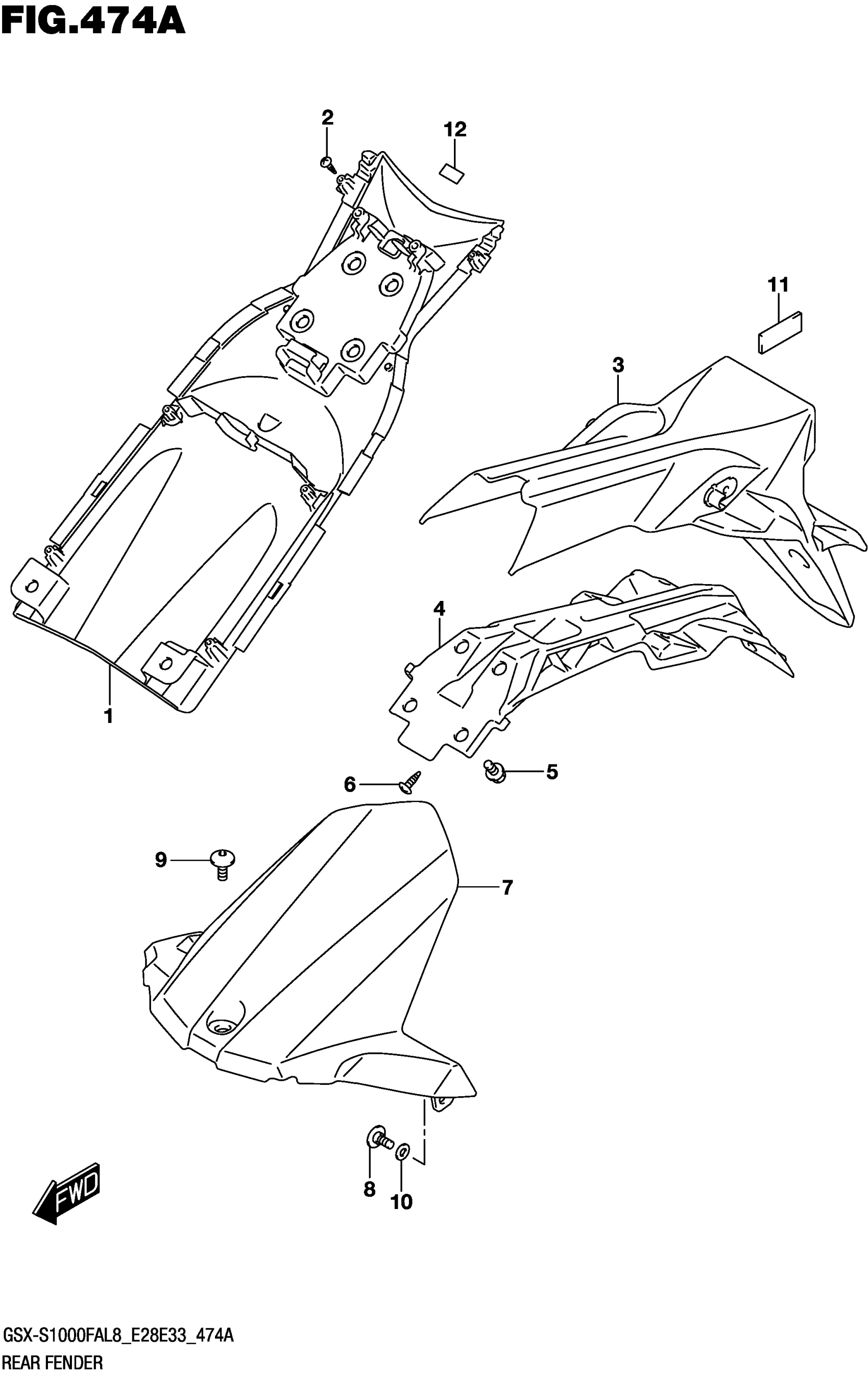

Suzuki GSX-S1000FAL8 (2018) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT This part replaces 63111-04K00.

63111-04K01

$40.07

2

SCREW

03541-0412A

$1.49

3

FENDER, REAR REAR OUTER

63113-04K00

$92.28

4

FENDER,REAR REAR INNER

63116-04K00

$123.83

5

BOLT

01550-0612B

$2.39

6

SCREW

03541-0516A

$1.49

7

FENDER, REAR LOWER

63114-04K00

$44.37

8

SCREW (6X16)

09139-06158

$4.90

9

SCREW (6X16)

09139-06137

$2.61

10

WASHER

08322-0106B

$2.26

11

CUSHION (10X30X2)

44894-24A00

$1.72

12

CUSHION | CUT AS REQUIRED

44543-10G00

$5.56
