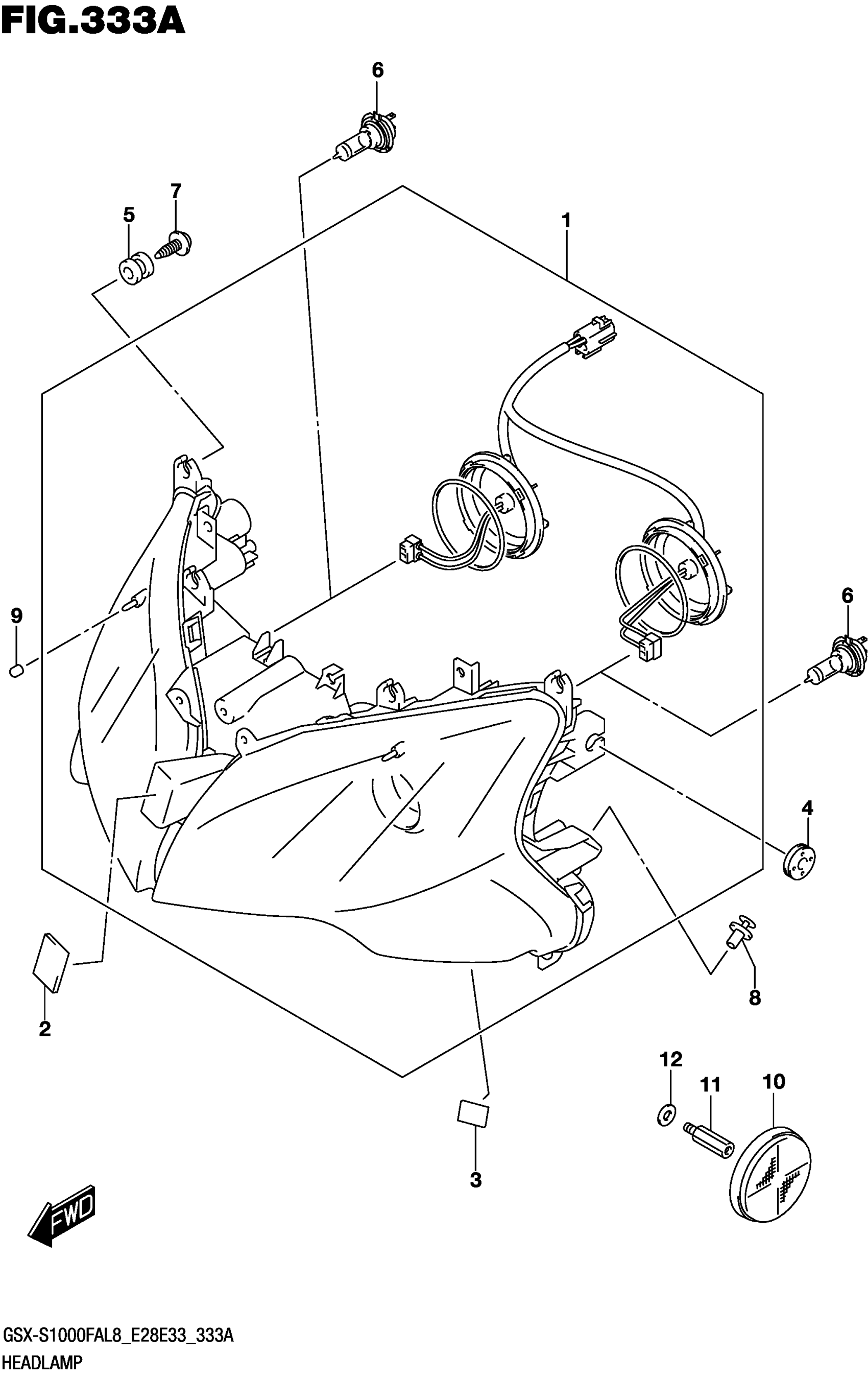

Suzuki GSX-S1000FAL8 (2018) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-04KB1-999

$531.23

2

FASTENER

44572-02F01

$11.07

3

FASTENER, COWLING

44572-37H00

$9.83

4

CUSHION

09320-08028

$3.04

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

6

BULB (12V55W H7)

09471-12188

$22.60

7

SCREW (5X15)

09136-05062

$2.19

8

CLIP, HEAD LAMP

94479-35F00

$5.62

9

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.30

10

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$12.46

11

BOLT

09119-06109

$13.28

12

WASHER (8.5X18X1)

09160-08043

$1.83
