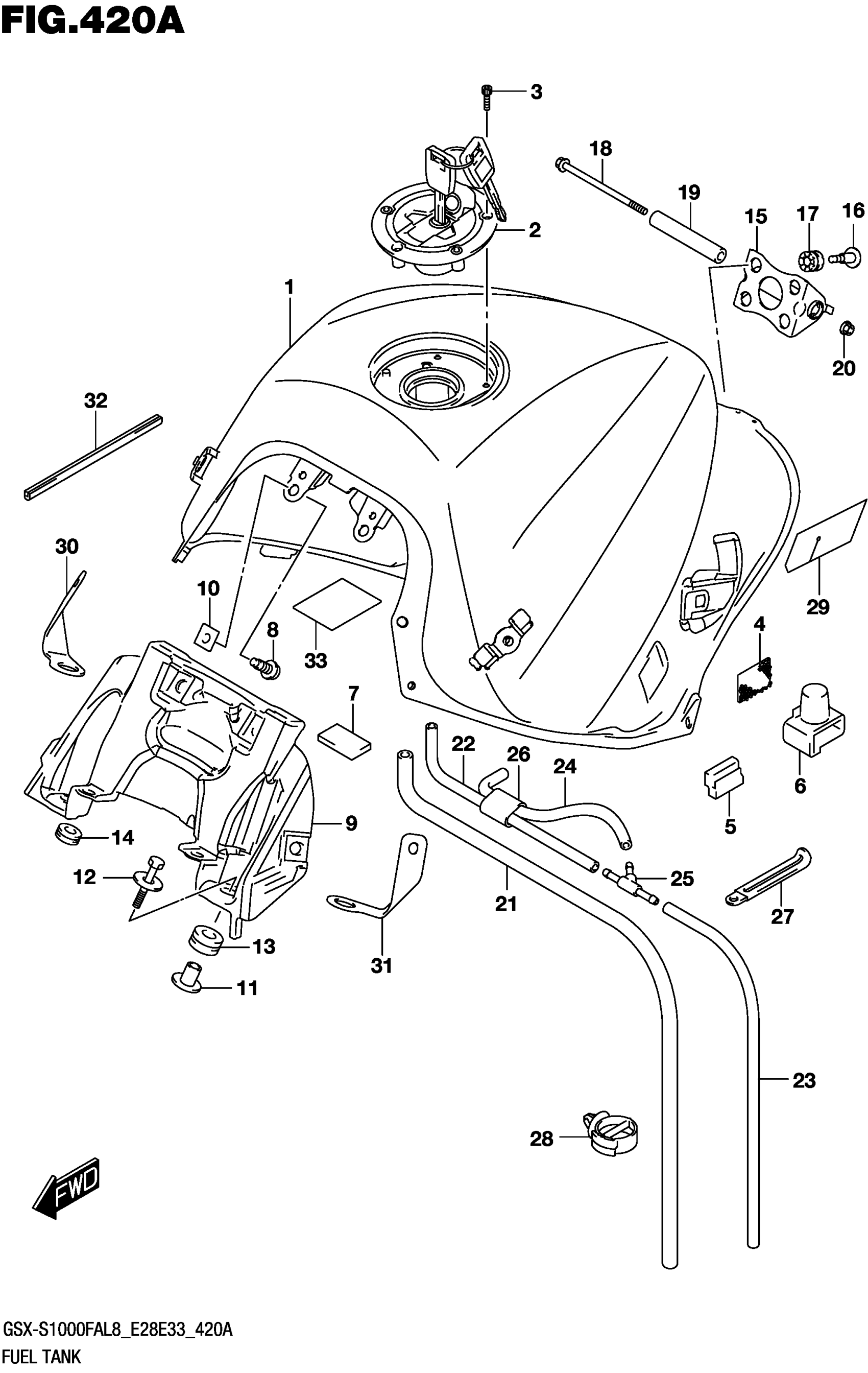

Suzuki GSX-S1000FAL8 (2018) FUEL TANK (GSX-S1000FAL8 E28) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | FOR AV4,KEL

44100-04K40-YVB

$1,248.03

1-2

TANK ASSY,FUEL (WHITE) | FOR YWW

44100-04K40-YWW

$1,226.95

2

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

3

BOLT

44244-11J00

$4.00

4

FASTENER

44572-13G00

$11.07

5

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

6

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$8.87

7

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

8

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

9

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

10

NUT

44523-47H00

$10.02

11

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

12

BOLT (6X30)

09116-06172

$2.50

13

CUSHION (10X22X13)

09320-10050

$3.35

14

CUSHION

09320-06504

$4.96

15

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT (6X100)

09103-06060

$2.50

19

SPACER, FUEL TANK REAR

44561-18G00

$16.96

20

NUT (M6)

09159-06076

$2.81

21

HOSE, DRAIN NO.1

44423-04K00

Unavailable

22

HOSE, FUEL TANK BRTHR NO.1 This part replaces 44424-04K00.

44424-04K01

$10.38

23

HOSE,5X10X600 | L:600->530 This part replaces 09352-50823-600.

44421-13ER0

$10.06

24

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

25

3 WAY

09367-06007

$3.46

26

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable

27

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

28

CLAMP

09403-20307

Unavailable

29

PROTECTOR, FUEL TANK

44283-06J00

$6.10

30

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

31

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

32

MOLDING, FUEL TANK, REAR

44552-24B00

$14.08

33

CUSHION,FUEL TANK

44281-04K00

$5.38

34

COLOR:AV4=YVB(BLACK)/YYG(RED)

SPECIAL NOTE

Unavailable

34

COLOR:KEL=YVB(BLACK)/YSF(BLUE)

SPECIAL NOTE

Unavailable
