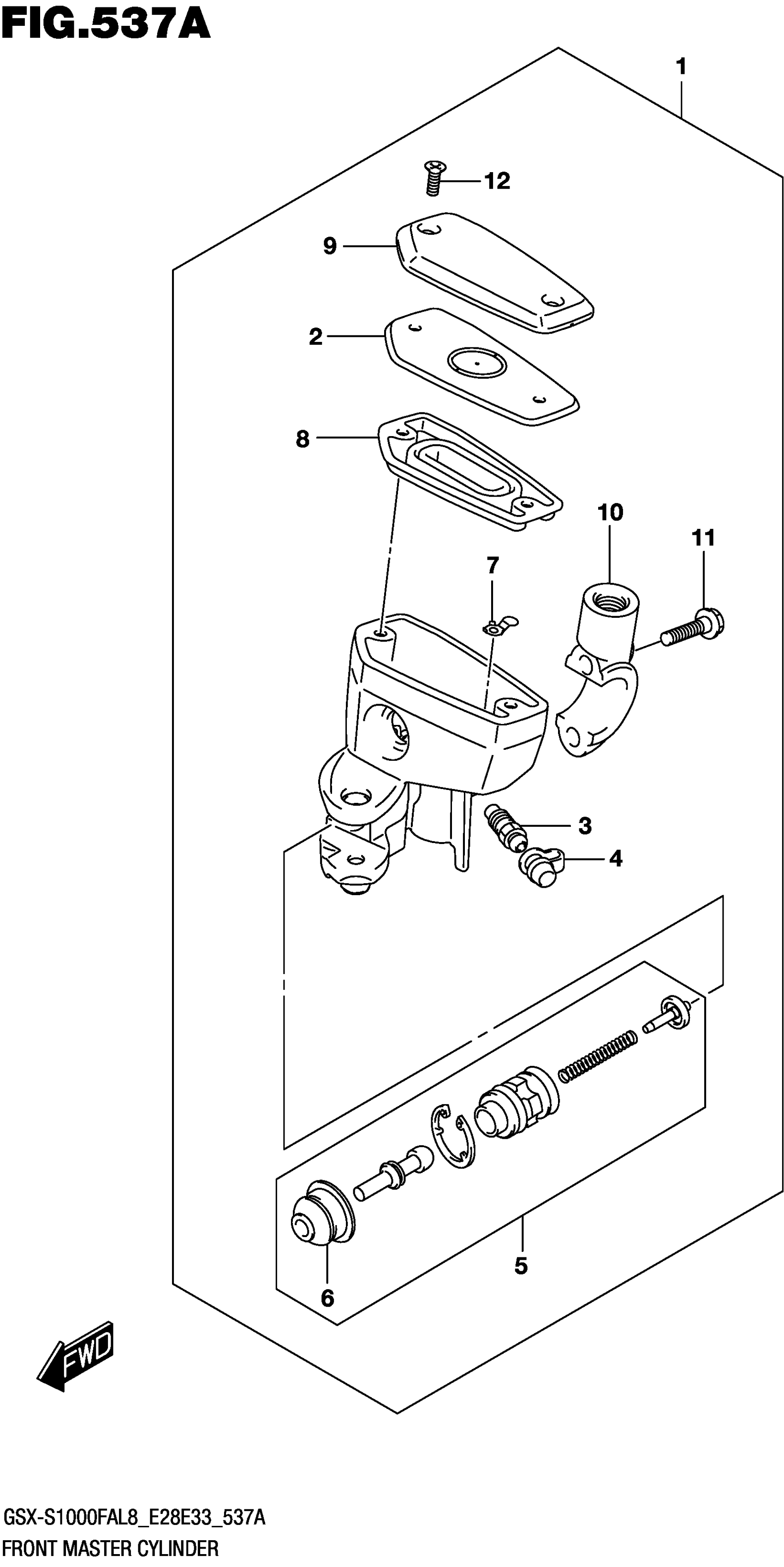

Suzuki GSX-S1000FAL8 (2018) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER

59600-23H20

$272.88

2

.PLATE

57437-23H00

$10.82

3

.BLEEDER

59121-01A00

$8.35

4

.CAP, BLEEDER

59122-46H00

$4.36

5

.PISTON/CUP SET

59600-29821

$84.37

6

..BOOT

59666-29G00

$13.93

7

.PROTECTOR

59664-32F00

$13.20

8

.DIAPHRAGM,R This part replaces 59667-23H00.

59667-23H10

Unavailable

9

.CAP, RESERVOIR

59669-23H20

$36.90

10

.HOLDER

59671-32F00

$18.68

11

.BOLT (6X22)

59675-02FA0

$3.66

12

.SCREW, RESERVOIR CAP

69689-49300

$1.81
