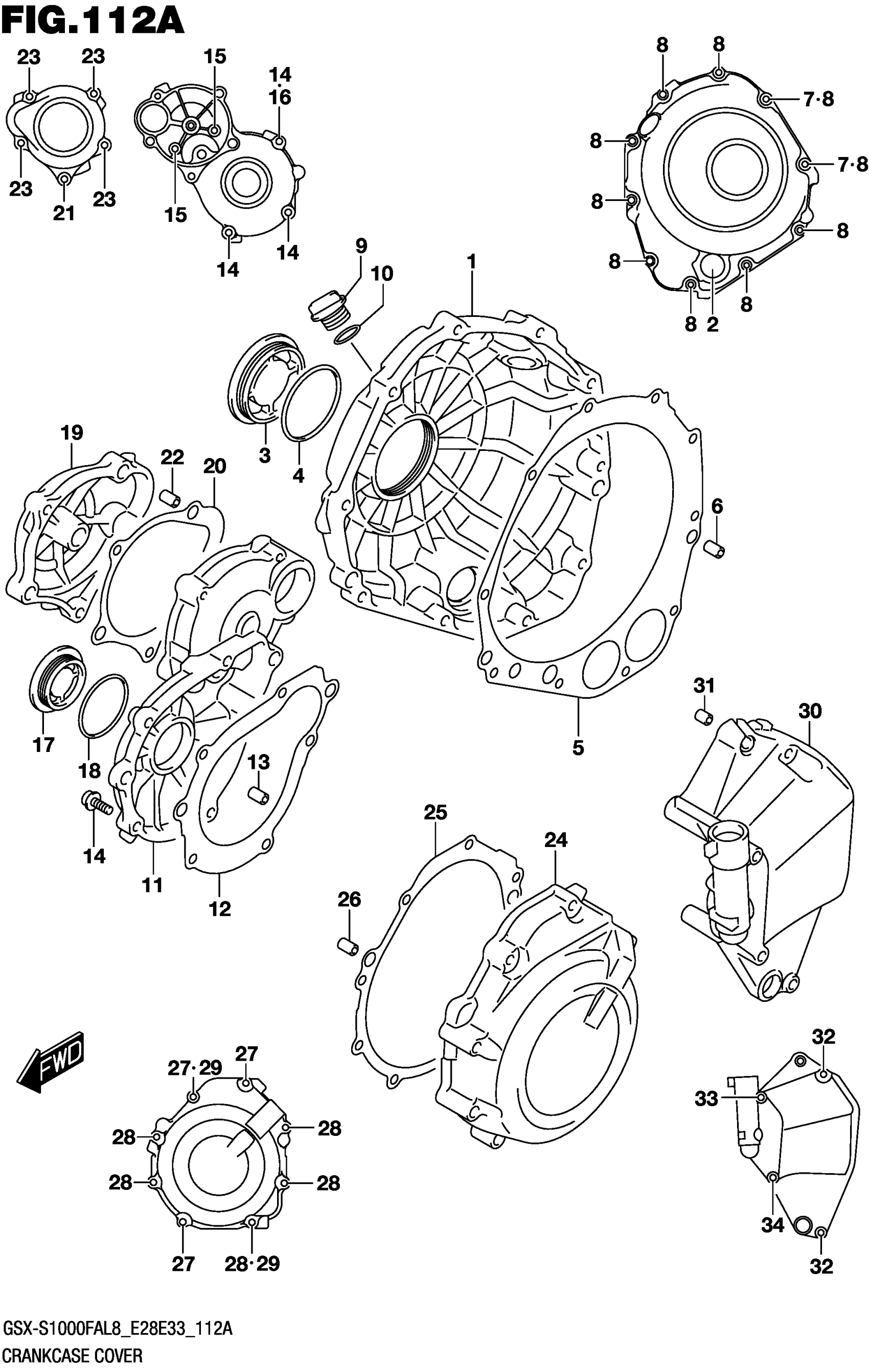

Suzuki GSX-S1000FAL8 (2018) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-04K00

$243.20

2

.LENS, OIL LEVEL

11971-33210

$18.20

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$25.03

4

O RING

31156-17E00

$4.60

5

GASKET, CLUTCH COVER

11482-40F10

$15.69

6

PIN

04211-09189

$1.65

7

GASKET (5.8X13X1.2)

09168-06023

$2.35

8

BOLT (6X30)

09103-06213

$2.47

9

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, STARTER CLUTCH

11381-04K00

$172.07

12

GASKET, STARTER CLUTCH COVER

11491-33E02

$8.73

13

PIN

04211-09149

$1.65

14

BOLT (6X25)

09103-06212

$2.47

15

BOLT (6X35)

09103-06214

$2.48

16

GASKET (5.8X13X1.2)

09168-06023

$2.35

17

PLUG

09259-36021

$13.80

18

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

19

CAP, STARTER IDLE GEAR

11382-04K00

$55.22

20

GASKET

11492-04K00

$7.21

21

BOLT (6X60)

09103-06261

$3.16

22

PIN

04211-09149

$1.65

23

BOLT (6X35)

09103-06214

$2.48

24

COVER, MAGNETO

11351-04K00

$142.20

25

GASKET, MAGNETO COVER

11483-18G00

$11.07

26

PIN

04211-09149

$1.65

27

BOLT (6X30)

09103-06213

$2.47

28

BOLT (6X40)

09103-06215

$2.78

29

GASKET (5.8X13X1.2)

09168-06023

$2.35

30

COVER,ENG SPROCKET

11361-04K00

$181.48

31

PIN

04211-09129

$1.65

32

BOLT (6X55)

09103-06216

$2.78

33

BOLT (6X95)

09103-06227

$4.17

34

BOLT (6X80)

09103-06263

$3.78
