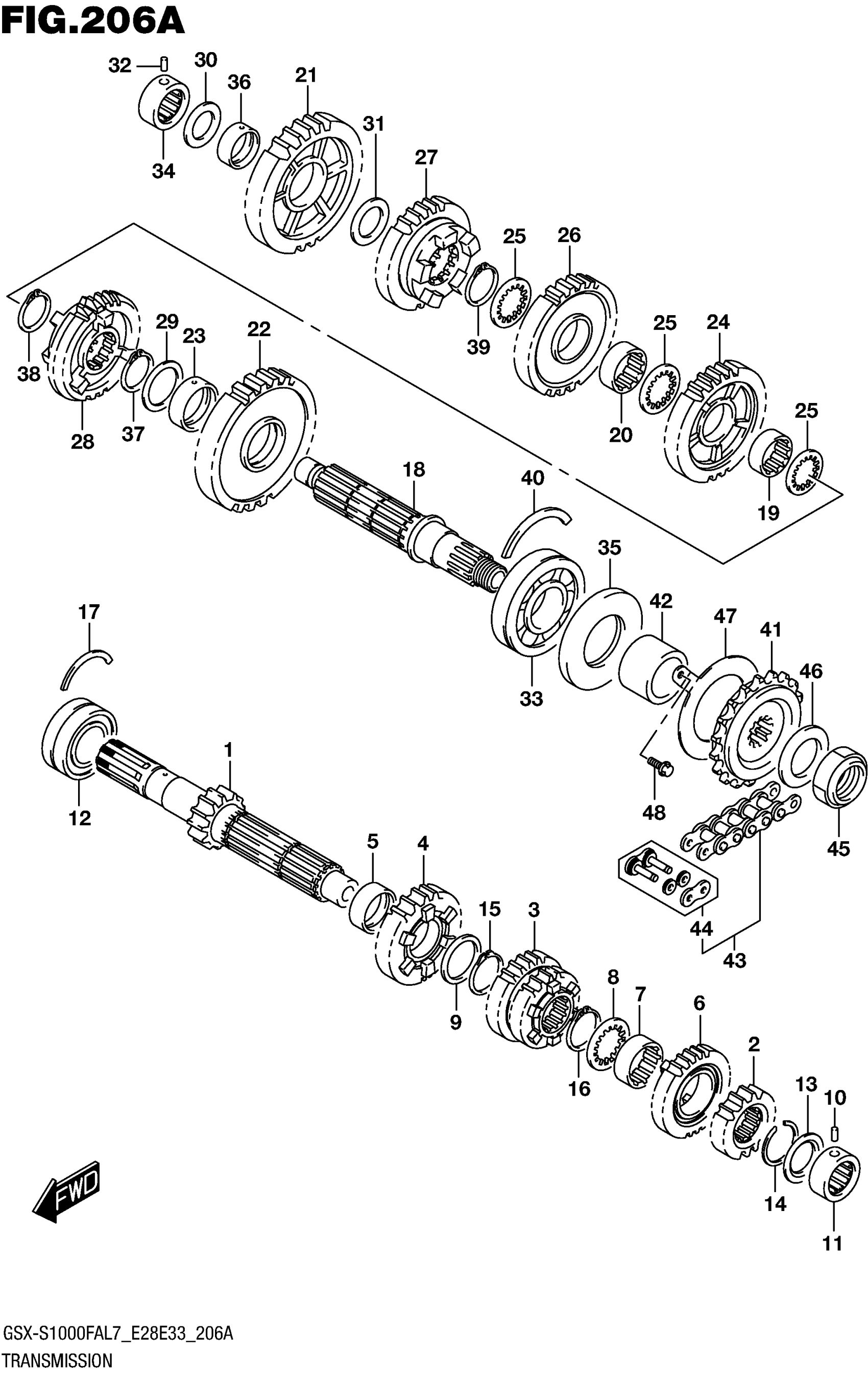

Suzuki GSX-S1000FAL7 (2017) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, CNTR (NT:16)

24120-40F30

Unavailable

2

GEAR,2ND DRIVE (NT:19)

24221-40F30

$118.08

3

GEAR, 3RD & 4TH DRIVE

24231-40F40

$172.78

3

(NT:21/24)

24231-40F40

$172.78

4

GEAR, 5TH DRIVE (NT:25)

24251-40F40

$137.67

5

BUSH, 5TH DRIVE GEAR

24252-35F00

$24.72

6

GEAR, 6TH DRIVE (NT:26)

24261-40F30

$137.67

7

BUSH, 6TH DRIVE GEAR

24262-35F10

$28.70

8

LOCK WASHER

09167-27003

$6.80

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

PIN (6X10)

09261-06003

$1.49

11

BEARING (20X34X13.5)

09263-20087

$42.65

12

BEARING (25X52X20.6) | RH

09267-25013

$106.33

13

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

14

CIRCLIP

09380-27004

$3.70

15

CIRCLIP

09380-27006

$2.73

16

CIRCLIP

09380-27006

$2.73

17

C RING

09390-58001

$3.42

18

SHAFT, DRIVE

24131-40F10

$265.42

19

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

20

BUSH,3RD DRIVEN GEAR

24332-46H00

$38.95

21

GEAR, 1ST DRIVEN (NT:41)

24311-40F30

$139.45

22

GEAR, 2ND DRIVEN (NT:39) This part replaces 24321-40F40.

24321-40F50

$120.93

23

BUSH, 2ND DRIVEN GEAR

24322-02F01

$21.52

24

GEAR,3RD DRIVEN (NT:36)

24331-40F30

$167.85

25

WASHER, 3RD & 4TH DRIVEN GEAR

24333-02F00

$4.99

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$175.18

27

GEAR, 5TH DRIVEN (NT:34)

24351-40F40

$139.45

28

GEAR, 6TH DRIVEN (NT:33)

24361-40F30

$142.63

29

WASHER (27X36X1)

09160-27008

$3.68

30

SHIM (20X34X1)

09181-20251

$2.79

31

SHIM (22X34X1)

09181-22223

$3.12

32

PIN (6X10)

09261-06003

$1.49

33

BEARING (28X70X18) | LH

09262-28025

$150.62

34

BEARING (20X34X13.5) | RH

09263-20087

$42.65

35

OIL SEAL (34.8X70X6)

09283-36008

$21.28

36

BEARING (22X26X11)

09263-22068

$6.25

37

CIRCLIP

09380-27006

$2.73

38

CIRCLIP

09380-27006

$2.73

39

CIRCLIP

09380-27006

$2.73

40

C RING

09390-70001

$9.77

41

SPROCKET,ENGINE This part replaces 27510-20A40.

27510-20A42

$78.18

42

SPACER, ENGINE SPROCKET

27531-04K00

$26.48

43

CHAIN ASSY, DRIVE (RK525GSH)

27600-33E50-116

$300.12

44

.JOINT SET, DRIVE CHAIN (RK)

27620-33E50

$17.95

45

NUT

09159-20004

$15.67

46

WASHER (25X38X2.5)

09160-25066

$7.33

47

RETAINER, DRIVE SHAFT OIL SEA

24751-04K00

$7.82

48

BOLT (6X12)

09103-06236

$2.69
