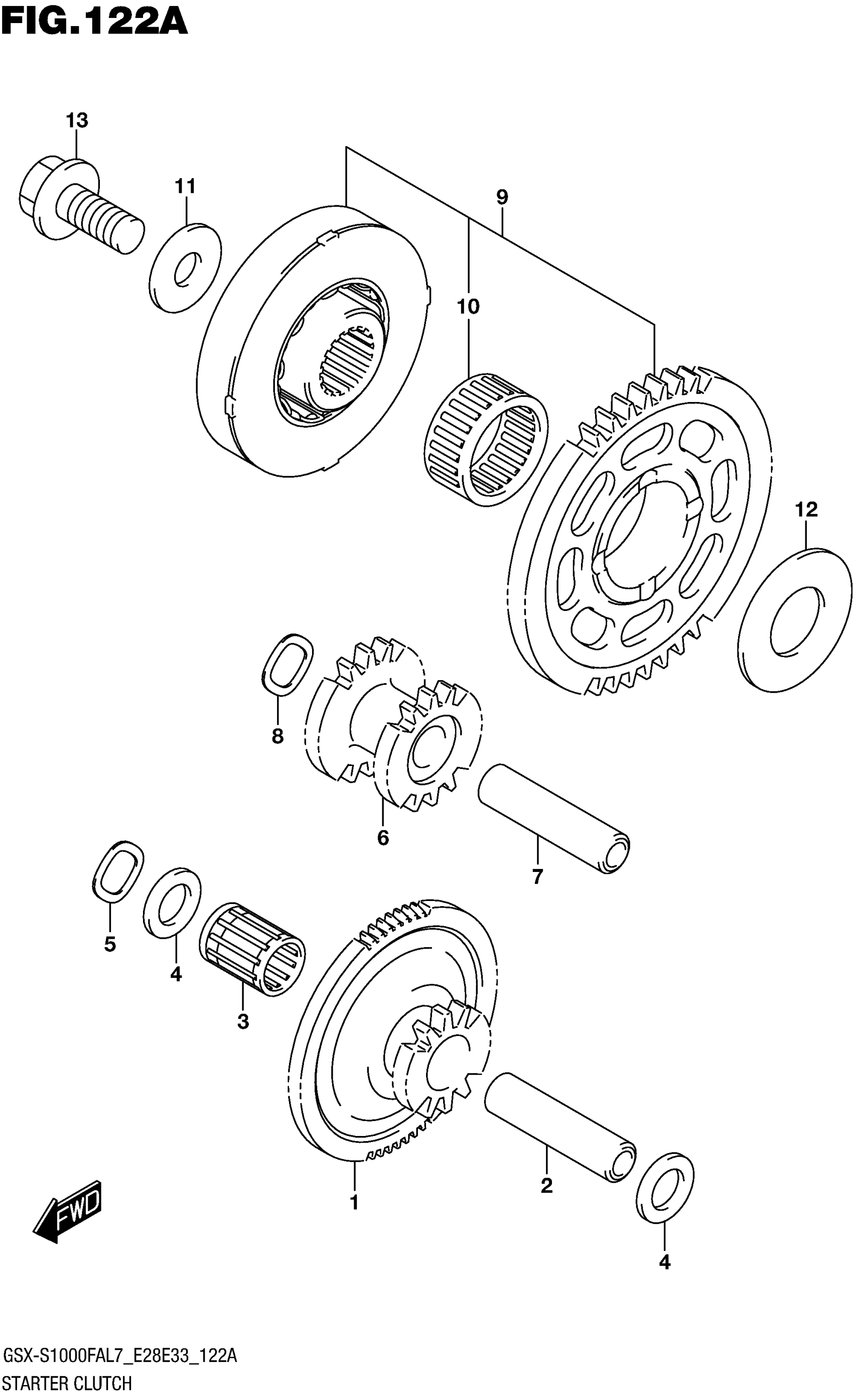

Suzuki GSX-S1000FAL7 (2017) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-04K00

$100.02

1

(NT:15/75)

12611-04K00

$100.02

2

PIN (8X12X45.5)

09206-12006

$9.43

3

BEARING (12X16X20)

09263-12022

$17.67

4

SHIM (12X20X1)

09181-12167

$2.26

5

WASHER

09164-12021

$2.03

6

GEAR, STARTER IDLE NO.2

12612-04K00

Unavailable

6

(NT:15/17)

12612-04K00

Unavailable

7

PIN (8X12X45.5)

09206-12006

$9.43

8

WASHER

09164-12021

$2.03

9

CLUTCH SET, STARTER (NT:44)

12600-40831

$378.35

10

.BEARING (26X31X16)

09263-26035

$71.72

11

WASHER

08211-10285

$3.49

12

WASHER

08211-20403

$4.32

13

BOLT (10X23)

09103-10189

$4.04
