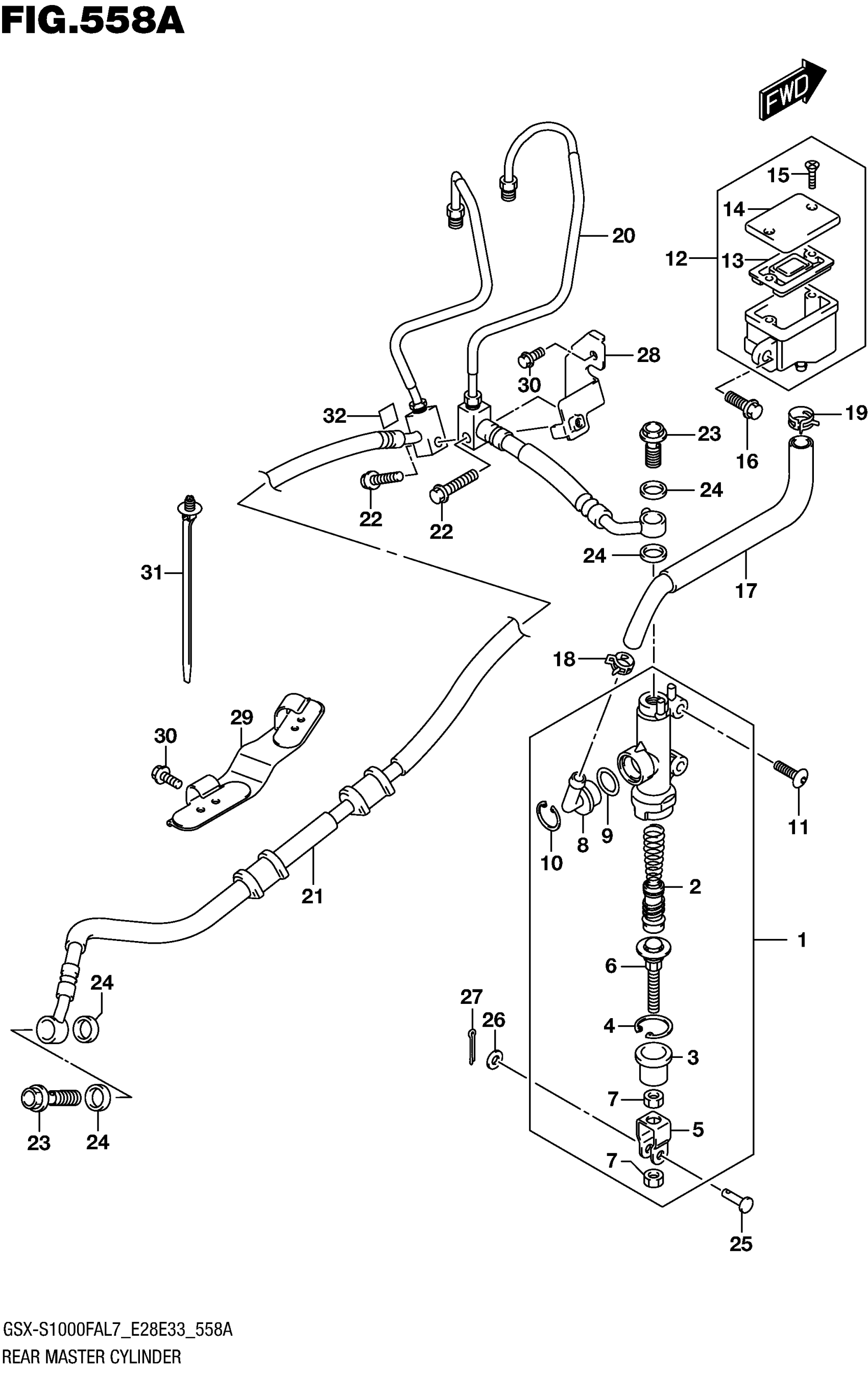

Suzuki GSX-S1000FAL7 (2017) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,RR MASTER

69600-47H10

$312.98

2

.PISTON / CAP SET

69600-34810

$56.48

3

.BOOT

69691-00A00

$5.30

4

.CIRCLIP

69665-47H00

$5.02

5

.YOKE

69692-44H00

$16.87

6

.ROD, PUSH

69670-40A00

$25.62

7

.NUT

69693-05A00

$1.96

8

.CONNECTOR

69672-00B20

$7.01

9

.O RING

69686-34200

$2.93

10

.CIRCLIP

69674-00B20

$3.97

11

SCREW (6X20)

09139-06028

$3.70

12

TANK ASSY,REAR RESERVOIR

69740-44G00

$57.93

13

.DIAPHRAGM

59667-04700

$9.78

14

.CAP

59669-05D00

$16.76

15

.SCREW

69689-04A00

$1.78

16

BOLT

01547-0612A

$2.03

17

HOSE, RR RESERVOIR TANK

69730-04K00

$19.15

18

CLIP

09401-12404

$2.34

19

CLIP

09401-15407

$2.83

20

HOSE ASSY, RR MASTER TO UNIT

69200-04K00

$80.20

21

HOSE ASSY,RR UNIT TO CLPR This part replaces 69400-04K00.

69400-04K01

$90.38

22

BOLT

01547-0625A

$2.01

23

UNION

09360-10062

$6.43

24

WASHER (10X15X1.5)

09161-10009

$1.84

25

PIN (6X18.2)

09200-06068

$4.11

26

WASHER

08322-0106A

$1.84

27

PIN

04111-2015A

$1.49

28

CLAMP, RR BRAKE HOSE

69260-04K00

$9.58

29

GUIDE, RR BRAKE HOSE

69270-04K00

$19.45

30

BOLT

01547-0612A

$2.03

31

CLAMP (L:154)

09407-17403

$4.91

32

PROTECTOR, BRAKE HOSE

69411-04K00

$2.40
