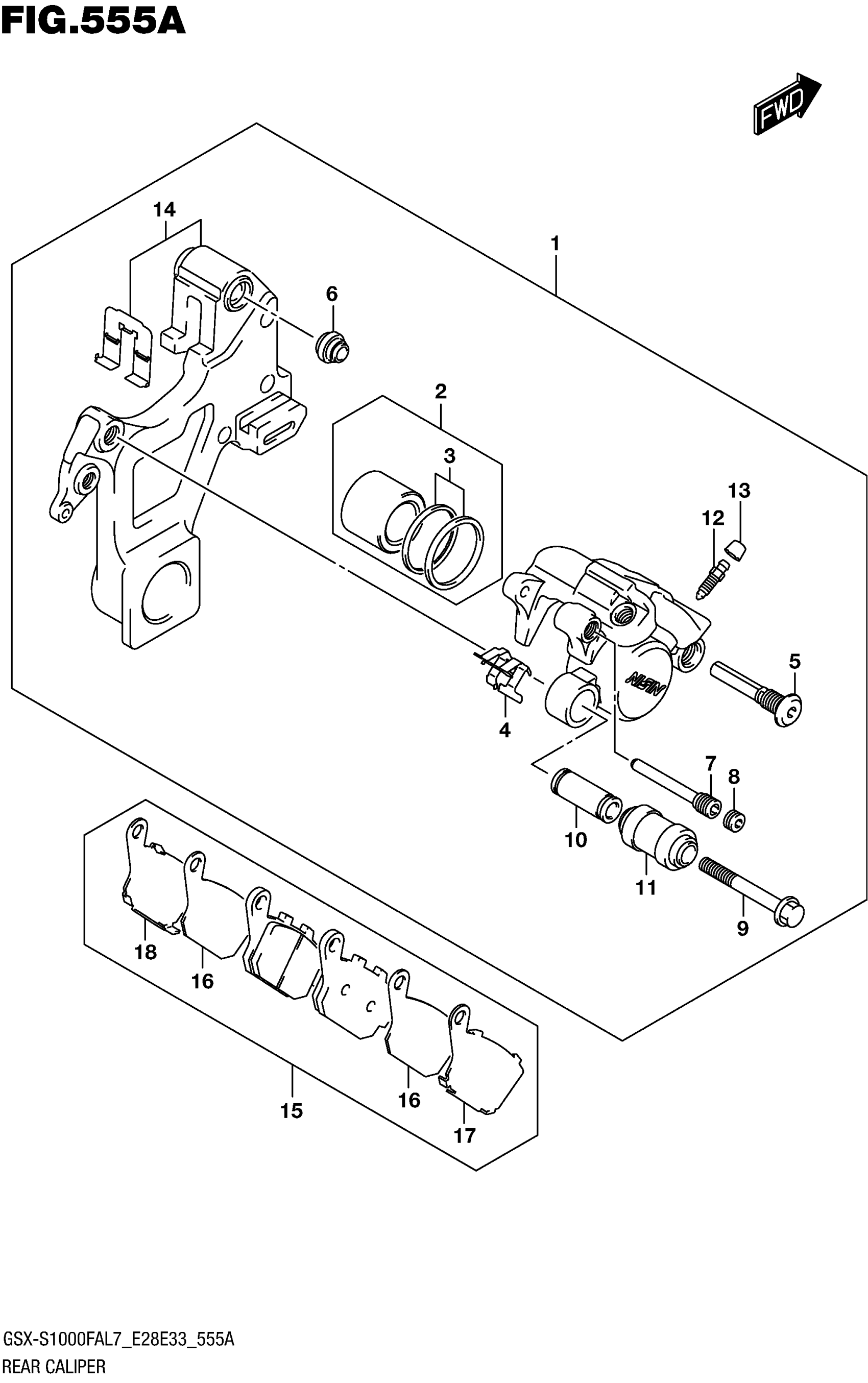

Suzuki GSX-S1000FAL7 (2017) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

69100-04K00-999

$307.73

2

.PISTON SET

69100-04810

$47.22

3

..SEAL SET,PISTON

69100-04820

$8.77

4

.SPRING, PAD

69115-04F00

$10.22

5

.PIN, BOLT

59305-36E00

$18.20

6

.BOOT

59303-14500

$5.52

7

.PIN, PAD

69141-40F00

$29.48

8

.PIN, PLUG

59146-08J00

$7.22

9

.BOLT

69182-04F00

$9.07

10

.SLEEVE

69185-04F00

$18.50

11

.BOOT,SLEEVE

69186-04F00

$13.22

12

.BLEEDER

59121-01A00

$8.73

13

.CAP, BLEEDER

59122-46H00

$4.43

14

.BRACKET

69150-04K00

$123.45

15

PAD & RETAINER SET

69100-08860

$57.00

16

.INSULATOR

69132-08J00

$11.90

17

.RETAINER

69133-16G00

$16.78

18

.RETAINER

69134-16G00

$16.48
