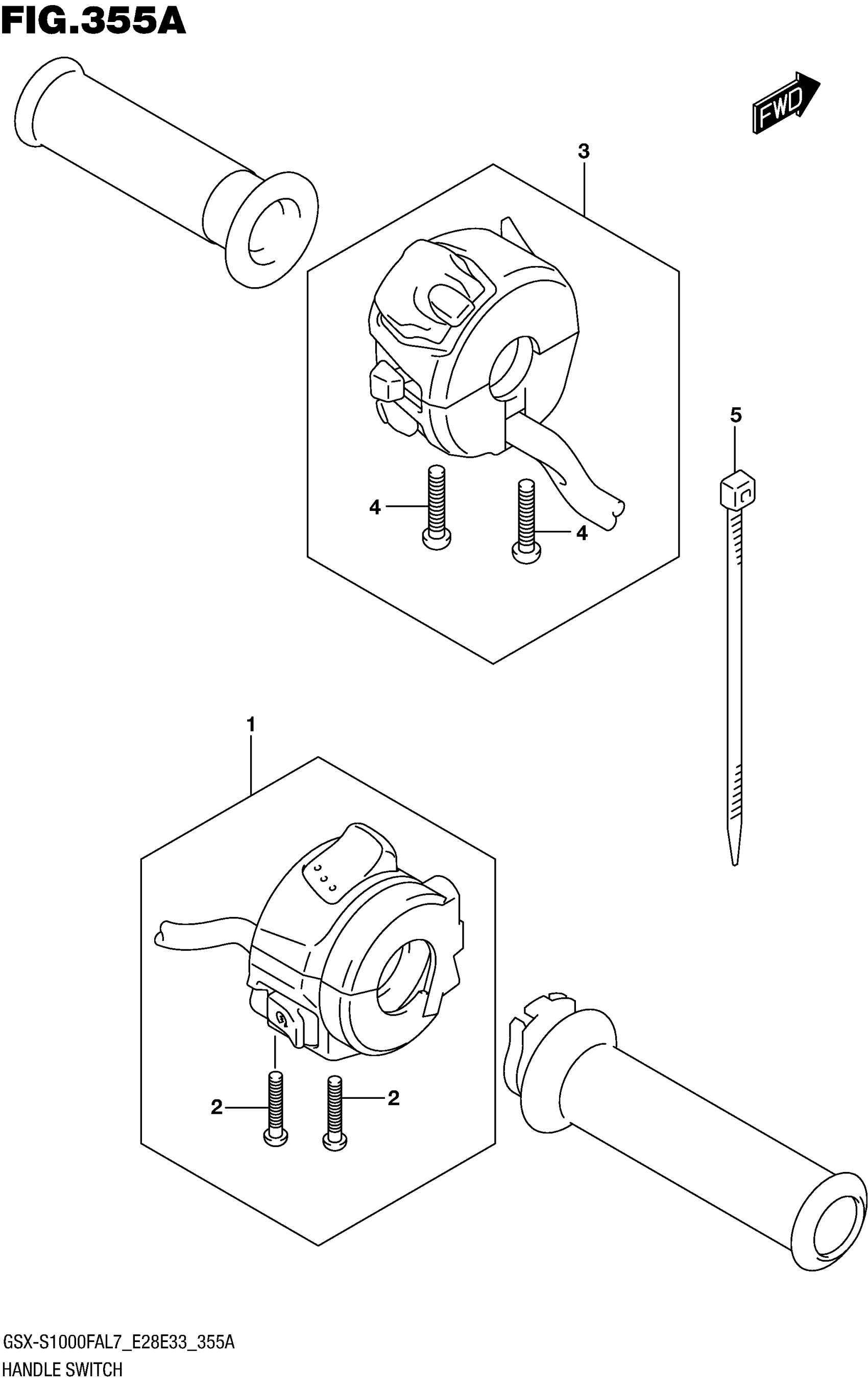

Suzuki GSX-S1000FAL7 (2017) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE RH

37200-04K10

$139.15

2

.SCREW

02112-0530B

$1.49

3

SWITCH ASSY,HAN This part replaces 37400-04KB0.

37400-04KB1

$248.55

4

.SCREW

02112-0525B

$1.84

5

CLAMP (L:145)

09407-14407

$3.57
