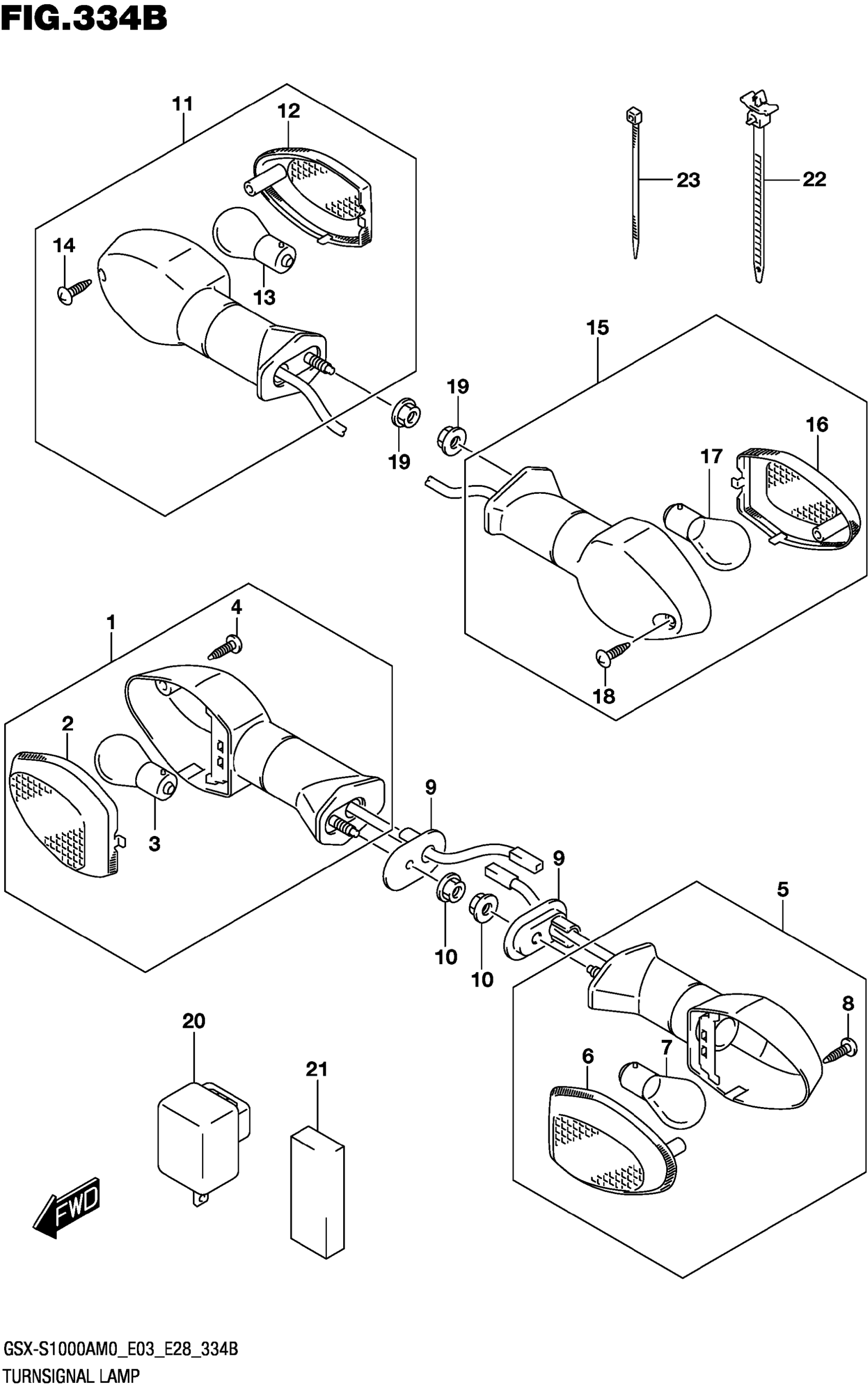

Suzuki GSX-S1000AM0 (2020) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL RH

35601-08J11

$101.17

2

.LENS,TURNSIGNAL

35612-08J01

$12.23

3

.BULB (12V21W)

09471-12045

$3.27

4

.SCREW

03211-0414B

$1.77

5

LAMP ASSY,FR TURN SIGNAL LH

35602-08J11

$105.02

6

.LENS,TURNSIGNAL

35632-08J01

$12.10

7

.BULB (12V21W)

09471-12045

$3.27

8

.SCREW

03211-0414B

$1.77

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

10

NUT

08316-1005A

$2.19

11

LAMP ASSY,REAR TURNSIGNAL RH

35603-08J20

$94.32

12

.LENS,TURNSIGNAL

35632-08J01

$12.10

13

.BULB (12V21W)

09471-12045

$3.27

14

.SCREW

03211-0414B

$1.77

15

LAMP ASSY,REAR TURNSIGNAL LH

35604-08J20

$92.57

16

.LENS,TURNSIGNAL

35612-08J01

$12.23

17

.BULB (12V21W)

09471-12045

$3.27

18

.SCREW

03211-0414B

$1.77

19

NUT

08316-1005A

$2.19

20

RELAY ASSY,TURNSIGNAL LAMP

38610-06F11

Unavailable

21

CUSHION (20X50X10)

36652-04K00

$2.60

22

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

23

CLAMP (L:145)

09407-14407

$3.57
