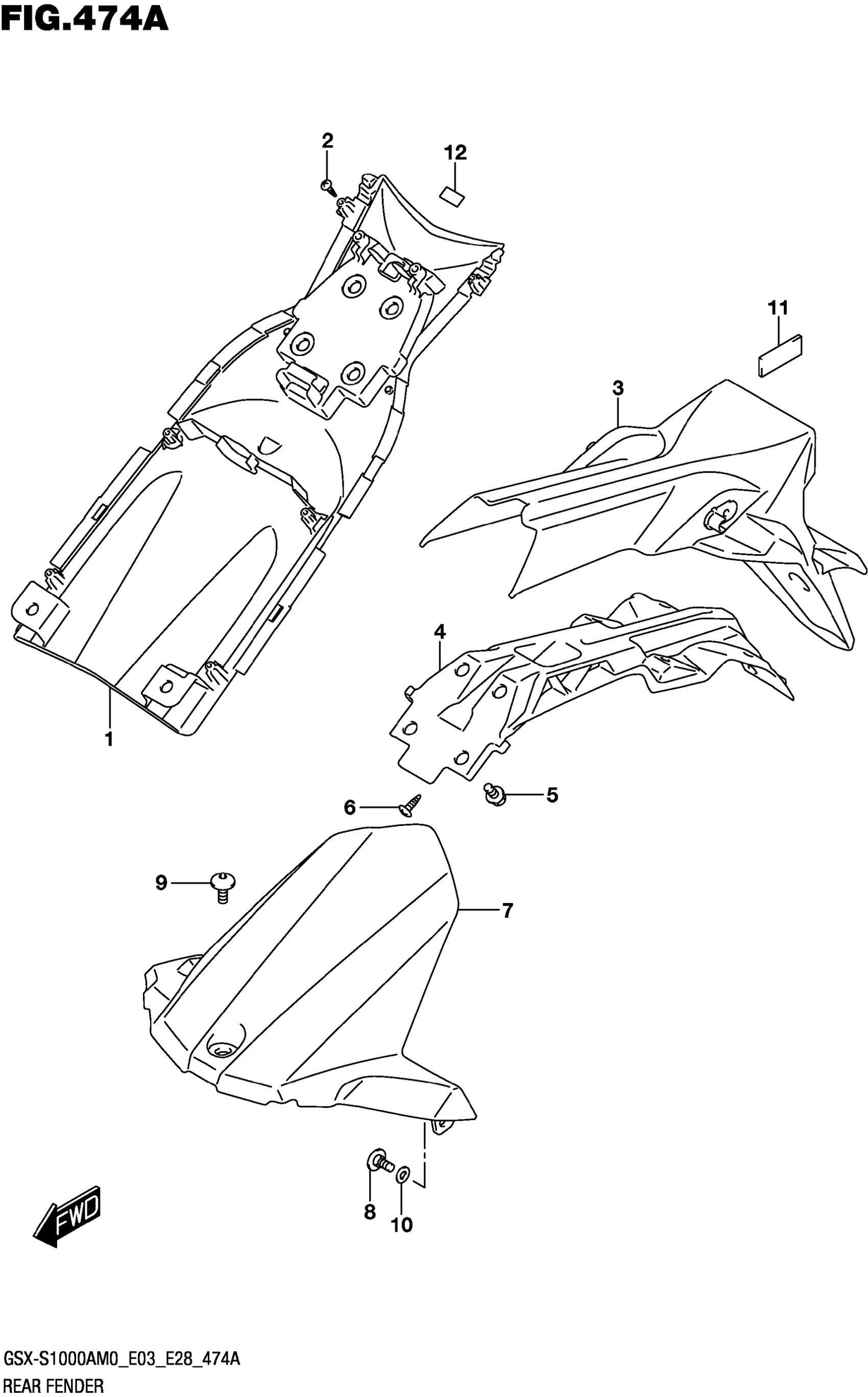

Suzuki GSX-S1000AM0 (2020) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR FRONT This part replaces 63111-04K00.

63111-04K01

$45.22

2

SCREW

03541-0412A

$1.37

3

FENDER,REAR REAR OUTER

63113-04K00

$104.15

4

FENDER,REAR REAR INNER

63116-04K00

$139.08

5

BOLT

01550-0612B

$2.38

6

SCREW

03541-0516A

$1.37

7

FENDER, REAR LOWER

63114-04K00

$50.07

8

SCREW (6X16)

09139-06158

$4.42

9

SCREW (6X16)

09139-06137

$2.71

10

WASHER

08322-0106B

$2.24

11

CUSHION (10X30X2)

44894-24A00

$1.78

12

CUSHION, FUEL TANK NO.2 | 3.0) CUT AS REQUIRED

44543-10G00

$5.23
