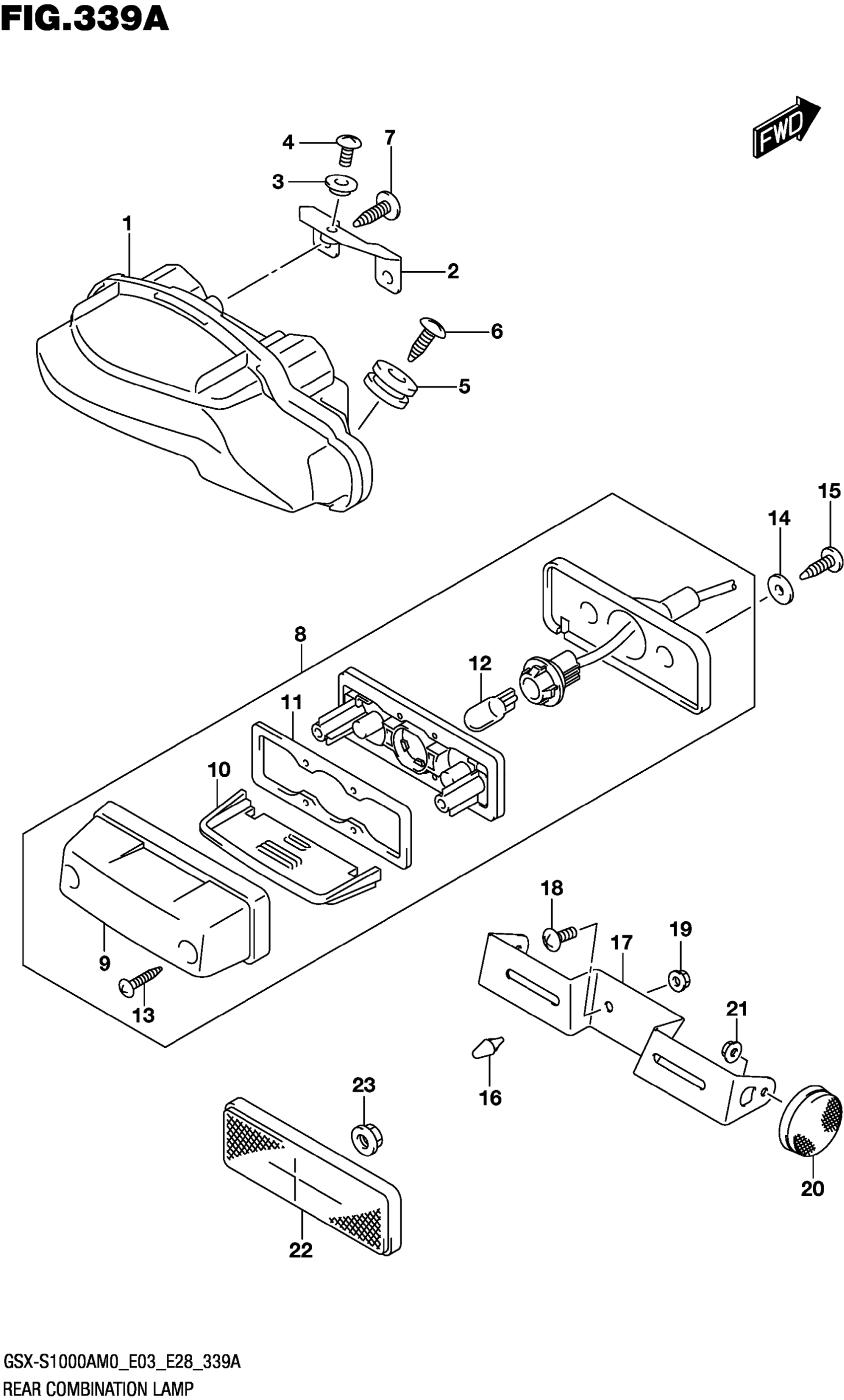

Suzuki GSX-S1000AM0 (2020) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMBINATION

35710-04K01

$252.17

2

BRACKET,REAR COMB UPPER

35726-04K00

$7.22

3

WASHER

09169-06071

$2.50

4

SCREW

02142-0612A

$1.37

5

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

6

SCREW

03541-0616B

$3.00

7

SCREW

03541-0516A

$1.37

8

LAMP ASSY,LICENSE

35910-16G90

$90.27

9

.COVER

35917-16G00

$14.00

10

.LENS

35912-16G01

$13.85

11

.GASKET

35913-16G00

Unavailable

12

.BULB (12V5W)

09471-12216

$4.84

13

.SCREW

03211-0416A

$1.43

14

WASHER (5.5X20X1.2)

09160-05501

$1.86

15

SCREW

03541-0540A

$1.58

16

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

17

BRACKET,LICENSE PLATE

35927-44H30

$20.78

18

SCREW

02142-0616A

$1.37

19

NUT (M6)

09159-06096

$3.42

20

REFLECTOR ASSY,REAR SIDE

35970-13K00

$18.38

21

NUT

08316-1005A

$2.19

22

REFLECTOR ASSY,RR

35970-07F01

$19.11

23

NUT

08316-1005A

$2.19
