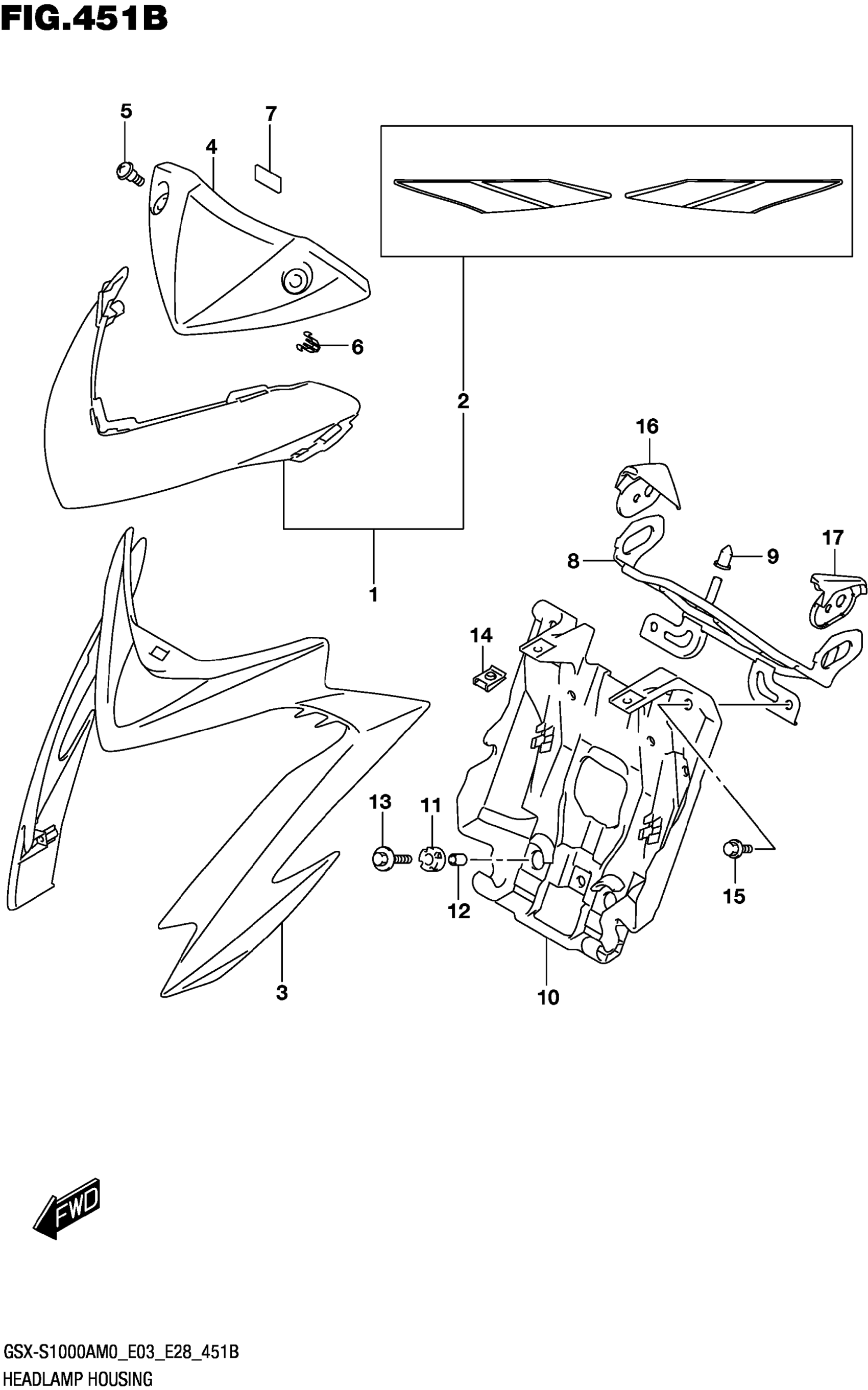

Suzuki GSX-S1000AM0 (2020) HEADLAMP HOUSING (GSX-S1000ZA) Diagram

#

Description
Price

1-1

COVER,HEADLAMP FRONT (BLACK) | FOR YSF

51830-04K00-YKV

Unavailable

1-2

COVER,HEADLAMP FRONT (BLACK) | FOR YWW

51830-04K00-4TX

Unavailable

1-3

COVER,HEADLAMP FRONT (BLACK) | FOR BN8

51830-04K00-4UX

Unavailable

2-1

.TAPE SET,HEADLAMP COVER | FOR YSF

68210-04K20-B4U

Unavailable

2-2

.TAPE SET,HEADLAMP COVER | FOR YWW

68210-04K20-B4V

Unavailable

2-3

.TAPE SET,HEADLAMP COVER | FOR BN8

68210-04K20-B4T

Unavailable

3-1

COVER,HEADLAMP (BLUE) | FOR YSF

51821-04K00-YSF

$157.23

3-2

COVER,HEADLAMP (WHITE) | FOR YWW

51821-04K00-YWW

Unavailable

3-3

COVER,HEADLAMP (GRAY) | FOR BN8

51821-04K00-QEB

Unavailable

4

COVER,METER

51811-04K00

$31.28

5

SCREW (5X13)

09139-05503

$2.69

6

CLIP (10.5X14.3)

09409-08326

$2.48

7

CUSHION (10X30X6)

33652-47F00

$3.70

8

BRACE,METER

51850-04K10

$86.32

9

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.94

10

COVER,HEADLAMP REAR

51841-04K00

$37.15

11

CUSHION

09320-09010

$2.84

12

SPACER (6.5X9X10)

09180-06307

$3.05

13

BOLT (6X25)

09116-06131

$2.36

14

NUT

09148-06020

$4.38

15

BOLT (6X12)

09111-06107

$2.60

16

COVER,HEADLAMP REAR RH

51842-04K00

$12.97

17

COVER,HEADLAMP REAR LH

51843-04K00

$16.00
