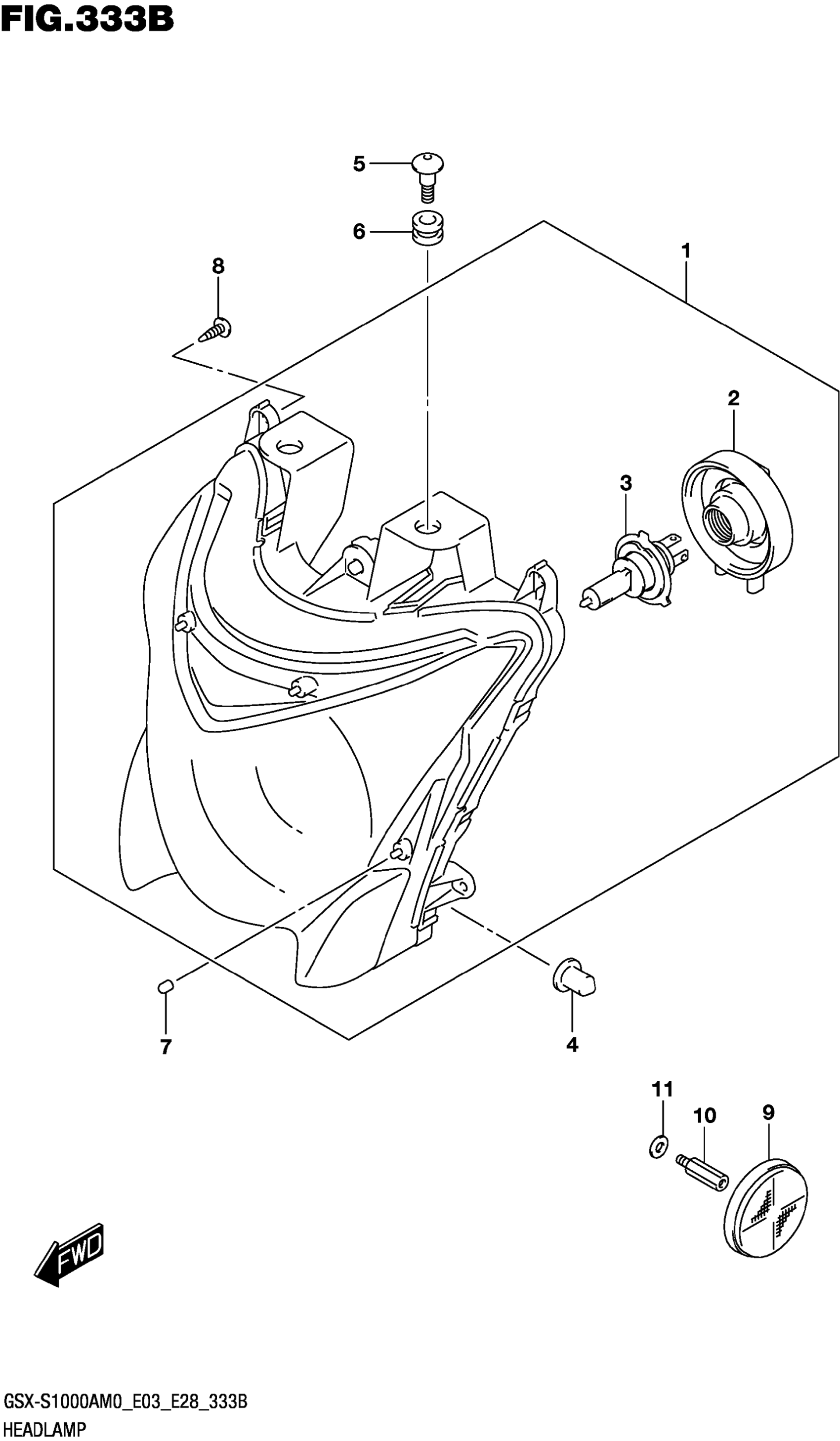

Suzuki GSX-S1000AM0 (2020) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-04K10.

35100-04K11

$381.83

2

.COVER

35152-04K00

$22.17

3

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

4

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

5

SCREW (6X20)

09139-06126

$4.04

6

CUSHION (9X18X10)

09320-09501

$2.03

7

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.30

8

SCREW

03541-0516A

$1.49

9

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

10

BOLT

09119-06109

$13.28

11

WASHER (8.5X18X1.0)

09160-08043

$1.83
