2020 Suzuki GSX-S1000AM0 Handle Switch Diagram

← All diagrams

Find the part on the Handle Switch diagram for your 2020 Suzuki GSX-S1000AM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

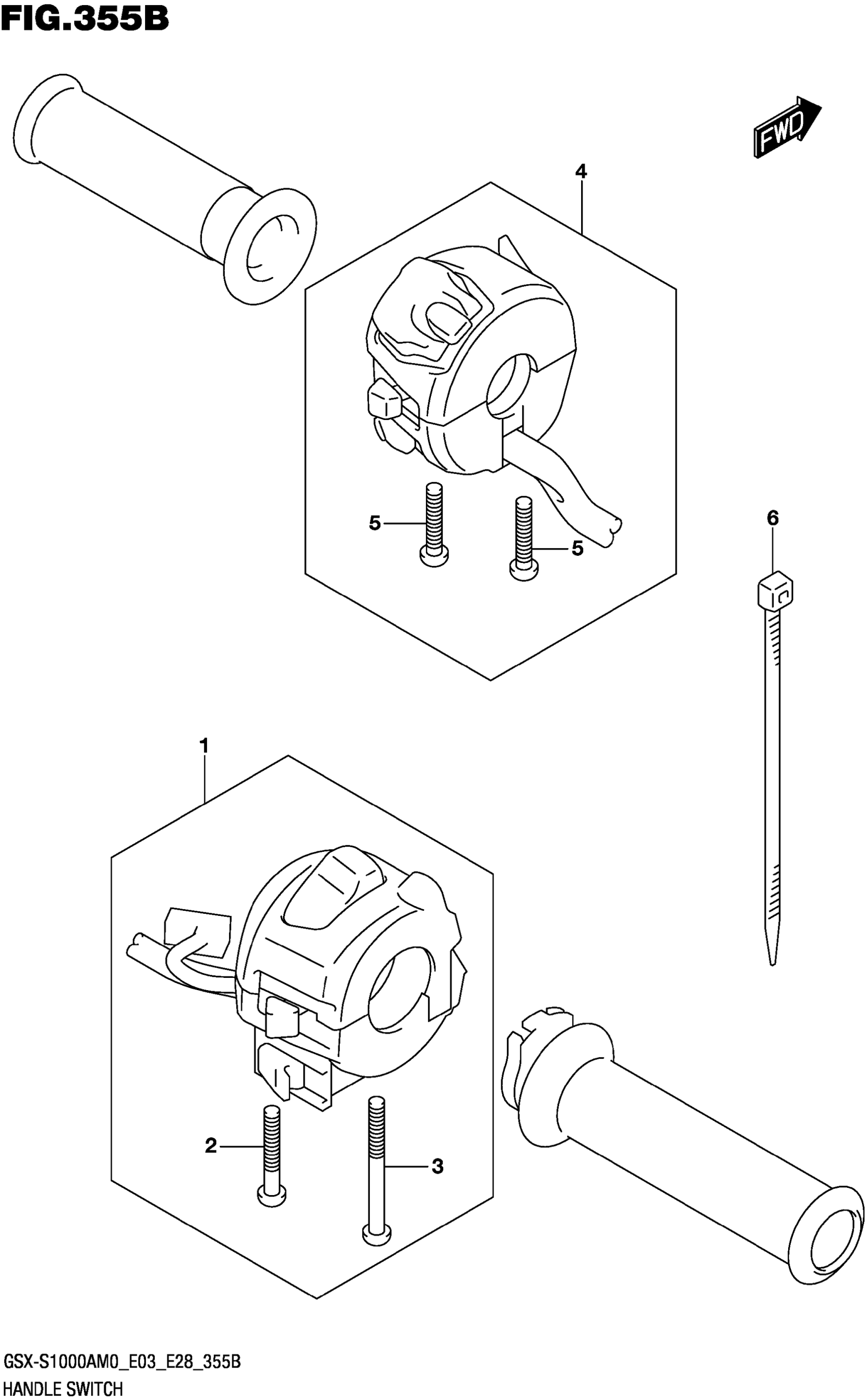

2020 Suzuki GSX-S1000AM0 Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY,HANDLE RH

37200-04K23

—
Out of stock

2

.SCREW

02112-0530B

1
Out of stock

3

.SCREW

02112-0550B

1
Out of stock

4

SWITCH ASSY,HANDLE LH

37400-04KC0

1
Out of stock

5

.SCREW

02112-0525B

2
Out of stock

6

CLAMP (L:145)

09407-14407

2
Out of stock
