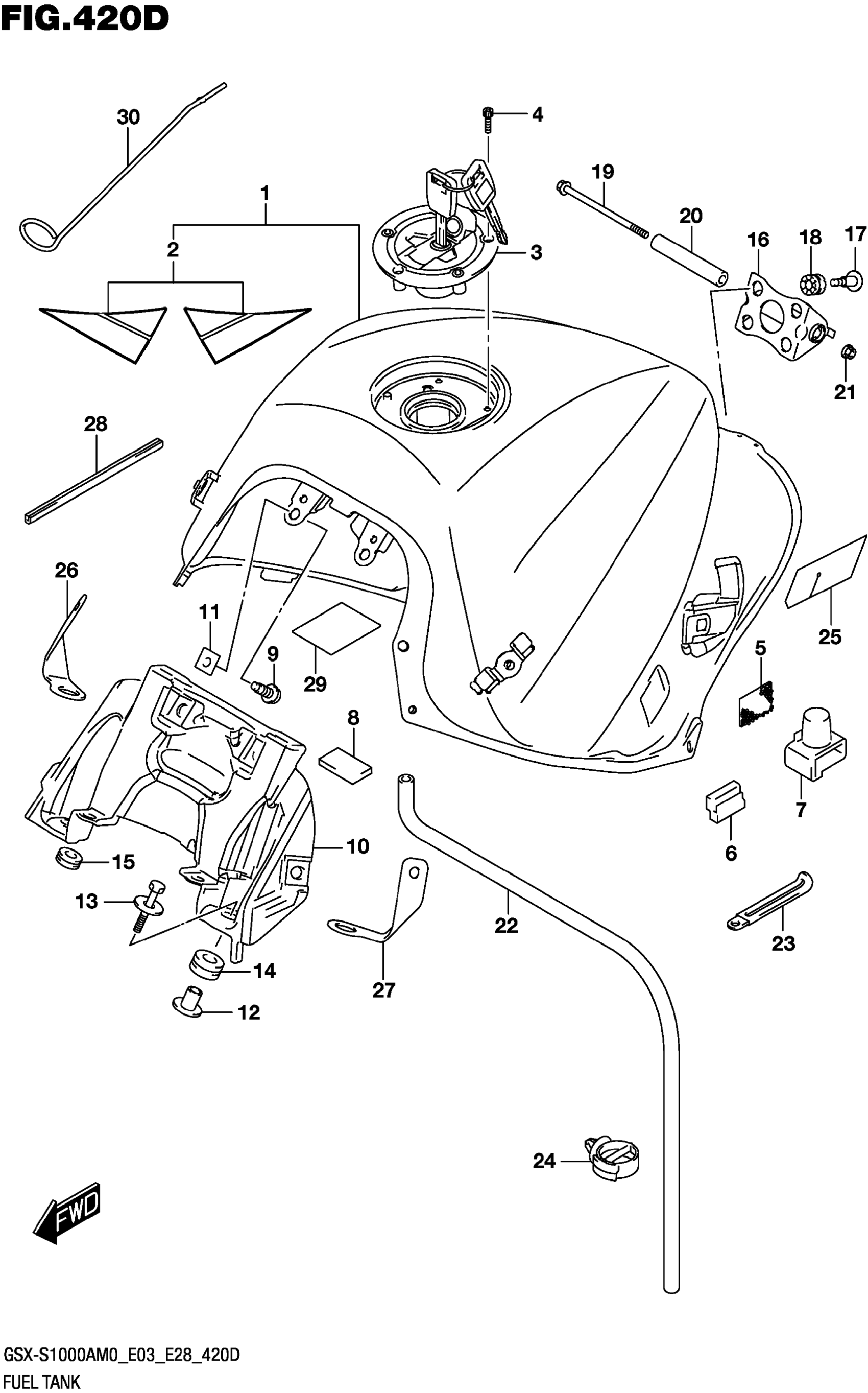

Suzuki GSX-S1000AM0 (2020) FUEL TANK (GSX-S1000ZA) 420D Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLUE) | FOR YSF

44100-04K70-YSF

$1,254.95

1-2

TANK ASSY,FUEL (WHITE) | FOR YWW

44100-04K70-YWW

Unavailable

1-3

TANK ASSY,FUEL (GRAY) | FOR BN8

44100-04K70-QEB

$1,183.90

2-1

.TAPE SET,FUEL TANK (WHITE/BL | E/YELLOW) FOR YSF

68110-04K20-A3F

Unavailable

2-2

.TAPE SET,FUEL TANK (BLUE/BLA | K/WHITE) FOR YWW

68110-04K20-BVC

Unavailable

2-3

.TAPE SET,FUEL TANK | FOR BN8

68110-04K20-B4S

Unavailable

3

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

FASTENER (33X25X2.6)

44572-13G00

$10.13

6

CUSHION, FUEL TANK SIDE

44541-41G00

$5.47

7

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$10.00

8

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

9

SCREW, FUEL TANK FRONT BRKT

44543-04K00

Unavailable

10

BRACKET, FUEL TANK FRONT

44521-04K00

$106.70

11

NUT (M6)

44523-47H00

$13.30

12

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

13

BOLT (6X30)

09116-06172

$2.50

14

CUSHION (10X22X13)

09320-10050

$3.07

15

CUSHION (6X18X6)

09320-06504

$4.47

16

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

17

SCREW (6X24)

09139-06203

Unavailable

18

CUSHION (8X18X16)

09320-08089

Unavailable

19

BOLT (6X100)

09103-06060

$2.61

20

SPACER,FUEL TANK RR

44561-18G00

$15.52

21

NUT (M6)

09159-06076

$2.80

22

HOSE, FUEL TANK DRAIN NO.2

44423-04K11

$21.18

23

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

24

CLAMP

09403-20307

Unavailable

25

PROTECTOR, FUEL TANK

44283-06J00

$6.90

26

BRACKET, FUEL TANK FRONT RH

44561-04K00

$10.68

27

BRACKET, FUEL TANK FRONT LH

44571-04K00

$10.68

28

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

29

CUSHION,FUEL TANK

44281-04K00

$6.08

30

STAY, FUEL TANK | OPT

44560-23H00

$50.73
