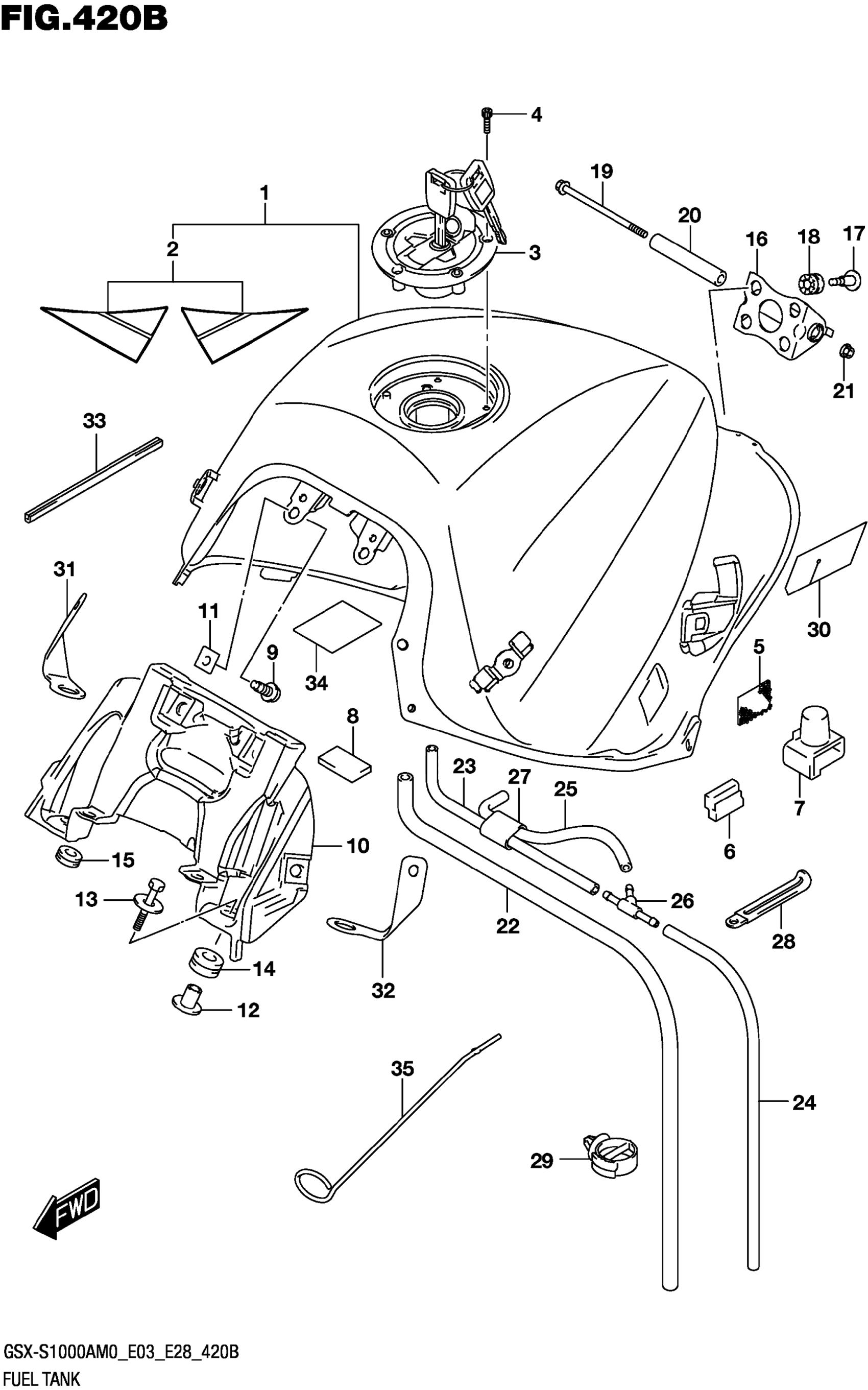

Suzuki GSX-S1000AM0 (2020) FUEL TANK (GSX-S1000ZA) 420B Diagram

TANK ASSY,FUEL (BLUE) | FOR YSF

44100-04K70-YSF

$1,149.42

TANK ASSY,FUEL (WHITE) | FOR YWW

44100-04K70-YWW

Unavailable

TANK ASSY,FUEL (GRAY) | FOR BN8

44100-04K70-QEB

$1,149.42

.TAPE SET,FUEL TANK (WHITE/BL | E/YELLOW) FOR YSF

68110-04K20-A3F

Unavailable

.TAPE SET,FUEL TANK (BLUE/BLA | K/WHITE) FOR YWW

68110-04K20-BVC

Unavailable

.TAPE SET,FUEL TANK | FOR BN8

68110-04K20-B4S

Unavailable

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

FASTENER (33X25X2.6)

44572-13G00

$11.07

CUSHION, FUEL TANK SIDE

44541-41G00

$5.98

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$8.87

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

SCREW, FUEL TANK FRONT BRKT

44543-04K00

$4.22

BRACKET, FUEL TANK FRONT

44521-04K00

$94.98

NUT (M6)

44523-47H00

$10.02

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

BOLT (6X30)

09116-06172

$2.50

CUSHION (10X22X13)

09320-10050

$3.35

CUSHION (6X18X6)

09320-06504

$4.96

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

SCREW (6X24)

09139-06203

Unavailable

CUSHION (8X18X16)

09320-08089

Unavailable

BOLT (6X100)

09103-06060

$2.50

SPACER,FUEL TANK RR

44561-18G00

$16.96

NUT (M6)

09159-06076

$2.81

HOSE, FUEL TANK DRAIN NO.1

44423-04K01

Unavailable

HOSE, FUEL TANK BRTHR NO.1

44424-04K01

$10.38

HOSE (5X8.2X530)

09352-50005-530

Unavailable

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

3 WAY

09367-06007

$3.46

HOSE

09352-12164-010

Unavailable

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

CLAMP

09403-20307

Unavailable

PROTECTOR, FUEL TANK

44283-06J00

$6.10

BRACKET, FUEL TANK FRONT RH

44561-04K00

$9.47

BRACKET, FUEL TANK FRONT LH

44571-04K00

$9.47

MOLDING,FUEL TANK (L:110)

44552-24B00

$14.08

CUSHION,FUEL TANK

44281-04K00

$5.38

STAY, FUEL TANK | OPT

44560-23H00

$44.95
