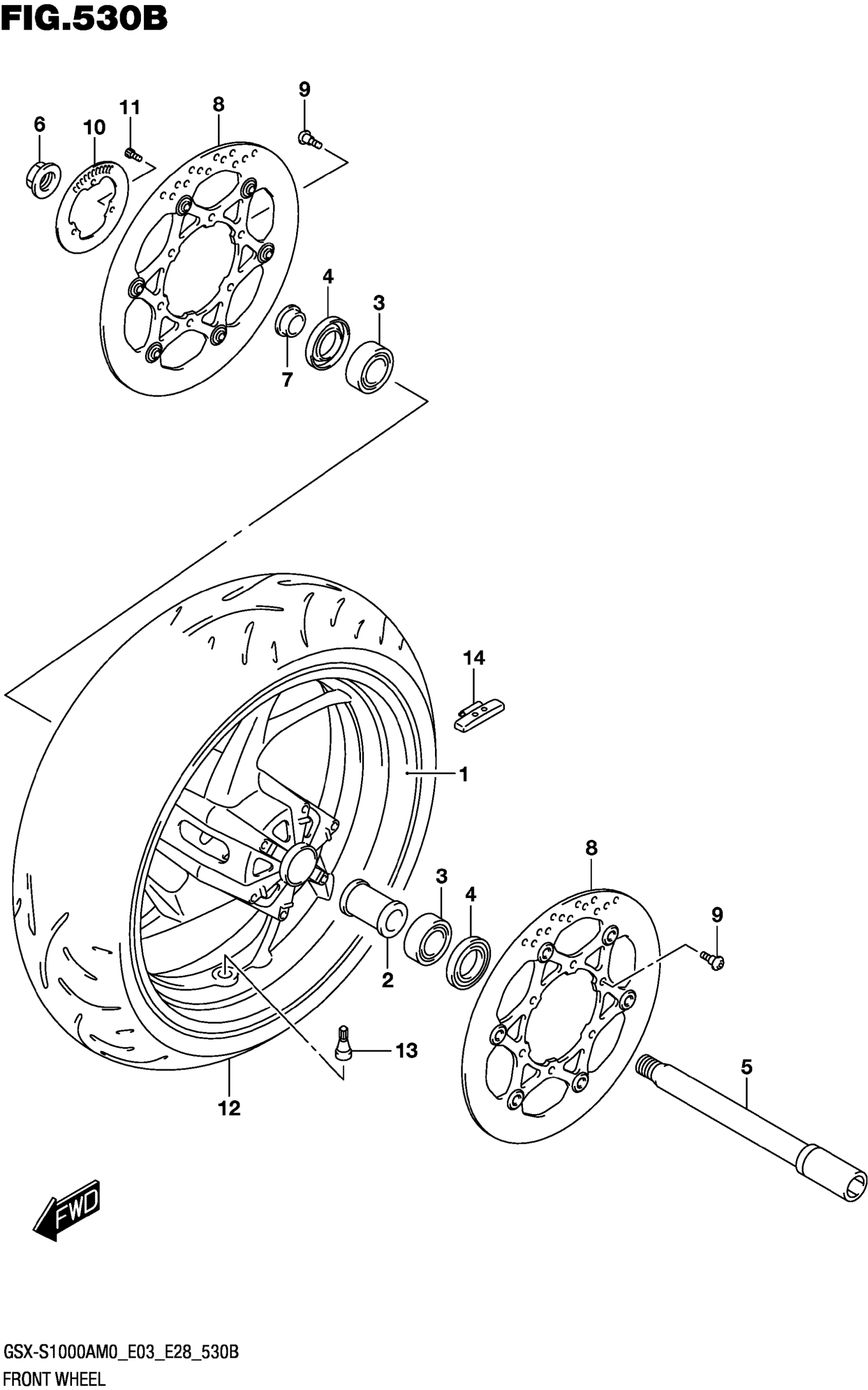

Suzuki GSX-S1000AM0 (2020) FRONT WHEEL (GSX-S1000A) Diagram

WHEEL,FRONT (17M/CXMT3.50,BLA | K) This part replaces 54111-04K02-019.

54111-04K30-019

$644.58

SPACER,FR HUB BEARING

54731-14J00

$21.58

BEARING This part replaces 09262-22035.

09262-22049

$43.81

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

AXLE,FR

54711-14J00

$143.18

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

SPACER,FR AXLE,L

54751-14J00

$18.33

DISC, FRONT BRAKE

59210-04K00

$330.48

BOLT (6X21)

09106-06124

$3.42

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

BOLT

07130-0512A

$2.19

TIRE,FR(120/70R | ) This part replaces 55110-04K00.

55110-04K02

$262.18

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

BALANCER,WHEEL (10G)

55411-22H00

$8.60

BALANCER,WHEEL (20G)

55412-22H00

$10.07

BALANCER,WHEEL (30G)

55413-22H00

$11.47
