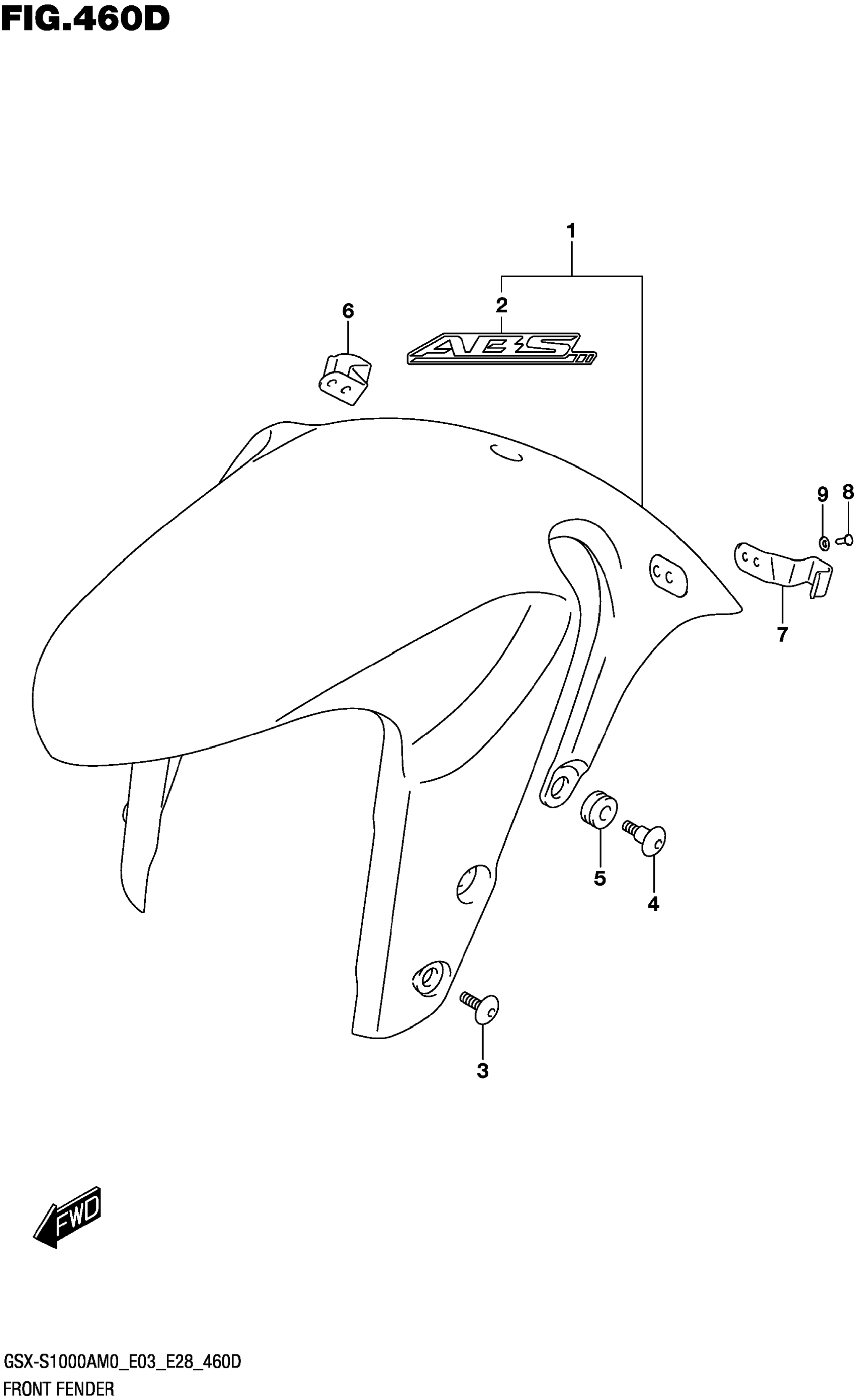

Suzuki GSX-S1000AM0 (2020) FRONT FENDER (GSX-S1000ZA) Diagram

#

Description

Price

1-1

FENDER,FRONT(BL | FOR YSF This part replaces 53100-04K40-YSF.

53100-04K41-YSF

$166.10

1-2

FENDER,FRONT | FOR YWW This part replaces 53100-04K40-YWW.

53100-04K41-YWW

$182.83

1-3

FENDER,FRONT (GRAY) | FOR QEB

53100-04K40-QEB

$162.05

2

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.60

3

SCREW (6X16)

09139-06169

$3.10

4

SCREW (6X20)

09139-06190

$4.17

5

CUSHION (9X18X9.5)

09320-09016

$1.97

6

CLAMP, BRAKE HOSE RH

53117-04K00

$5.02

7

CLAMP, BRAKE HOSE LH

53118-04K00

$5.02

8

RIVET

09229-04038

$1.49

9

WASHER

08322-0104B

$1.49
