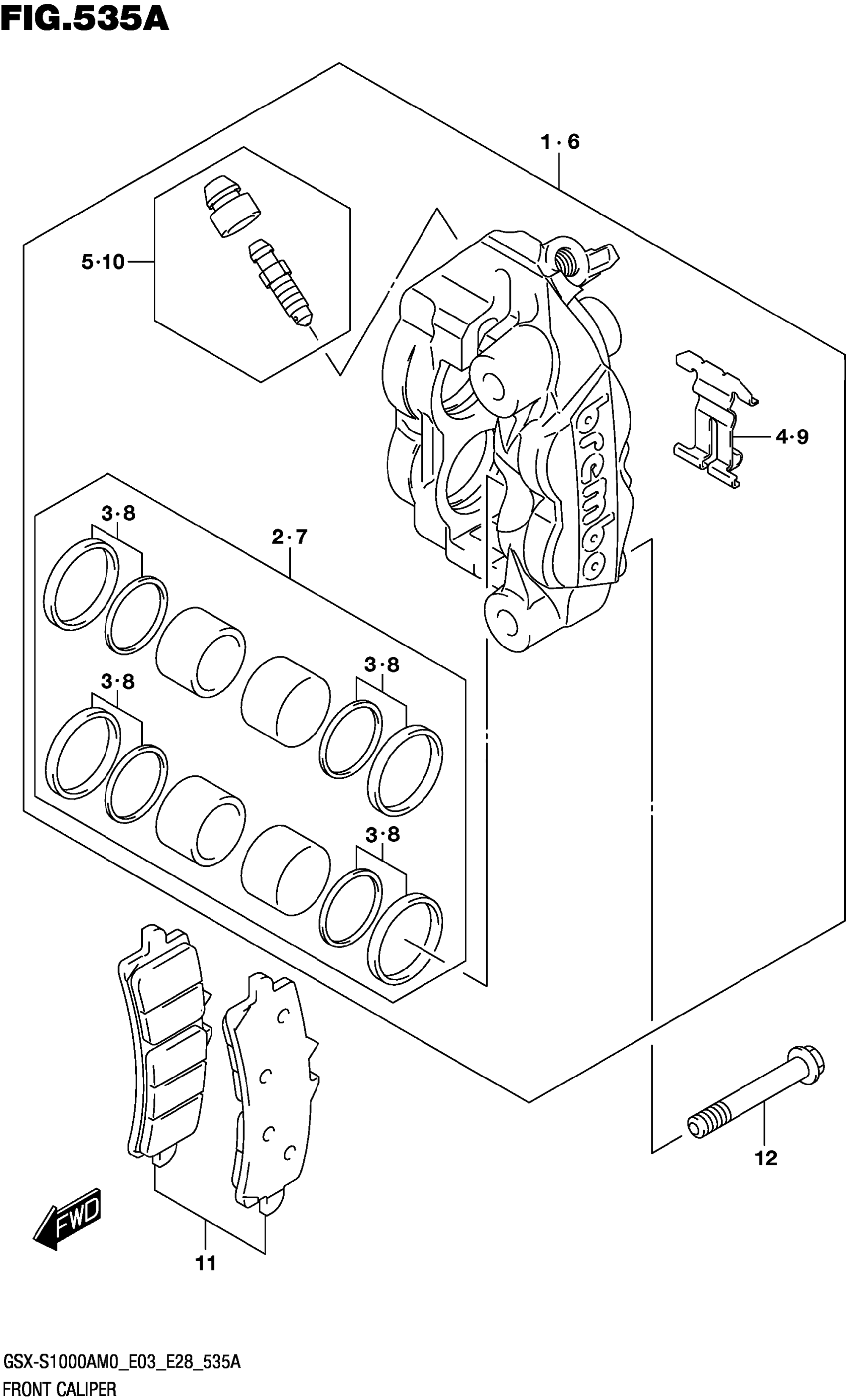

Suzuki GSX-S1000AM0 (2020) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,L

59300-17K00-999

$380.12

2

.PISTON SET

59100-14810

$101.95

3

..SEAL SET,PISTON

59100-14820

$63.34

4

.SPRING

59151-14J00

$23.43

5

.BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY,FRONT,R

59100-17K00-999

$380.12

7

.PISTON SET

59100-14810

$101.95

8

..SEAL SET,PISTON

59100-14820

$63.34

9

.SPRING

59151-14J00

$23.43

10

.BLEEDER SET

59100-14840

$25.21

11

PAD (T4.0)

59100-14850

$59.36

12

BOLT (10X70)

09103-10450

$4.90
