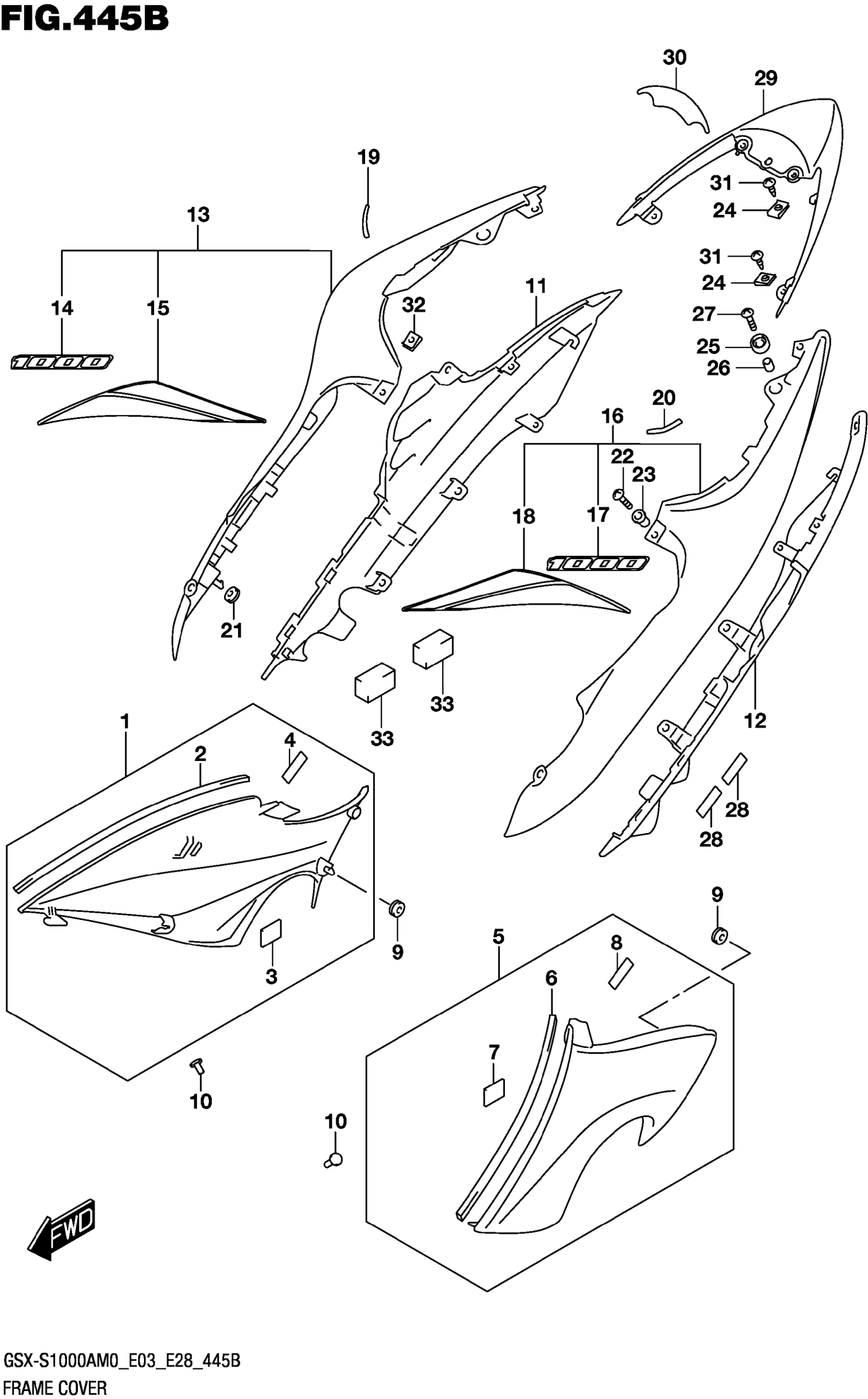

Suzuki GSX-S1000AM0 (2020) FRAME COVER (GSX-S1000ZA) Diagram

#

Description
Price

1

COVER,FRAME FRONT RH

47110-04K00

$66.88

2

.CUSHION,FUEL TANK COVER

44277-37H00

$5.18

3

FASTENER (33X25X2.6) | )

44572-13G00

$11.07

4

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

5

COVER,FRAME FRONT LH

47210-04K00

$51.73

6

.CUSHION,FUEL TANK COVER

44277-37H00

$5.18

7

FASTENER (33X25X2.6) | )

44572-13G00

$11.07

8

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

9

CUSHION (6X18X6)

09320-06504

$4.96

10

CLIP

09409-10314

$1.97

11

COVER,FRAME RR LWR RH

47131-04K00

$20.83

12

COVER,FRAME RR LWR LH

47231-04K00

$21.22

13-1

COVER,FRAME RR UPR RH (BLUE) | FOR YSF

47120-04K40-YSF

$133.53

13-2

COVER,FRAME RR UPR RH (WHITE) | FOR YWW

47120-04K40-YWW

Unavailable

13-3

COVER,FRAME RR UPR RH (BLACK) | FOR BN8

47120-04K40-YKV

$141.15

14-1

.EMBLEM,"1000" RH (BLUE/WHITE | FOR YSF

68131-04K10-AGQ

Unavailable

14-2

.EMBLEM,"1000" RH (WHITE/BLAC | ) FOR YWW

68131-04K10-AR9

Unavailable

14-3

.EMBLEM,"1000" RH | FOR BN8

68131-04K10-BN8

Unavailable

15-1

.TAPE,FRAME COVER RH (WHITE/B | UE/YELLOW) FOR YSF

68135-04K70-A3F

Unavailable

15-2

.TAPE,FRAME COVER RH (BLUE/BL | CK/WHITE) FOR YWW

68135-04K70-BVC

Unavailable

15-3

.TAPE,FRAME COVER RH | FOR BN8

68135-04K70-B4T

Unavailable

16-1

COVER,FRAME RR UPR LH (BLUE) | FOR YSF

47220-04K40-YSF

$133.53

16-2

COVER,FRAME RR UPR LH (WHITE) | FOR YWW

47220-04K40-YWW

Unavailable

16-3

COVER,FRAME RR UPR LH (BLACK) | FOR BN8

47220-04K40-YKV

$146.55

17-1

.EMBLEM,"1000" LH (BLUE/WHITE | FOR YSF

68141-04K10-AGQ

Unavailable

17-2

.EMBLEM,"1000" LH (WHITE/BLAC | ) FOR YWW

68141-04K10-AR9

$26.73

17-3

.EMBLEM,"1000" LH | FOR BN8

68141-04K10-BN8

Unavailable

18-1

.TAPE,FRAME COVER LH (WHITE/B | UE/YELLOW) FOR YSF

68145-04K70-A3F

Unavailable

18-2

.TAPE,FRAME COVER LH (BLUE/BL | CK/WHITE) FOR YWW

68145-04K70-BVC

Unavailable

18-3

.TAPE,FRAME COVER LH | FOR BN8

68145-04K70-B4T

Unavailable

19

TAPE,FRAME COVER RH

47313-04K01

Unavailable

20

TAPE,FRAME COVER LH

47314-04K01

$12.73

21

CUSHION (8X26X7)

09320-08028

$3.04

22

SCREW

02142-1520B

$2.28

23

NUT (M5)

09159-05019

$7.14

24

NUT (M5)

09148-05047

$2.11

25

CUSHION (10X24X13) | 4X13) This part replaces 47312-37H00.

47312-37H10

$2.91

26

SPACER (6.5X10X7)

09180-06283

$1.91

27

SCREW (6X20)

09136-06105

$1.97

28

TAPE (6X25X0.13)

94443-06G00

$3.25

29

COVER,FRAME CENTER (BLACK)

47311-04K00-YKV

$110.62

30

TAPE,FRAME COVER CTR

47312-04K00

$12.73

31

SCREW

03541-0512B

$1.78

32

NUT (M5)

09148-05047

$2.11

33

CUSHION,RDTR COVER INNER | CUT AS REQUIRED

17798-39G00

$6.49
