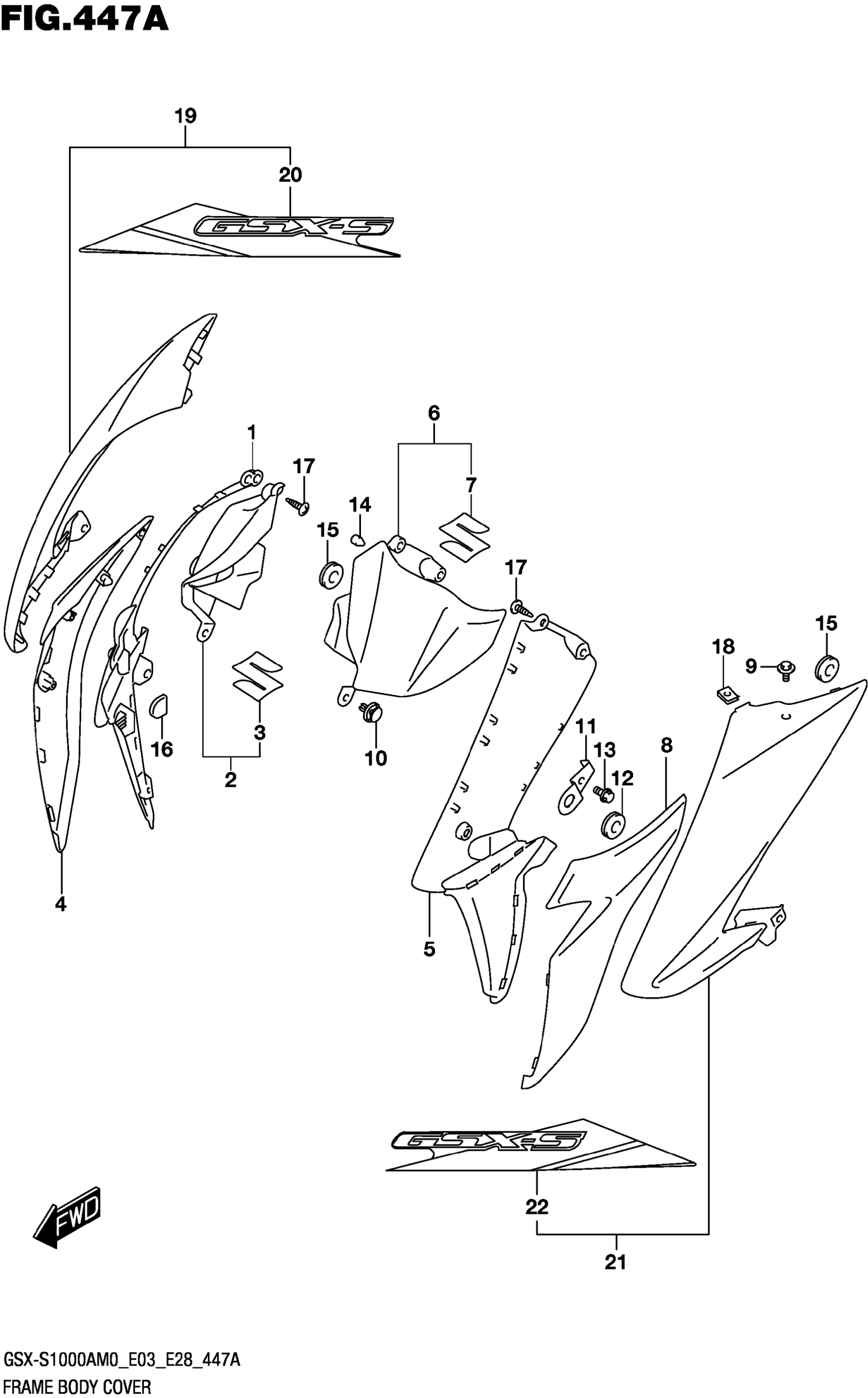

Suzuki GSX-S1000AM0 (2020) FRAME BODY COVER (GSX-S1000ZA) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$28.17

2

COVER ASSY,INTAKE RH

47570-04K00

$56.37

3

EMBLEM, S

68111-47HA0

$37.02

4-1

COVER,FRAME BODY LWR RH (BLUE | FOR YSF

47533-04K00-YSF

$69.83

4-2

COVER,FRAME BODY LWR RH(WHITE | FOR YWW

47533-04K00-YWW

$81.17

4-3

COVER,FRAME BODY LWR RH(BLACK | FOR BN8

47533-04K00-YKV

$79.00

5

COVER,FRAME BODY INNER LH

47541-04K00

$31.75

6

COVER ASSY,INTAKE LH

47580-04K00

$57.45

7

EMBLEM, S

68111-47HA0

$37.02

8-1

COVER,FRAME BODY LWR LH (BLUE | FOR YSF

47543-04K00-YSF

$64.33

8-2

COVER,FRAME BODY LWR LH(WHITE | FOR YWW

47543-04K00-YWW

Unavailable

8-3

COVER,FRAME BODY LWR LH(BLACK | FOR BN8

47543-04K00-YKV

$79.00

9

SCREW (5X13)

09139-05064

$2.56

10

CLIP

94479-35F00

$5.14

11

BRACKET, FRAME BODY COVER

47539-04K00

$12.33

12

CUSHION (8x26x7)

09320-08018

$2.80

13

BOLT

01547-0612B

$1.22

14

CUSHION

09321-06036

$1.52

15

CUSHION (6X18X6)

09320-06504

$4.47

16

CUSHION

09329-18001

$1.89

17

SCREW

03541-0516A

$1.37

18

NUT (M5)

09148-05052

$3.04

19-1

COVER,FRAME BODY RH (BLUE) | FOR YSF

47510-04K50-YSF

Unavailable

19-2

COVER,FRAME BODY RH (WHITE) | FOR YWW

47510-04K50-YWW

Unavailable

19-3

COVER,FRAME BODY RH (GRAY) | FOR BN8

47510-04K50-QEB

$137.22

20-1

.TAPE,FRAME BODY COVER RH | (YELLOW/WHITE/SILVER/RED/BLUE FOR YSF

68135-04K80-BUK

Unavailable

20-2

.TAPE,FRAME BODY COVER RH | (BLUE/BLACK/RED/WHITE) FOR YWW

68135-04K80-BUL

Unavailable

20-3

.TAPE,FRAME BODY COVER RH | FOR BN8

68135-04K80-B4Y

Unavailable

21-1

COVER,FRAME BODY LH (BLUE) | FOR YSF

47520-04K50-YSF

$133.85

21-2

COVER,FRAME BODY LH (WHITE) | FOR YWW

47520-04K50-YWW

Unavailable

21-3

COVER,FRAME BODY LH (GRAY) | FOR BN8

47520-04K50-QEB

$137.22

22-1

.TAPE,FRAME BODY COVER LH | (YELLOW/WHITE/SILVER/RED/BLUE FOR YSF

68145-04K80-BUK

Unavailable

22-2

.TAPE,FRAME BODY COVER LH | (BLUE/BLACK/RED/WHITE) FOR YWW

68145-04K80-BUL

Unavailable

22-3

.TAPE,FRAME BODY COVER LH | FOR BN8

68145-04K80-B4Y

Unavailable
