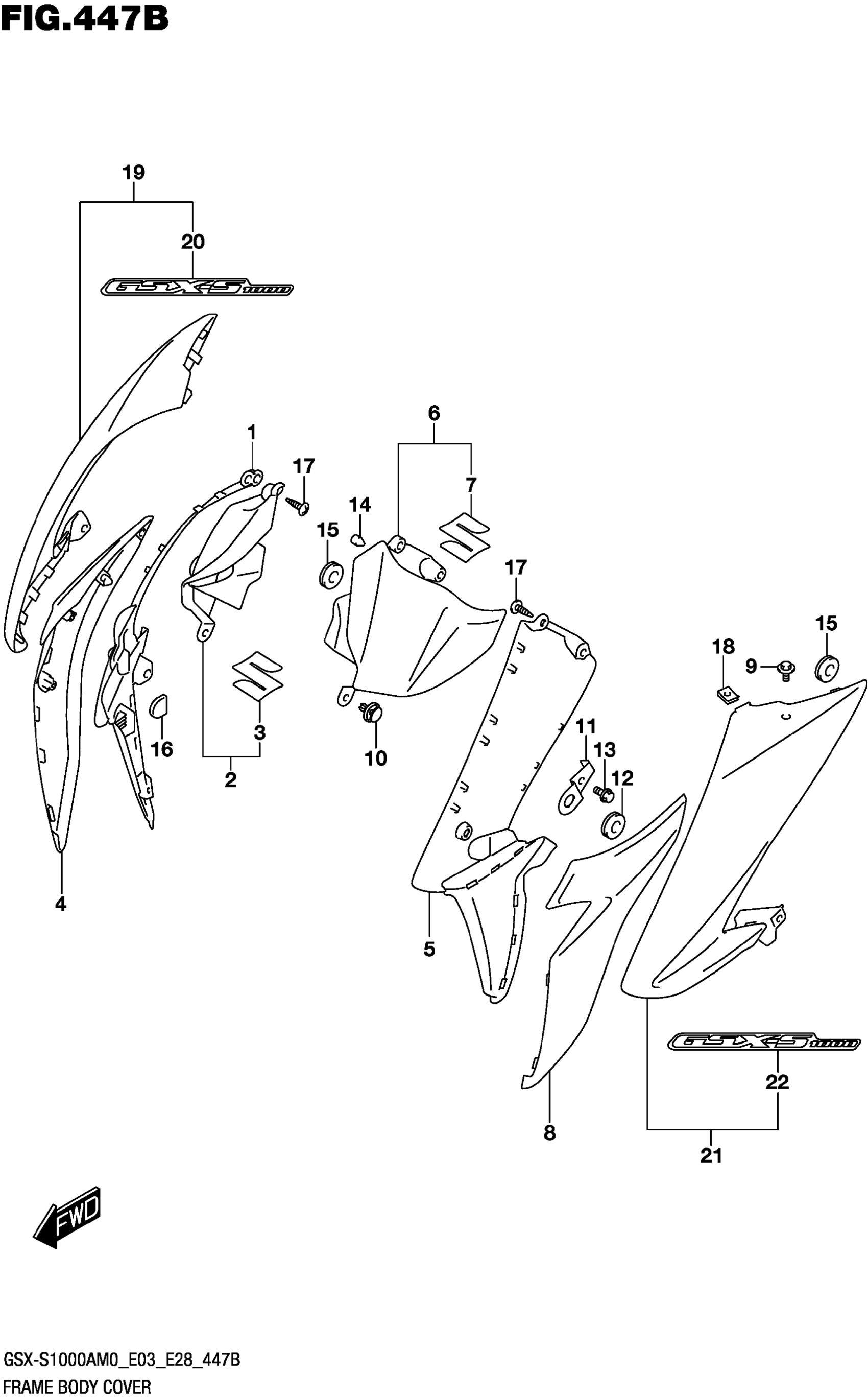

Suzuki GSX-S1000AM0 (2020) FRAME BODY COVER (GSX-S1000A) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-04K00

$28.17

2

COVER ASSY,INTAKE RH

47570-04K00

$56.37

3

EMBLEM, S

68111-47HA0

$37.02

4

COVER,FRAME BODY LWR RH(BLACK

47533-04K00-YKV

$79.00

5

COVER,FRAME BODY INNER LH

47541-04K00

$31.75

6

COVER ASSY,INTAKE LH

47580-04K00

$57.45

7

EMBLEM, S

68111-47HA0

$37.02

8

COVER,FRAME BODY LWR LH(BLACK

47543-04K00-YKV

$79.00

9

SCREW (5X13)

09139-05064

$2.56

10

CLIP

94479-35F00

$5.14

11

BRACKET, FRAME BODY COVER

47539-04K00

$12.33

12

CUSHION (8x26x7)

09320-08018

$2.80

13

BOLT

01547-0612B

$1.22

14

CUSHION

09321-06036

$1.52

15

CUSHION (6X18X6)

09320-06504

$4.47

16

CUSHION

09329-18001

$1.89

17

SCREW

03541-0516A

$1.37

18

NUT (M5)

09148-05052

$3.04

19

COVER,FRAME BODY RH(BLACK)

47510-04K00-YKV

Unavailable

20

.EMBLEM,FRAME BODY COVER

68131-04K00-B4R

Unavailable

21

COVER,FRAME BODY LH(BLACK)

47520-04K00-YKV

Unavailable

22

.EMBLEM,FRAME BODY COVER

68131-04K00-B4R

Unavailable
