2020 Suzuki GSX-S1000AM0 Crankcase Diagram

← All diagrams

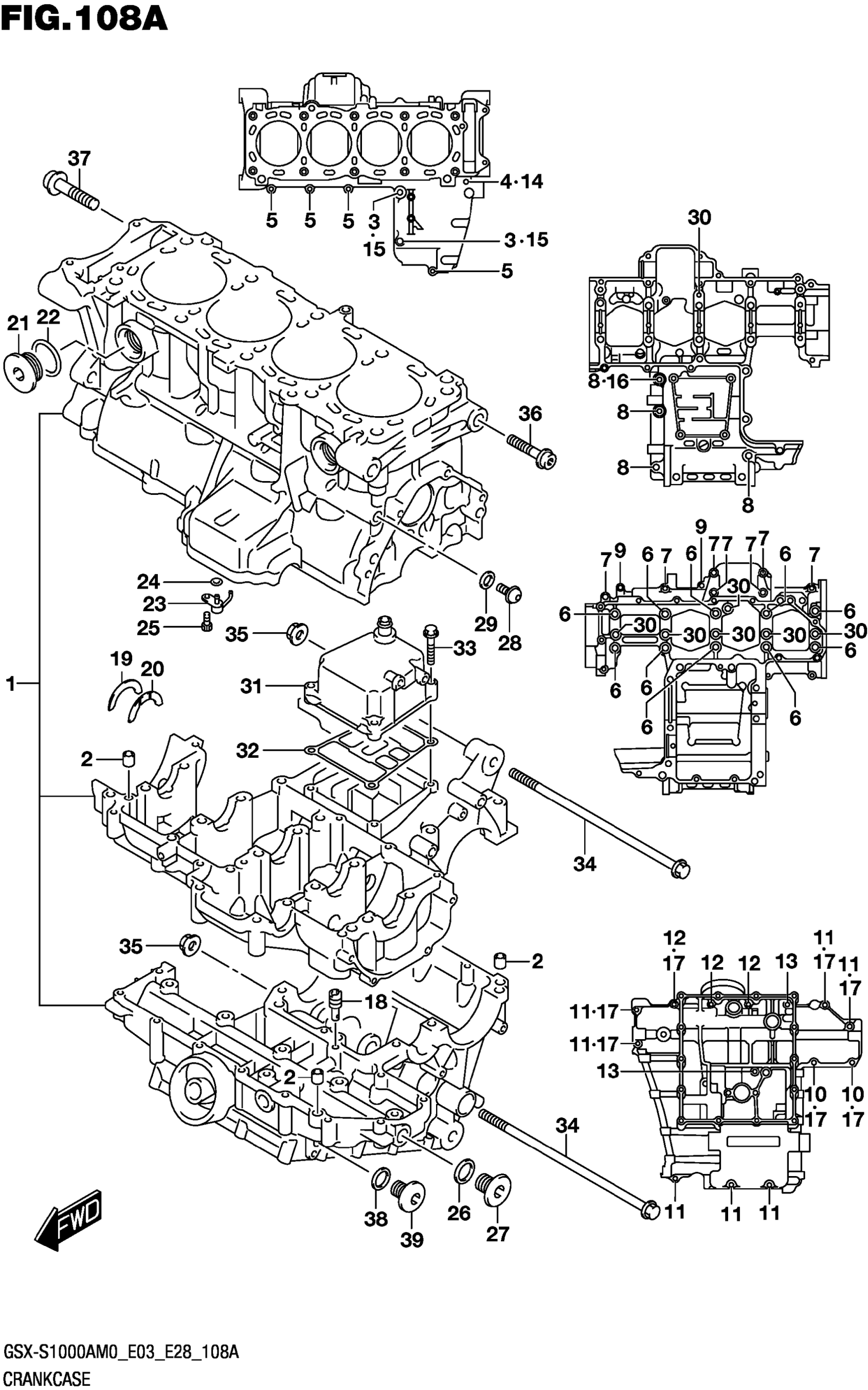

Find the part on the Crankcase diagram for your 2020 Suzuki GSX-S1000AM0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Suzuki GSX-S1000AM0 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-04850

1

$4,376.37

In stock

2

PIN,CRANKCASE

11319-33E50

6

$5.45

In stock

3

.BOLT (8X120)

09106-08198

—
Out of stock

4

.BOLT

01547-0680A

1
Out of stock

5

BOLT

01547-0630A

2

$2.48

In stock

6

BOLT

01547-0640A

13
Out of stock

7

BOLT

01547-0660A

3

$2.92

In stock

8

.BOLT

01547-0670A

2
Out of stock

9

.BOLT (9X95)

09103-09012

10

$8.52

In stock

10

.BOLT (8X55)

09103-08339

7

$3.43

In stock

11

.BOLT

07120-0865A

4

$5.17

In stock

12

GASKET (5.8X13X1.2)

09168-06023

8
Out of stock

13

GASKET (8.2X14X1)

09168-08016

3
Out of stock

14

JET (#140)

09493-28012

1
Out of stock

15-1

.BEARING,CRANK THRUST

12228-48B00-0E0

1

$9.58

In stock

15-2

.BEARING,CRANK THRUST

12228-48B00-0B0

1

$13.05

In stock

15-3

.BEARING,CRANK THRUST

12228-48B00-0C0

1

$12.82

In stock

15-4

.BEARING,CRANK THRUST

12228-48B00-0D0

1

$13.30

In stock

16-1

.BEARING,CRANK THRUST

12228-48B00-0E0

1

$9.58

In stock

16-2

.BEARING,CRANK THRUST

12228-48B00-0F0

1

$13.30

In stock

16-3

.BEARING,CRANK THRUST

12228-48B00-0G0

1

$13.30

In stock

16-4

.BEARING,CRANK THRUST

12228-48B00-0H0

1

$12.82

In stock

17

.PLUG,WATER JACKET

11318-35F00

3

$18.93

In stock

18

3

$2.06

In stock

19

JET, PISTON COOLING

11390-21H01

4

$48.75

In stock

20

.O-RING (D:1.9,ID:13)

09280-13004

2
Out of stock

21

O-RING (D:1.2,ID:4)

09280-04004

4

$2.03

In stock

22

BOLT (6X12)

09106-06075

4
Out of stock

23

GASKET (16X22X2)

09168-16002

4
Out of stock

24

PLUG (16X12)

09248-16013

4

$4.75

In stock

25

PLUG (10X10)

09248-10010

1
Out of stock

26

GASKET (10X14X3.6)

09168-10002

1

$2.27

In stock

27

O-RING (D:1.9,ID:7.8)

09280-08012

7

$3.56

In stock

28

COVER, BREATHER

11370-04K00

1
Out of stock

29

1

$4.93

In stock

30

BOLT

01547-0630A

4

$2.48

In stock

31

BOLT (10X225)

09103-10205

2
Out of stock

32

NUT (M10)

09159-10115

2
Out of stock

33

BOLT (10X45)

09106-10069

2

$4.10

In stock

34

BOLT (10X55)

09106-10070

2

$4.10

In stock

35

GASKET (13.8X18.8X4.8)

09168-14002

2
Out of stock

36

PLUG (14X12)

09248-14011

2
Out of stock

37

PIPE, OIL GALLERY

11281-44G00

1

$15.63

In stock
