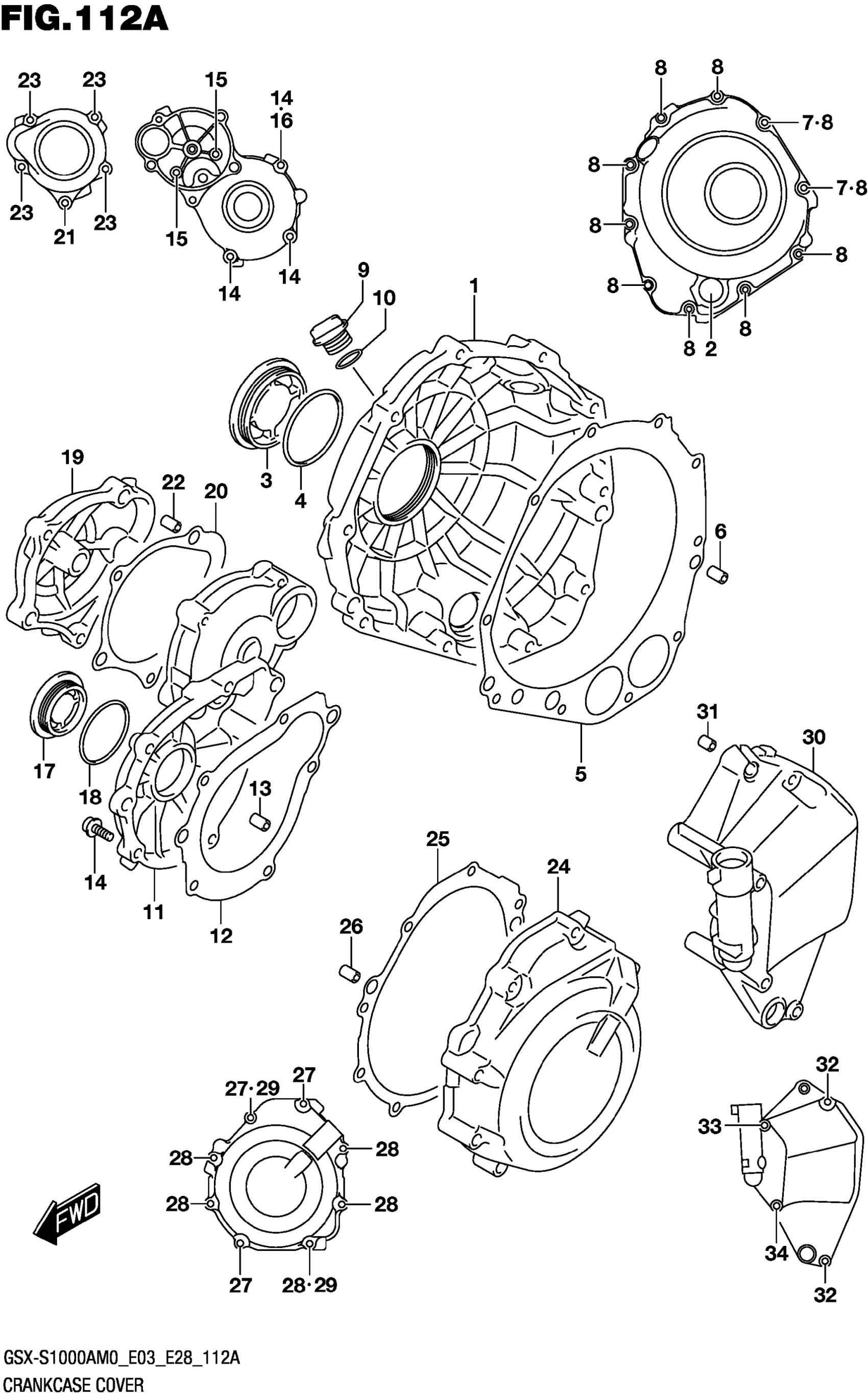

Suzuki GSX-S1000AM0 (2020) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-04K00

$270.63

2

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

3

CAP,CLUTCH RELEASE ADJUST

11342-41G10

$22.92

4

O-RING (D:2.4,ID:52.6)

31156-17E00

$4.21

5

.GASKET, CLUTCH COVER

11482-40F10

$14.36

6

PIN

04211-09189

$1.64

7

GASKET (5.8X13X1.2)

09168-06023

$2.01

8

BOLT (6X30)

09103-06529

$1.83

9

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

10

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

11

COVER, STARTER CLUTCH

11381-04K00

$191.48

12

.GASKET, STARTER CLUTCH COVER

11491-33E02

$7.99

13

PIN (8.5X18X2.3)

04211-09149

$1.64

14

BOLT (6X25) | 5)

09103-06528

$1.78

15

BOLT (L:35)

09103-06530

$1.68

16

GASKET (5.8X13X1.2)

09168-06023

$2.01

17

PLUG (36X10)

09259-36021

$12.45

18

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

19

CAP, STARTER IDLE GEAR

11382-04K00

$50.54

20

.GASKET, START IDLE GR CAP

11492-04K00

$6.60

21

BOLT (6X60)

09103-06535

$3.13

22

PIN (8.5X18X2.3)

04211-09149

$1.64

23

BOLT (L:35)

09103-06530

$1.68

24

COVER, MAGNETO

11351-04K00

$158.23

25

.GASKET, MAGNETO COVER

11483-18G00

$10.13

26

PIN (8.5X18X2.3)

04211-09149

$1.64

27

BOLT (6X30)

09103-06529

$1.83

28

BOLT (6X40)

09103-06531

$2.58

29

GASKET (5.8X13X1.2)

09168-06023

$2.01

30

COVER,ENG SPROCKET

11361-04K00

$201.95

31

PIN

04211-09129

$1.64

32

BOLT (6X55)

09103-06534

$2.88

33

BOLT (6X95)

09103-06541

$4.08

34

BOLT (6X80)

09103-06539

$3.68
