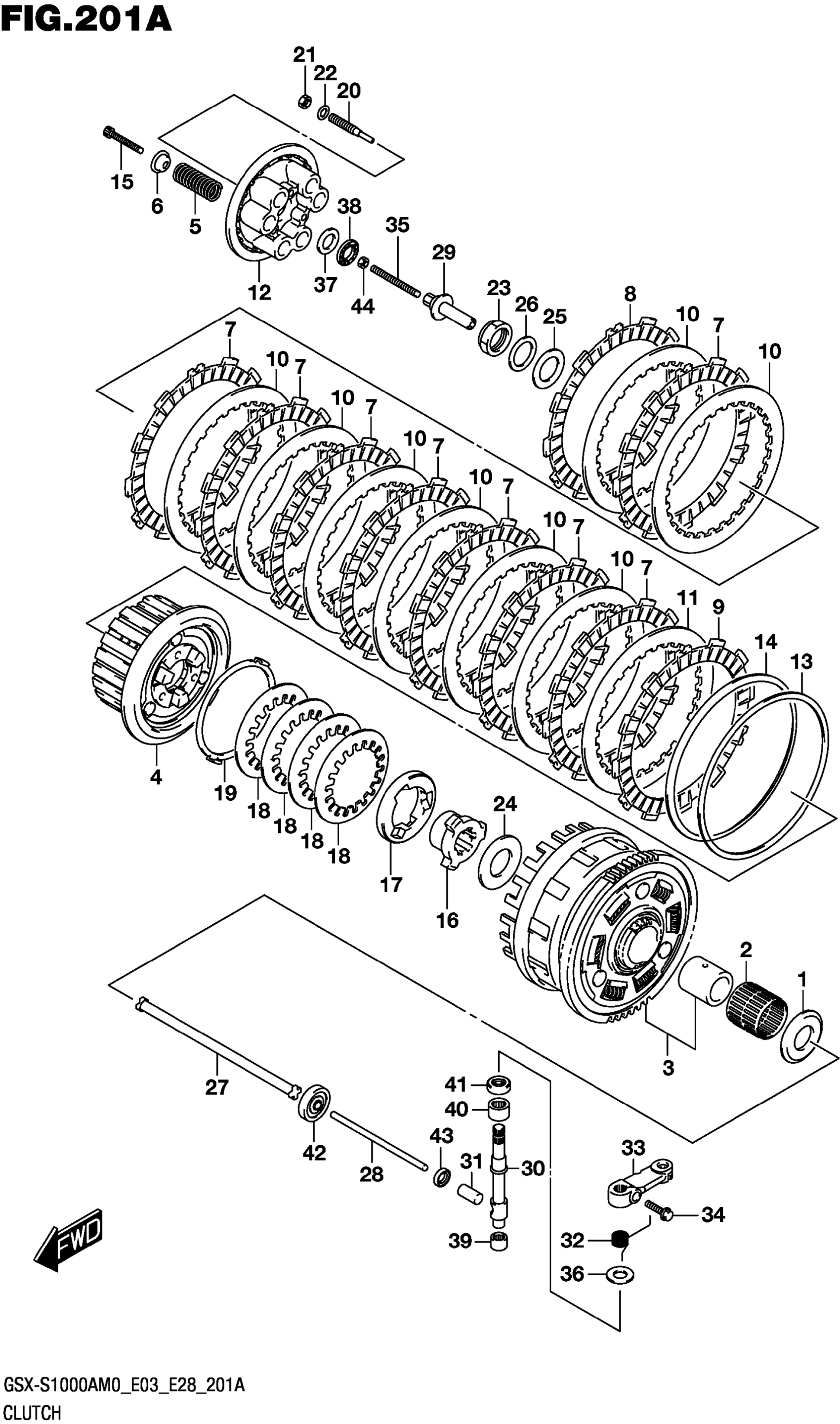

Suzuki GSX-S1000AM0 (2020) CLUTCH Diagram

#

Description
Price

1

WASHER (25X54X2.4)

09160-25073

$14.50

2

BEARING (35X40X35.8)

09263-35017

$40.54

3

GEAR ASSY, PRI DRIVEN (NT:73) | 3)

21200-40880

$520.15

4

HUB,CLUTCH SLEEVE

21410-41G20

$241.18

5

SPRING,CLUTCH

21413-41G00

$7.32

6

WASHER

21414-29F00

$6.25

7

PLATE,CLUTCH DRIVE (T:2.7)

21441-36F00

$21.16

8

PLATE,CLUTCH DRIVE (T:2.7)

21441-49H00

$34.93

9

PLATE,CLUTCH DRIVE NO.3 (T:2.

21442-41G00

$28.07

10

PLATE, CLUTCH DRIVEN (T:2.3)

21451-41G00

$13.63

11

PLATE, CLUTCH DRIVEN NO.2 | 3)

21451-41G40

$16.65

12

DISC,CLUTCH PRESSURE

21462-41G00

$78.55

13

.SEAT,WAVE WASHER

21471-41G00

$14.20

14

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$20.53

15

BOLT, CLUTCH SPRING

21482-41G10

$3.26

16

CAM,CLUTCH DRIVE

21611-41G20

$141.12

17

CAM,CLUTCH DRIVEN

21612-41G20

$119.18

18

WASHER,CAM REACTION WAVE

21621-41G00

$14.82

19

WASHER,CAM REACTION SEAT

21624-41G10

$16.13

20

LIFTER,CLUTCH PRESSURE DISC

21622-41G00

$10.50

21

NUT,CL PRESS DISC LIFTER LOCK

21623-41G00

$2.61

22

SHIM (8.8X14X1)

09181-08139

$1.91

23

NUT

09159-24010

$13.22

24

.WASHER (25X50X2.5)

09160-25056

$11.61

25

WASHER (25X41X2.5)

09160-25077

$10.48

26

WASHER (24.2X35X2.7)

09164-24008

$4.60

27

ROD,CLUTCH PUSH,R

23110-38B00

$23.19

28

ROD,CLUTCH PUSH,L

23111-35F00

$13.30

29

PIECE,CLUTCH PUSH

23121-41G00

$49.02

30

CAMSHAFT,CLUTCH RELEASE

23122-41G00

$56.90

31

CAP,CLUTCH PUSH ROD

23123-41G00

$10.93

32

SPRING,CLUTCH RELEASE RETURN

23125-41G00

$3.25

33

ARM, CLUTCH RELEASE

23271-41G60

$55.55

34

BOLT (6X20)

09103-06223

$2.47

35

SCREW (6X73)

09134-06015

$6.88

36

WASHER (10.5X24X1.0)

09160-10020

$2.05

37

WASHER (15.5X28X1)

09160-15045

$3.89

38

BEARING (15X28X2)

09263-15003

$8.29

39

BEARING (10X14X10)

09263-10014

$13.52

40

BEARING (12X18X12)

09263-12027

$7.31

41

SEAL,OIL (10X20X6)

09282-10012

$7.98

42

SEAL,OIL (6X34X10.5)

09283-06010

$16.80

43

SEAL,OIL (10X17X5)

09285-10004

$3.37

44

NUT

08310-0006A

$1.84
