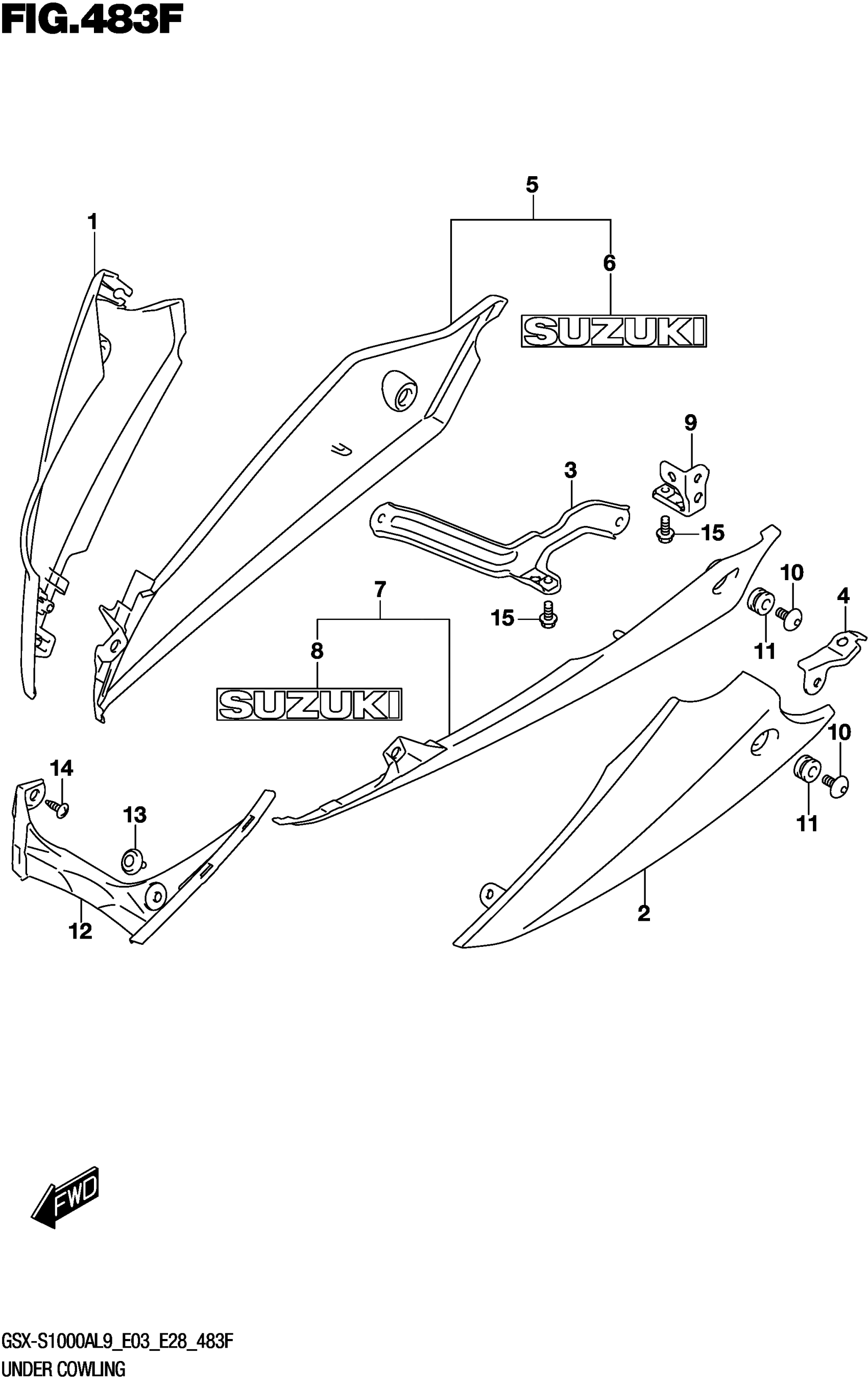

Suzuki GSX-S1000AL9 (2019) UNDER COWLING (GSX-S1000YAL9 E33) Diagram

Description

Price

COWLING,UNDER,R (BLACK)

94471-04K00-YKV

$284.17

COWLING,UNDER,L (BLACK)

94472-04K00-YKV

$284.17

BRACKET,UNDER COWL RH

94530-04K00

$50.27

BRACKET,UNDER COWL FR LH

94520-04K00

$21.40

5-1

COWLING, UNDER REAR RH (BLUE) | FOR YSF

94470-04K00-6CX

$296.42

5-2

COWLING, UNDER REAR RH (WHITE | FOR YWW

94470-04K00-YWW

$296.42

6-1

.EMBLEM, "SUZUKI" (WHITE) | FOR YSF

68181-04K00-YWW

$15.65

6-2

.EMBLEM, "SUZUKI" (BLACK) | FOR YWW

68181-04K00-019

$12.50

7-1

COWLING, UNDER REAR LH (BLUE) | FOR YSF

94480-04K00-6CX

$296.42

7-2

COWLING, UNDER REAR LH (WHITE | FOR YWW

94480-04K00-YWW

$296.42

8-1

.EMBLEM, "SUZUKI" (WHITE) | FOR YSF

68181-04K00-YWW

$15.65

8-2

.EMBLEM, "SUZUKI" (BLACK) | FOR YWW

68181-04K00-019

$12.50

BRACKET,UNDER COWL RR LH

94540-04K00

$12.05

BOLT (6X12)

09106-06117

$5.10

CUSHION (9X18X9.5)

09320-09016

$1.97

COWLING,UNDER CTR

94475-04K00

$18.12

CLIP

94479-35F00

$5.62

SCREW

03541-0516A

$1.49

BOLT

01550-0612A

$1.97
