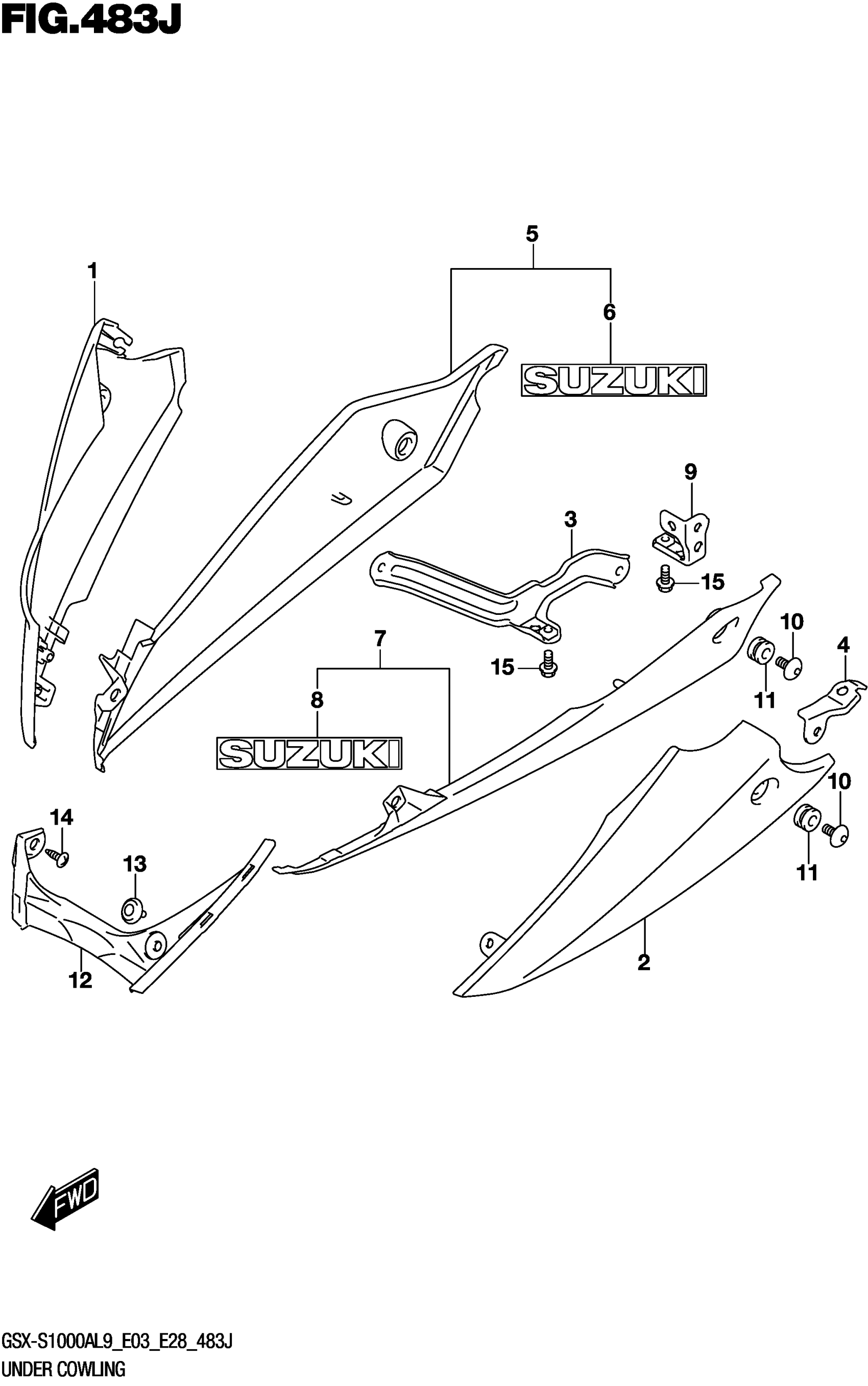

Suzuki GSX-S1000AL9 (2019) UNDER COWLING (GSX-S1000AZL9 E33) Diagram

COWLING,UNDER,R (BLACK)

94471-04K00-YKV

$319.17

COWLING,UNDER,L (BLACK)

94472-04K00-YKV

$319.17

BRACKET,UNDER COWL RH

94530-04K00

$56.73

BRACKET,UNDER COWL FR LH

94520-04K00

$24.17

COWLING, UNDER REAR RH (BLACK

94470-04K00-4TX

$332.93

.EMBLEM, "SUZUKI" (BLUE)

68181-04K00-YSF

$14.12

COWLING, UNDER REAR LH (BLACK

94480-04K00-4TX

$332.93

.EMBLEM, "SUZUKI" (BLUE)

68181-04K00-YSF

$14.12

BRACKET,UNDER COWL RR LH

94540-04K00

$13.60

BOLT (6X12)

09106-06117

$4.66

CUSHION (9X18X9.5)

09320-09016

$1.97

COWLING,UNDER CTR

94475-04K00

$20.45

CLIP

94479-35F00

$5.14

SCREW

03541-0516A

$1.37

BOLT

01550-0612A

$1.97
