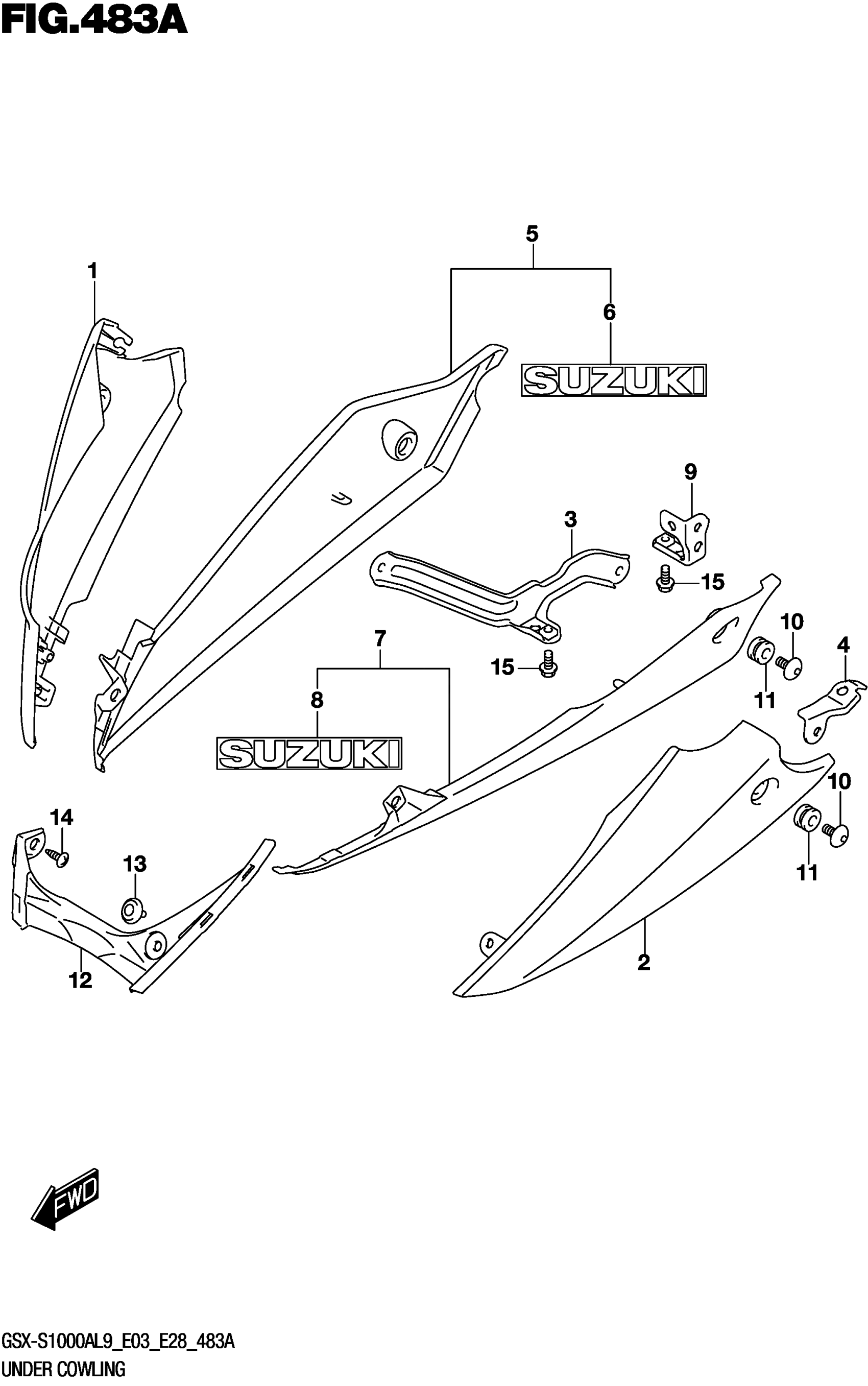

Suzuki GSX-S1000AL9 (2019) UNDER COWLING (GSX-S1000AL9 E03) Diagram

COWLING,UNDER,R (BLACK)

94471-04K00-YKV

$284.17

COWLING,UNDER,L (BLACK)

94472-04K00-YKV

$284.17

BRACKET,UNDER COWL RH

94530-04K00

$50.27

BRACKET,UNDER COWL FR LH

94520-04K00

$21.40

COWLING, UNDER REAR RH (BLUE)

94470-04K00-YSF

$317.60

.EMBLEM,"SUZUKI" (SILVER)

68181-04K00-YES

$12.73

COWLING, UNDER REAR LH (BLUE)

94480-04K00-YSF

$317.60

.EMBLEM,"SUZUKI" (SILVER)

68181-04K00-YES

$12.73

BRACKET,UNDER COWL RR LH

94540-04K00

$12.05

BOLT (6X12)

09106-06117

$5.10

CUSHION (9X18X9.5)

09320-09016

$1.97

COWLING,UNDER CTR

94475-04K00

$18.12

CLIP

94479-35F00

$5.62

SCREW

03541-0516A

$1.49

BOLT

01550-0612A

$1.97
