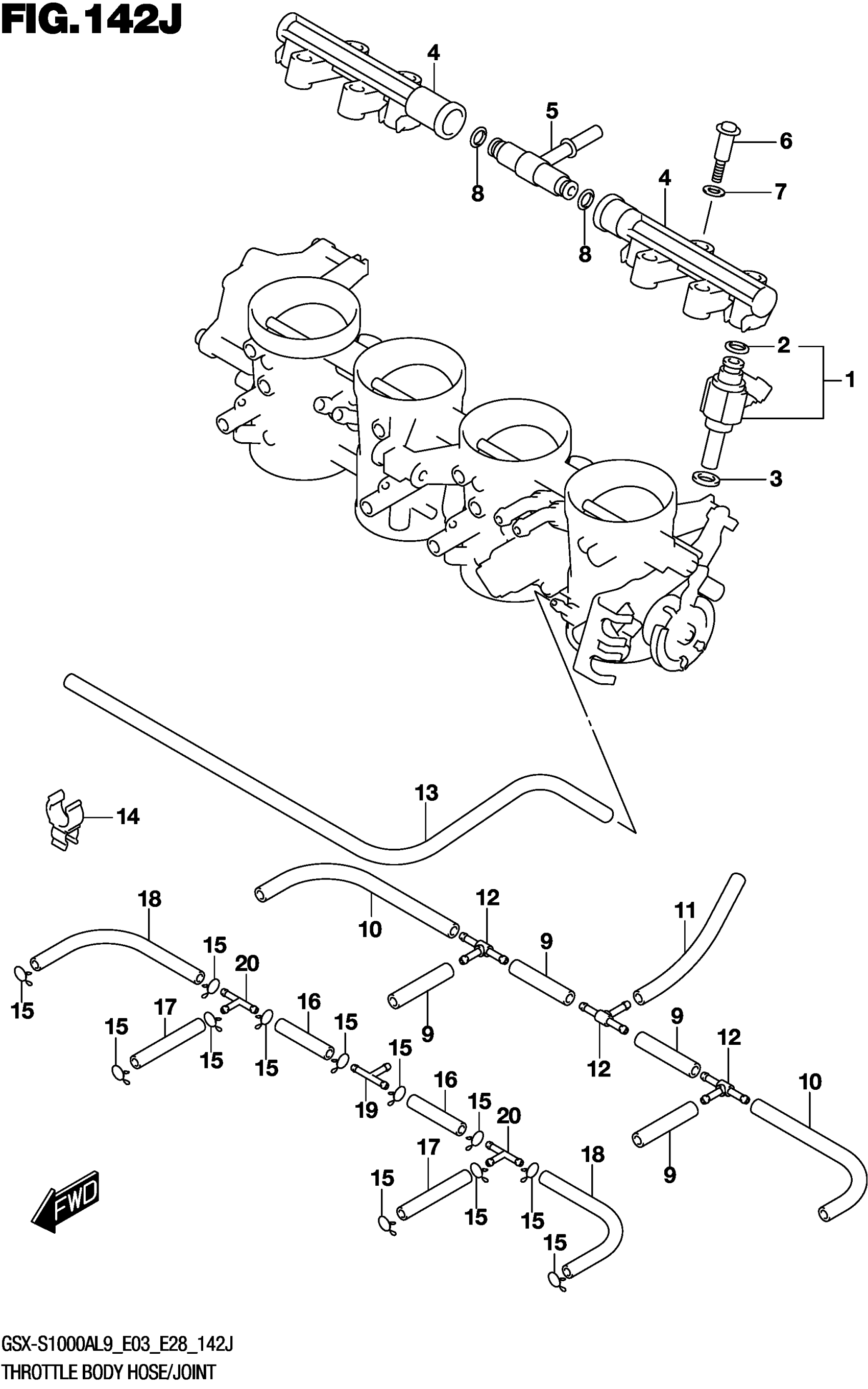

Suzuki GSX-S1000AL9 (2019) THROTTLE BODY HOSE/JOINT (GSX-S1000AZL9 E33) Diagram

#

Description
Price

1

INJECTOR ASSY

15710-04K00

$271.53

2

.O-RING

15717-58B00

$9.95

3

SEAL

15722-14J00

$11.36

4

PIPE,DELIVERY

13473-08J00

Unavailable

5

NIPPLE ASSY

13473-04K00

Unavailable

6

SCREW

13601-29G00

$3.43

7

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

8

O-RING

15721-08J00

$10.52

9

HOSE (7.4X3.2X35)

13681-39F00-035

Unavailable

10

HOSE (7.4X3.2X100)

13681-39F00-100

Unavailable

11

.HOSE (3X7X600) | L:600->135 This part replaces 09355-30705-600.

09355-30001-600

$8.56

12

3WAY,VACUUM HOSE

13685-02FA0

$7.05

13

HOSE (7.4X3.2X350)

13683-04K00

Unavailable

14

CLAMP

09408-00309

Unavailable

15

CLIP This part replaces 13671-12C00.

09401-06101

$2.03

16

HOSE (7.5X3.5X30)

13683-04K60

Unavailable

17

HOSE

13683-04K50

$12.60

18

HOSE (7.5X3.5X115)

13683-04K40

Unavailable

19

NIPPLE

13685-04F10

$11.07

20

3WAY,VACUUM HOSE

13685-02FA0

$7.05
