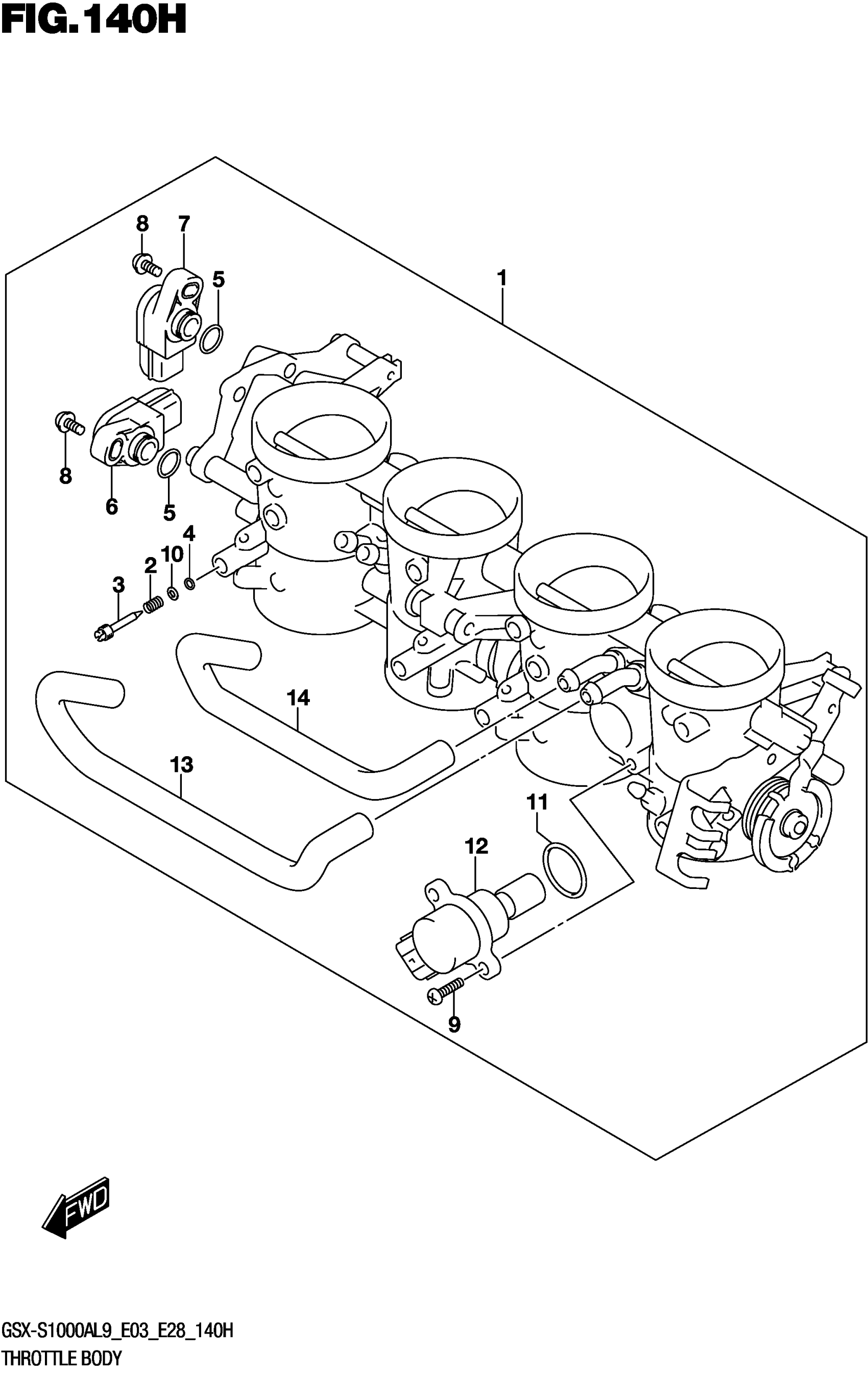

Suzuki GSX-S1000AL9 (2019) THROTTLE BODY (GSX-S1000AZL9 E28) Diagram

#

Description
Price

1

BODY ASSY, THROTTLE

13405-04K20

$1,448.77

2

SPRING,THROTTLE SCREW

13268-48700

$4.34

3

SCREW

13269-33E00

$11.10

4

O-RING This part replaces 13295-29900.

13295-29901

$4.34

5

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

6

.SENSOR

13580-14J00

$151.08

7

.SENSOR ASSY

13580-29G00

$119.65

8

.SCREW

13605-02F00

$3.71

9

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

10

WASHER

13606-47A00

$3.28

11

.O-RING

13679-37H00

$7.27

12

.MOTOR ASSY

18117-14J01

$392.00

13

.HOSE

13698-08J00

$42.43

14

.HOSE

13698-08J10

Unavailable
