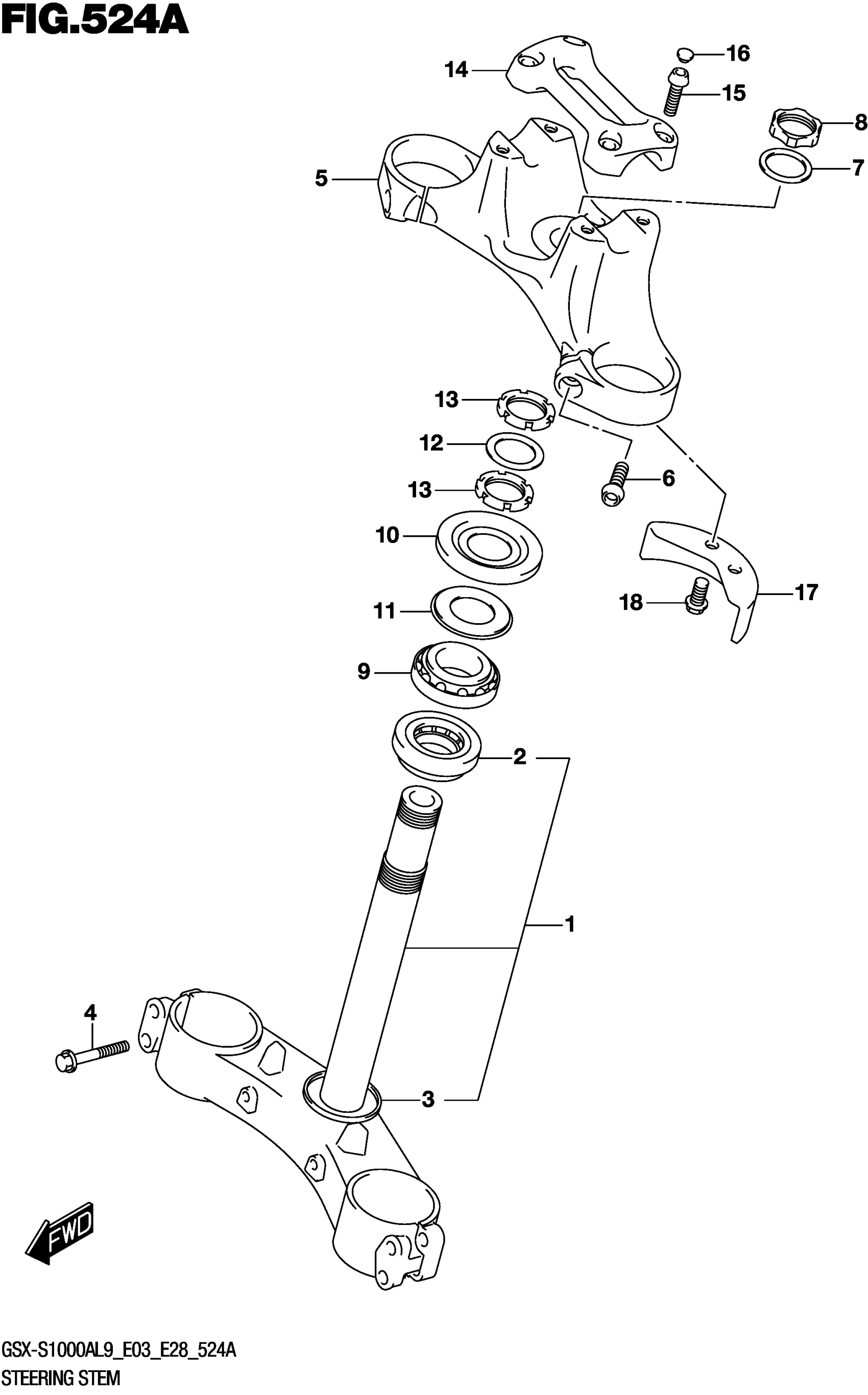

Suzuki GSX-S1000AL9 (2019) STEERING STEM Diagram

#

Description
Price

1

BRACKET,UNDER (BLACK)

51410-04K40-YTA

Unavailable

2

.BEARING (30X55X17)

09267-30010

$48.11

3

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

4

BOLT,AXLE STOPPER

51166-10G10

$5.38

5

BRACKET,UPPER (BLACK)

51311-04K00-YTA

$326.95

6

BOLT, BRACKET UPR

51328-46H00

$3.66

7

WASHER

51356-40F30

$5.78

8

NUT

51353-40F30

$45.37

9

.BEARING (30X55X17)

09267-30010

$48.11

10

COVER,STEERING UPR

51643-41G00

$8.71

11

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

12

WASHER,STEERING STEM

51641-33E00

$6.20

13

NUT,STEERING STEM

51631-33E00

$23.64

14

HOLDER,HANDLE (BLACK)

56211-04K00-YTA

$119.90

15

BOLT, BRACKET UPR

51328-46H00

$3.66

16

CAP (OD:10.5)

09250-06015

$2.76

17

PLATE, STEERING LOCK

51911-04K00

$10.83

18

BOLT (8X16)

09103-08351

$3.23
