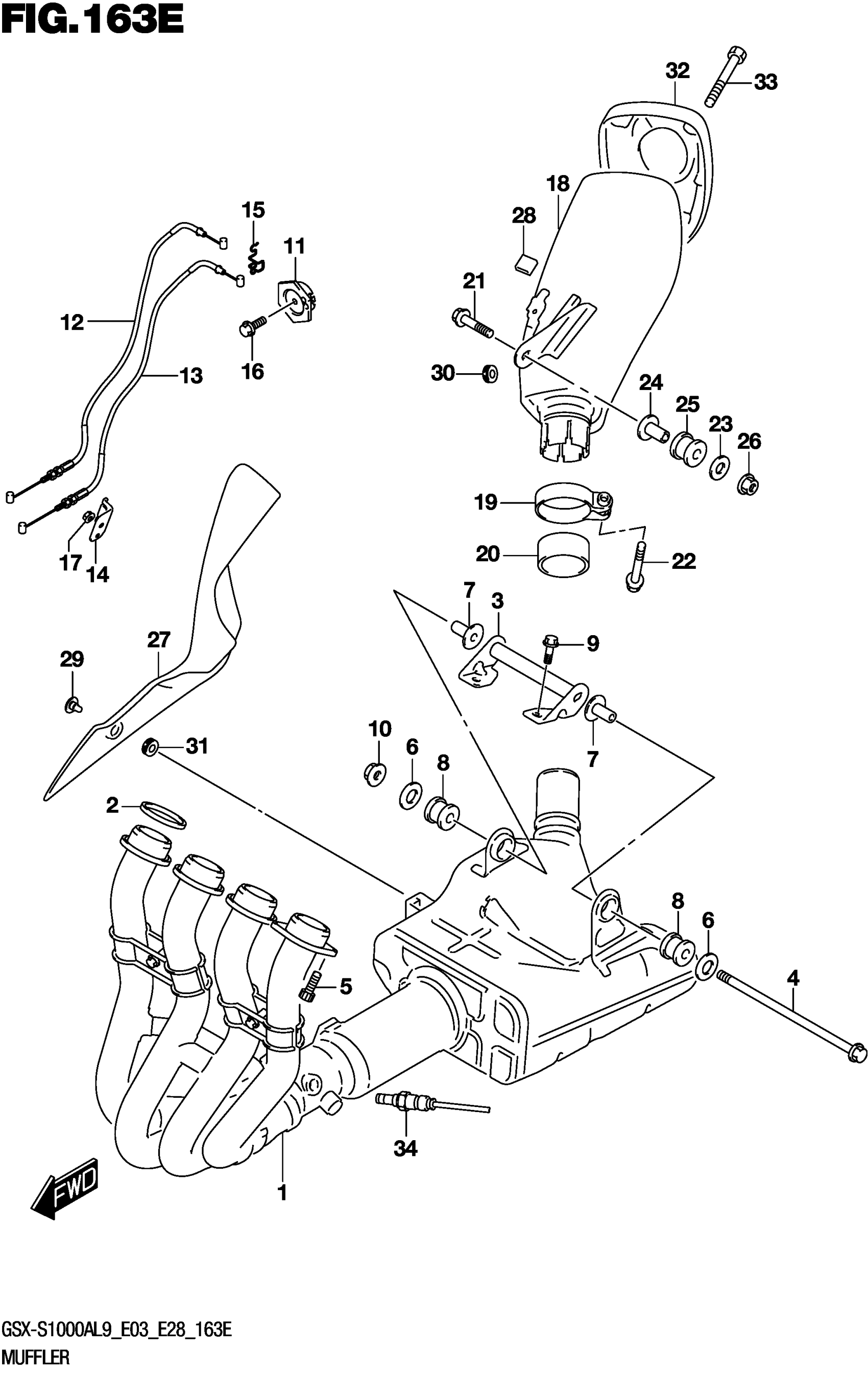

Suzuki GSX-S1000AL9 (2019) MUFFLER (GSX-S1000YAL9 E28) Diagram

#

Description
Price

1

EXHAUST

14100-04K10

$2,106.72

2

.GASKET,EXHAUST PIPE

14181-04K00

$7.59

3

BRACKET, EXH SPRT

14770-04K00

$29.50

4

BOLT (8X200)

09103-08464

$12.15

5

BOLT (8X25)

09106-08178

$2.97

6

WASHER (8.5X30X2.3)

09160-08503

$2.53

7

SPACER (8.6X12X24.2)

09180-08152

$5.26

8

CUSHION (12X30X24)

09320-12077

$10.78

9

BOLT (8X20)

09135-08007

$3.18

10

NUT

08316-1008A

$2.47

11

PULLEY,CONTROLLER

11269-18G01

$32.50

12

CABLE, EXH VALVE NO.1

11276-04K00

$58.45

13

CABLE, EXH VALVE NO.2

11277-04K00

$58.45

14

BRACKET,EXHAUST VALVE CABLE

14250-21H00

$11.18

15

GUIDE,EXHAUST VALVE CABLE

14252-14J00

$8.32

16

BOLT

01547-0516A

$1.68

17

NUT (6X12)

08316-1006A

$2.19

18

BODY, MUFFLER

14310-04K00-H01

$545.02

19

CLAMP,MUF CONN

14459-21H30

$33.12

20

CONNECTOR,JT

14771-42F40

$29.28

21

BOLT (8X45)

09106-08164

$6.95

22

BOLT (8X40)

09106-08162

$5.17

23

WASHER (8.5X30X2.3)

09160-08503

$2.53

24

SPACER (8.6X12X24.2)

09180-08152

$5.26

25

CUSHION (12X30X24)

09320-12048

$4.62

26

NUT

08316-1008A

$2.47

27

COVER, MUFFLER FRONT

14780-04K00

$256.22

28

GROMMET

14795-10FA0

$5.26

29

SCREW (6X12)

09139-06124

$4.92

30

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$2.00

31

CUSHION (8.4X18X6)

09320-08066

$7.44

32

COVER, MUF RR This part replaces 14791-04K10.

14791-04K12

$97.02

33

BOLT (6X15) This part replaces 09106-06069.

09106-06078

$3.67

34

SENSOR,OXYGEN

18213-04K00

$351.27
