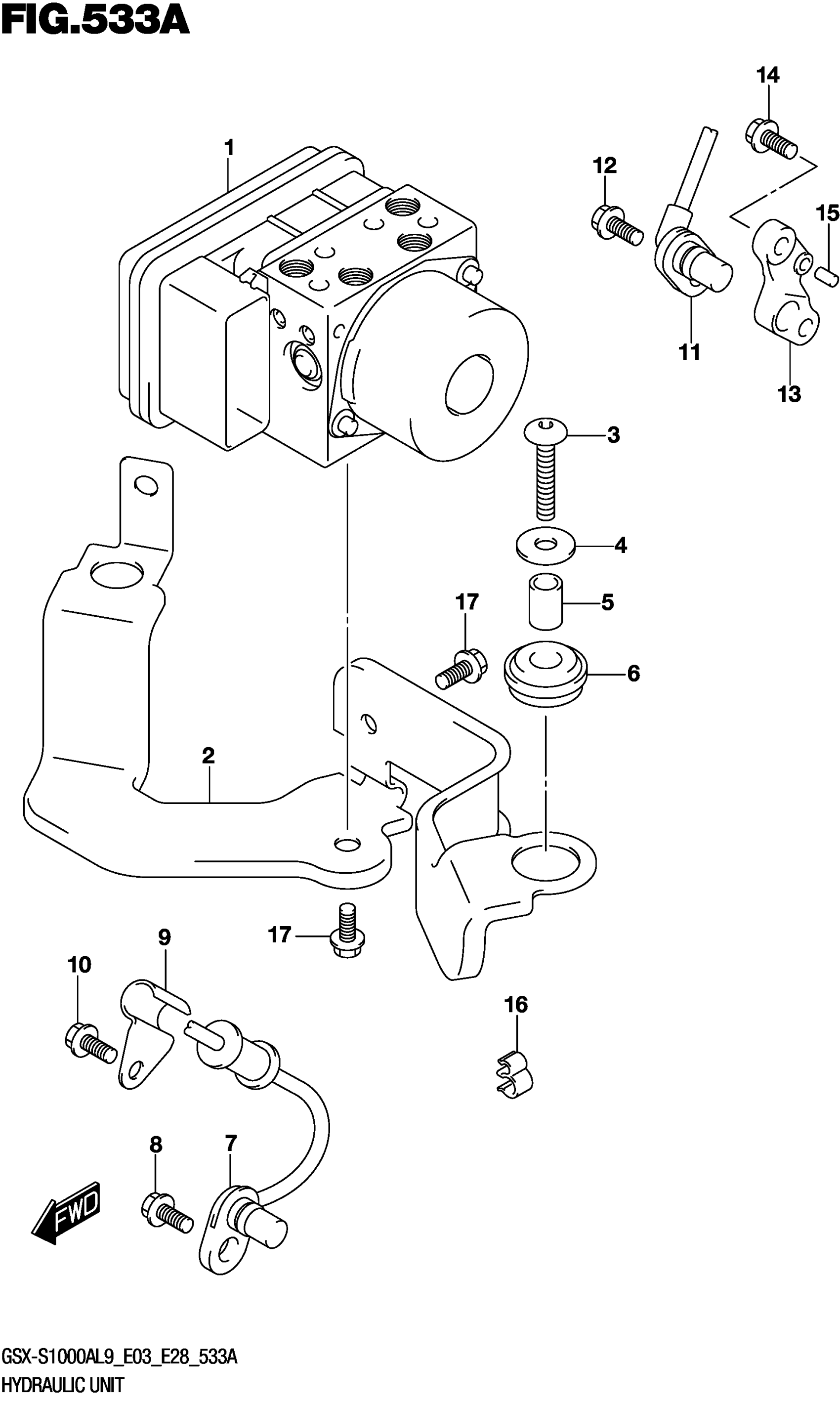

Suzuki GSX-S1000AL9 (2019) HYDRAULIC UNIT Diagram

#

Description
Price

1

UNIT ASSY,HYDRAULIC ABS

55610-04K00

$1,379.60

2

HOLDER, HYDR UNIT ABS

55660-04K00

Unavailable

3

SCREW (6X30)

09139-06065-XC0

$2.96

4

.WASHER (6.5X20X1.6)

09160-06088

$1.65

5

SPACER,HYDR UNIT MTG (#05)

55662-10G00

Unavailable

6

RUBBER, HYDR UNIT MTG

55663-10G10

Unavailable

7

SENSOR, FR WHEEL ABS

55710-04K10

$185.13

8

BOLT

01547-0612A

$2.03

9

CLAMP,ABS SENSOR FR

55731-23H00

Unavailable

10

BOLT

01547-0612A

$2.03

11

SENSOR,RR WHEEL ABS

65710-04K10

$66.07

12

BOLT

01547-0612A

$2.03

13

BRACKET, SPEED SENSOR RR

65721-04K00

$19.45

14

BOLT (6X16)

09103-06240

$3.08

15

PIN (4X13.8)

04221-04089

$1.49

16

CLAMP

09408-00266

$2.51

17

BOLT

01547-0610A

$2.45
