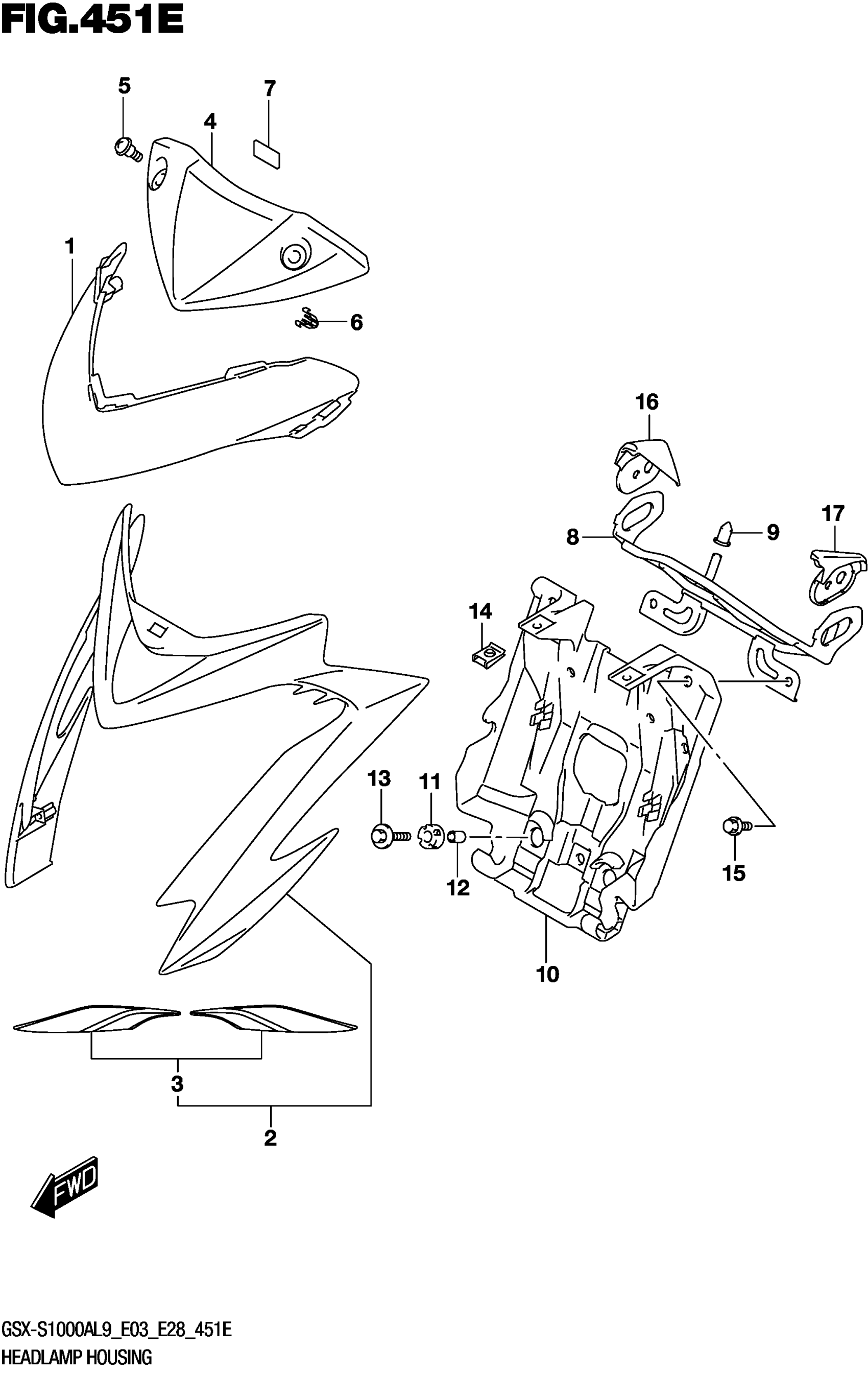

Suzuki GSX-S1000AL9 (2019) HEADLAMP HOUSING (GSX-S1000YAL9 E28) Diagram

COVER,HEADLAMP FRONT (BLACK)

51831-04K00-YKV

$105.83

COVER,HEADLAMP FRONT (BLACK)

51831-04K00-YKV

$105.83

COVER, HEADLAMP UPPER (BLUE)

51820-04K10-YSF

Unavailable

COVER, HEADLAMP UPPER (WHITE)

51820-04K10-YWW

$197.75

.TAPE SET, HEADLAMP COVER | FOR YSF

68210-04K10-A3F

$40.22

.TAPE SET, HEADLAMP COVER | FOR YWW

68210-04K10-BVC

$40.22

COVER,METER

51811-04K00

$35.30

SCREW (5X13)

09139-05503

$2.71

CLIP (10.5X14.3)

09409-08326

$2.45

CUSHION (10X30X6)

33652-47F00

$3.38

BRACE,METER

51850-04K10

$96.95

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.80

COVER,HEADLAMP REAR

51841-04K00

$34.98

CUSHION

09320-09010

$2.80

SPACER (6.5X9X10)

09180-06307

$2.80

BOLT (6X25)

09116-06131

$1.68

NUT

09148-06020

$4.01

BOLT (6X12)

09111-06107

$2.66

COVER,HEADLAMP REAR RH

51842-04K00

$14.63

COVER,HEADLAMP REAR LH

51843-04K00

$18.07
