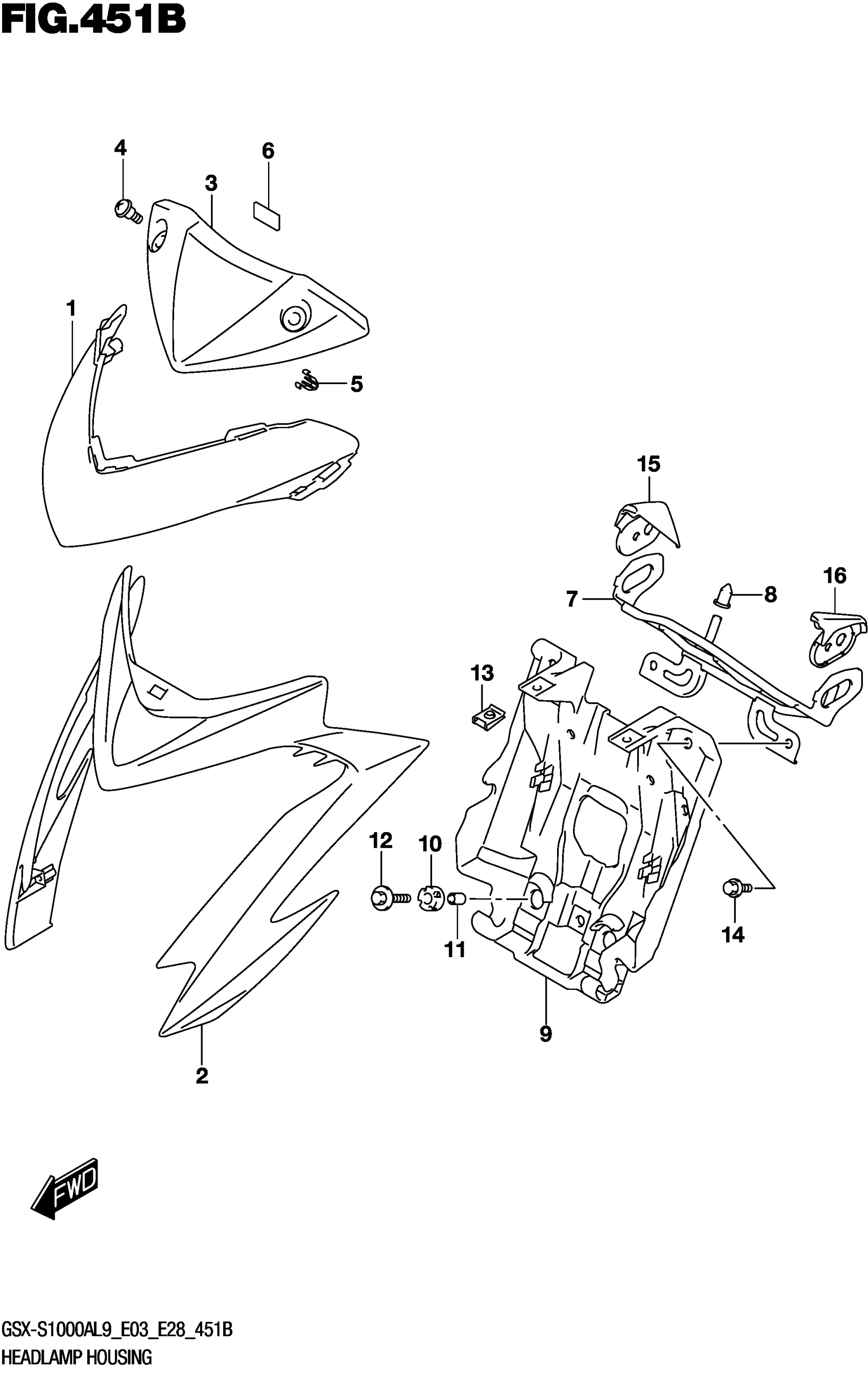

Suzuki GSX-S1000AL9 (2019) HEADLAMP HOUSING (GSX-S1000AL9 E28) Diagram

#

Description
Price

1

COVER,HEADLAMP FRONT (BLACK)

51831-04K00-YKV

$94.22

1

COVER,HEADLAMP FRONT (BLACK)

51831-04K00-YKV

$94.22

2

COVER,HEADLAMP (BLUE)

51821-04K00-YSF

$157.23

3

COVER,METER

51811-04K00

$31.28

4

SCREW (5X13)

09139-05503

$2.69

5

CLIP (10.5X14.3)

09409-08326

$2.48

6

CUSHION (10X30X6)

33652-47F00

$3.70

7

BRACE,METER

51850-04K10

$86.32

8

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.94

9

COVER,HEADLAMP REAR

51841-04K00

$37.15

10

CUSHION

09320-09010

$2.84

11

SPACER (6.5X9X10)

09180-06307

$3.05

12

BOLT (6X25)

09116-06131

$2.36

13

NUT

09148-06020

$4.38

14

BOLT (6X12)

09111-06107

$2.60

15

COVER,HEADLAMP REAR RH

51842-04K00

$12.97

16

COVER,HEADLAMP REAR LH

51843-04K00

$16.00
