Description

Price

1

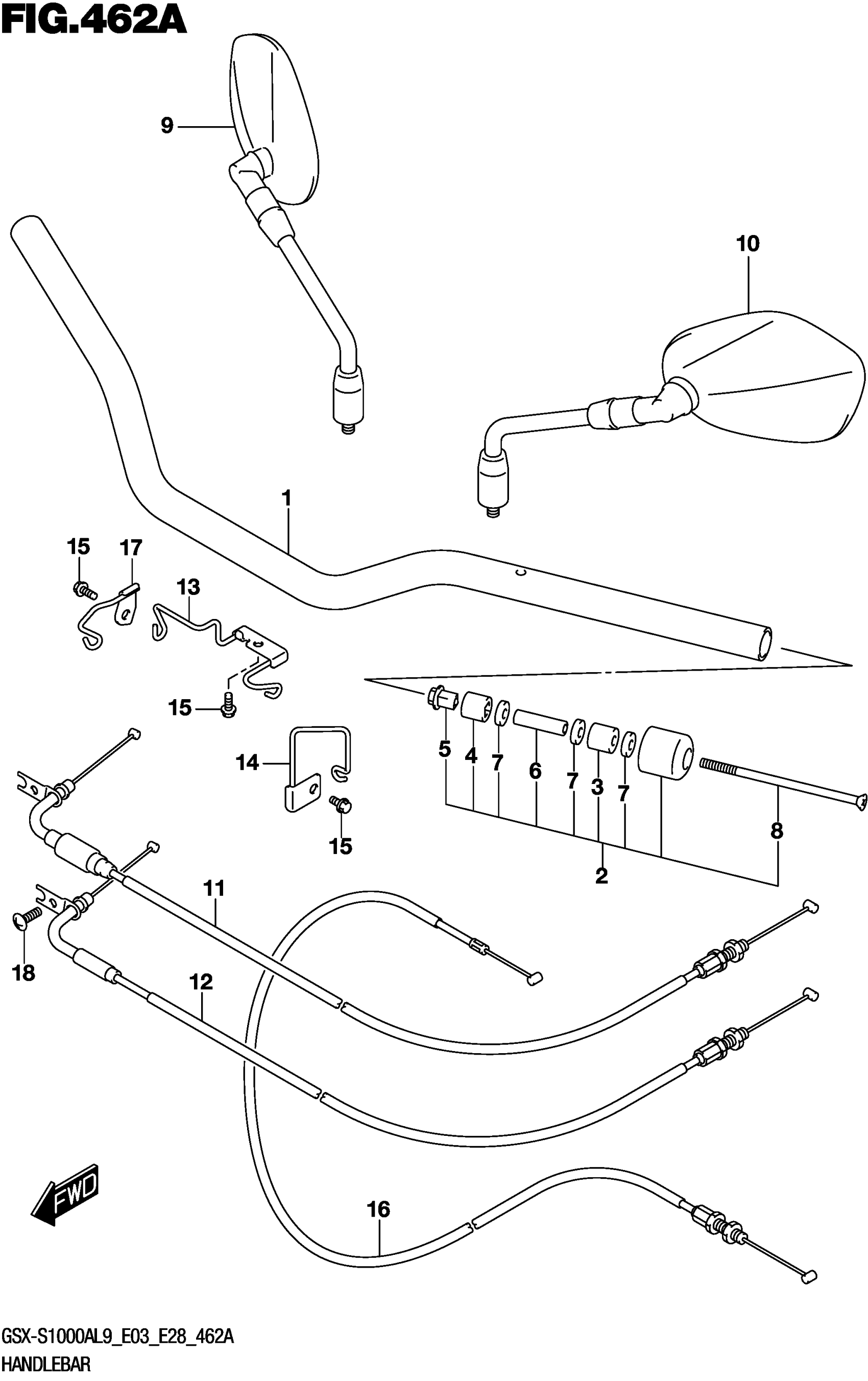

HANDLEBAR

56111-04K10

$565.13

2

BALANCER SET,HA This part replaces 56200-03860.

56200-03861

$32.86

3

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

4

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

5

.NUT,HANDLE BALANCER

56273-10G10

$8.65

6

SPACER (6.5X9X34)

09180-06356

$4.68

7

.WASHER (6.5X16X4)

09160-06131

$2.50

8

.SCREW (6X110)

09127-06018

$3.38

9

MIRROR ASSY,REAR VIEW,R This part replaces 56500-08J11.

56500-08J12

$116.17

10

MIRROR ASSY,REAR VIEW,L This part replaces 56600-08J11.

56600-08J12

$111.82

11

CABLE ASSY,THROTTLE NO.1

58300-04KA0

$27.80

12

CABLE ASSY, THROTTLE NO.2

58300-04K11

Unavailable

13

GUIDE,CABLE NO.1

58620-04K00

$23.78

14

GUIDE,CABLE NO.2

58630-04K00

$12.73

15

BOLT

01547-0612B

$1.49

16

CABLE ASSY,CLUTCH This part replaces 58200-04K00.

58200-04K01

$33.83

17

GUIDE, CLUTCH CABLE

58640-04K00
