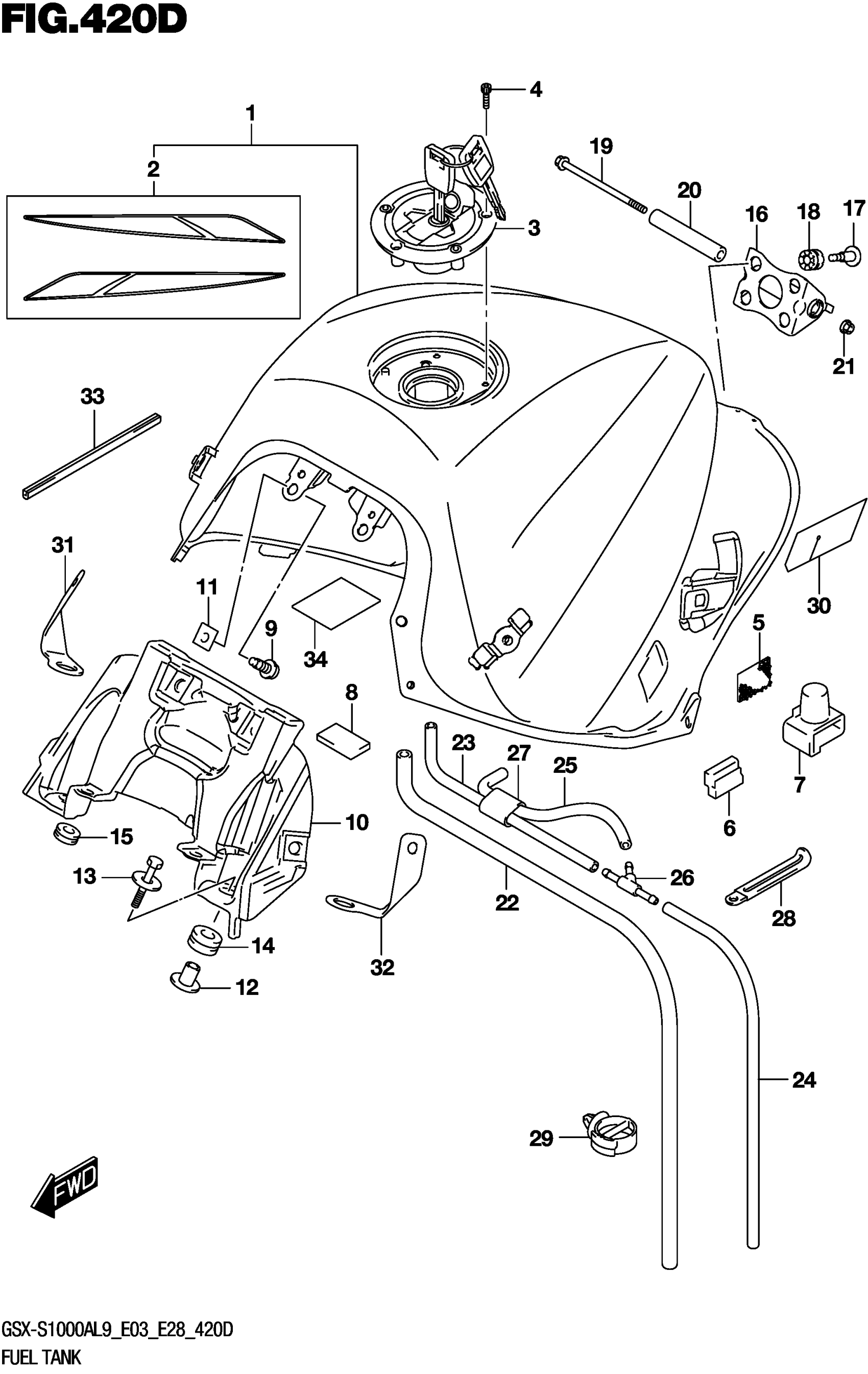

Suzuki GSX-S1000AL9 (2019) FUEL TANK (GSX-S1000YAL9 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-04K60-YSF

Unavailable

1-2

TANK ASSY, FUEL (WHITE)

44100-04K60-YWW

$1,335.35

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-04K10-A3F

$64.70

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-04K10-BVC

$64.70

3

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

FASTENER (33X25X2.6)

44572-13G00

$10.13

6

CUSHION, FUEL TANK SIDE

44541-41G00

$5.47

7

CUSHION, FUEL TANK REAR This part replaces 44542-04K00.

44542-04K01

$10.00

8

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

9

SCREW, FUEL TANK FRONT BRKT

44543-04K00

Unavailable

10

BRACKET, FUEL TANK FRONT

44521-04K00

$106.70

11

NUT (M6)

44523-47H00

$13.30

12

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

13

BOLT (6X30)

09116-06172

$2.50

14

CUSHION (10X22X13)

09320-10050

$3.07

15

CUSHION (6X18X6)

09320-06504

$4.47

16

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

17

SCREW (6X24)

09139-06203

Unavailable

18

CUSHION (8X18X16)

09320-08089

Unavailable

19

BOLT (6X100)

09103-06060

$2.61

20

SPACER,FUEL TANK RR

44561-18G00

$15.52

21

NUT (M6)

09159-06076

$2.80

22

HOSE, FUEL TANK DRAIN NO.1

44423-04K01

Unavailable

23

HOSE, FUEL TANK BRTHR NO.1

44424-04K01

$11.72

24

HOSE (5X8.2X530)

09352-50005-530

Unavailable

25

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

26

3 WAY

09367-06007

$3.17

27

HOSE

09352-12164-010

Unavailable

28

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

29

CLAMP

09403-20307

Unavailable

30

PROTECTOR, FUEL TANK

44283-06J00

$6.90

31

BRACKET, FUEL TANK FRONT RH

44561-04K00

$10.68

32

BRACKET, FUEL TANK FRONT LH

44571-04K00

$10.68

33

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

34

CUSHION,FUEL TANK

44281-04K00

$6.08
