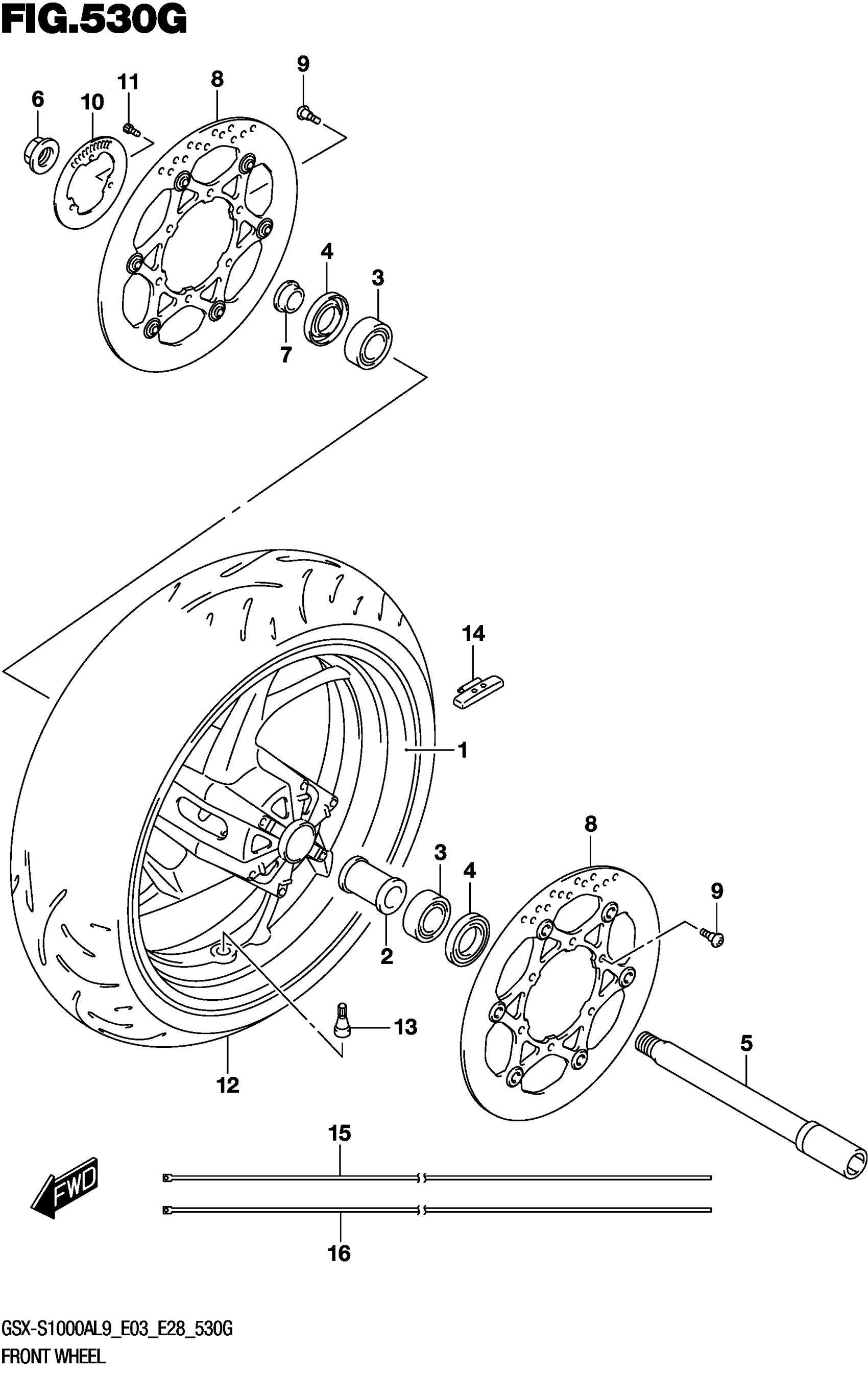

Suzuki GSX-S1000AL9 (2019) FRONT WHEEL (GSX-S1000AZL9 E03) Diagram

#

Description
Price

1

WHEEL,FRONT (17M/CXMT3.50,BLA This part replaces 54111-04K02-019.

54111-04K30-019

$827.93

1

WHEEL,FRONT (17M/CXMT3.50,BLA This part replaces 54111-04K02-019.

54111-04K30-019

$827.93

2

SPACER,FR HUB BEARING

54731-14J00

$19.75

3

BEARING This part replaces 09262-22035.

09262-22049

$39.53

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$8.24

5

AXLE,FR

54711-14J00

$160.82

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$39.56

7

SPACER,FR AXLE,L

54751-14J00

$16.79

8

DISC, FRONT BRAKE

59210-04K00

$367.77

9

BOLT (6X21)

09106-06124

$3.08

10

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

11

BOLT

07130-0512A

$2.19

12

TIRE,FR(120/70R | D214F M T/L(R) This part replaces 55110-04K00.

55110-04K02

$288.95

12

TIRE,FR(120/70R | DUNLOP This part replaces 55110-04K00.

55110-04K02

$288.95

13

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

14-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

14-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

14-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

15

TAPE, WHEEL RH

68251-04K00-BUM

$68.72

16

TAPE, WHEEL LH

68252-04K00-BUM

$68.72
