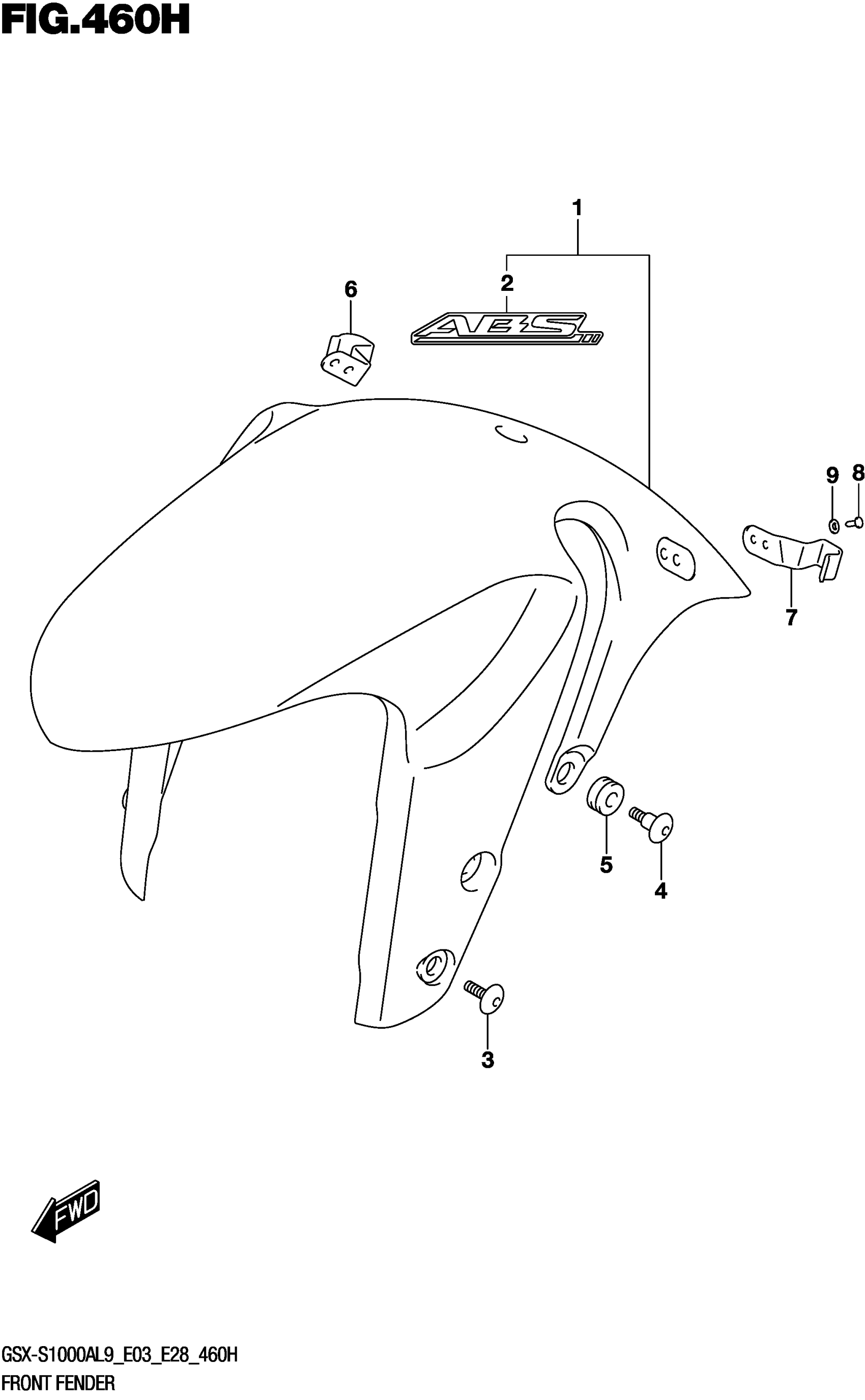

Suzuki GSX-S1000AL9 (2019) FRONT FENDER (GSX-S1000AZL9 E28) Diagram

#

Description

Price

1

FENDER ASSY,FRONT (BLACK) This part replaces 53100-04K50-YKV.

53100-04K51-YKV

$213.17

2

.EMBLEM,ABS (GRAY,BLACK) This part replaces 68151-44G10-GWM.

68151-44G11-GWM

$13.92

3

SCREW (6X16) | FRONT

09139-06169

$2.88

4

SCREW (6X20) | REAR

09139-06190

$3.89

5

CUSHION (9X18X9.5) | REAR

09320-09016

$2.01

6

CLAMP, BRAKE HOSE RH

53117-04K00

$5.65

7

CLAMP, BRAKE HOSE LH

53118-04K00

$5.65

8

RIVET

09229-04038

$0.52

9

WASHER

08322-0104B

$0.25
